Classic Retro USB Phonograph/Turntable
With Aux-In Jack
:
MODEL PVNTT1
Operating Instructions Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vintage PVNTT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pyle Pro Vintage PVNTT1

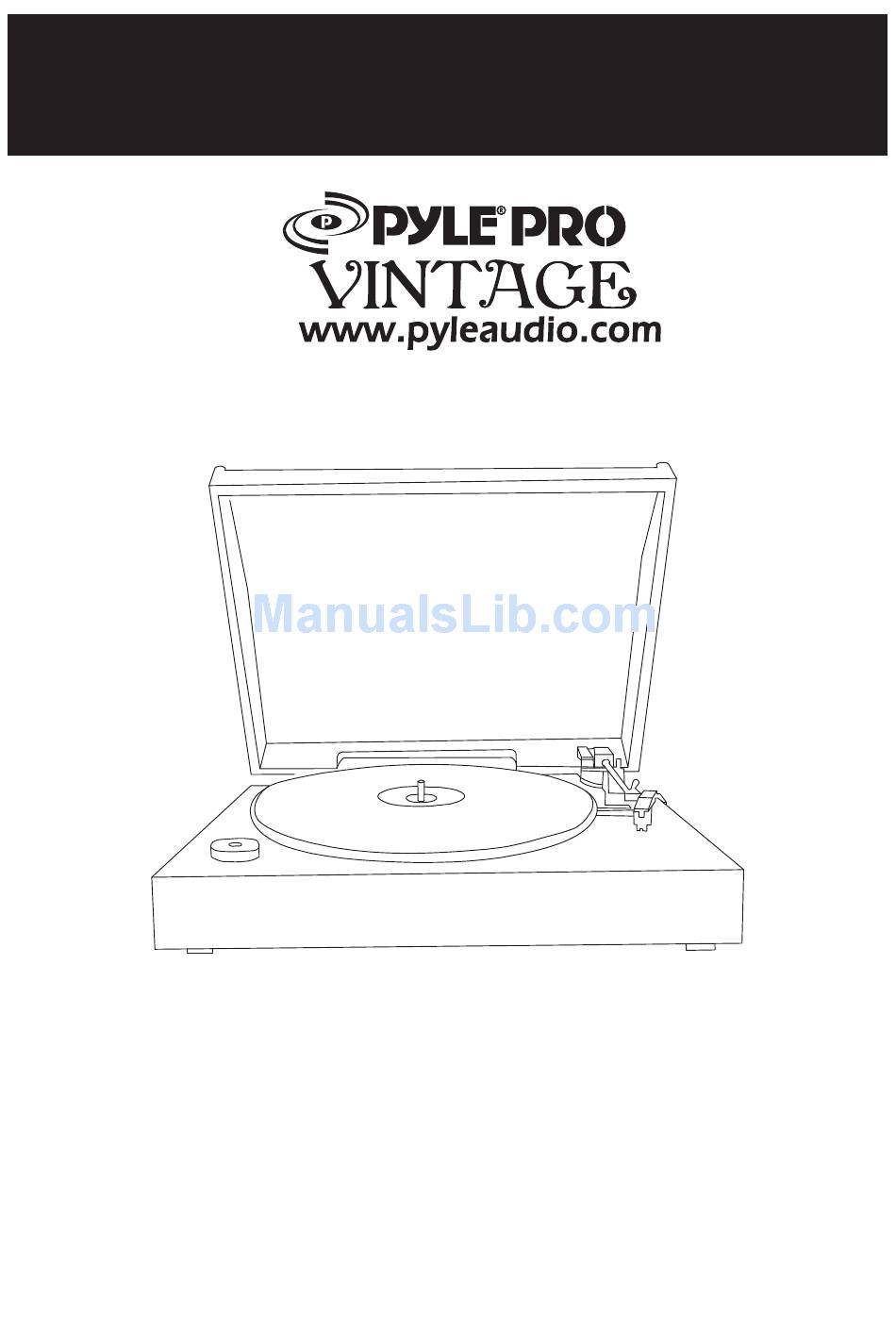

  • Page 1 Classic Retro USB Phonograph/Turntable With Aux-In Jack MODEL PVNTT1 Operating Instructions Manual...
  • Page 2: Important Safety Instructions

    CAUTION TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The exclamation point within WARNING:TOREDUCETHE RISK OF ELECTRIC SHOCK...
  • Page 3: Preparation For Use

    PREPARATION FOR USE UNPACKING AND SET UP Carefully remove the unit from the display carton and remove all packing material from the unit. Unwind the AC power plug and extend it to its full length. Place the unit on a stable, level surface, convenient to an AC outlet, out of direct sunlight, and away from sources of excess heat, dust, moisture, humidity, or strong magnetic fields.
  • Page 4: Power Source

    Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it in the direction of the arrow. TONE ARM LOCK LEVER Discard the stylus cover. Remove the twist-tie that was used to secure the tone arm during shipment. STYLUS COVER Release the tone arm lock lever.
  • Page 5: Front Panel

    FRONT PANEL PHONOGRAPH LID 2) TURNTABLE TONE ARM PC-USB SLOT PH-AUX SWITCH AUX IN SOCKET(L/R) LINE OUT SOCKET(L/R) 8) AC POWER LINE PLUG...
  • Page 6: Aux In Operation

    PHONOGRAPH 1) Turntable. 2) 45 RPM Adapter. 3) Transit Screw. 4) Cue Lever. 5) Speed Selector (33 &45 &78 RPM). 6) Tone Arm Lock. 7) Tone Arm with Stylus. AUX IN OPERATION 1) Set the PH-AUX switch to AUX position. Rotate the volume control to desert level.
  • Page 7 PLAYING TURNTABLE This system includes a full-size, 3-speed, belt-drive turntable. You can play RPM records. Set the PC-AUX switch to PH position. Insert the PC-USB line into the Computer. Rotate the volume control to desert level. Make sure that you have removed the stylus cover from the stylus and have released the Tone Arm Lock that secured the tone arm to the tone arm rest.
  • Page 8 AUX IN/PHONO RECORDING 、 Set the PH-AUX switch to PH or AUX in position, playback the tacks on the AUX or PHONO. 、 Install the Audacity software using the included disc. 、 3 Set the computer before record: 1) Set the volume control attribute record(R) mixer:AK5371...
  • Page 9 Audacity and USB Connection It supports Window 95 / Window XP/Window 7/Vista or more advanced version, with the EMS memory more than 128MB and Audacity takes space of 5MB. INSTRUCTION FOR PC RECORDING 1. Software installation 1.1) Insert the CD disk into drive of PC,and read it; "...
  • Page 10 “ ” 1.4) Press next to go forward; 1.5)Choose the desitination location, and press to go forward;...
  • Page 11 “ ” 1.6) Press next to go forward; “ ” 1.7) Waitting for installation finished, and press finish to end the installation; 1.8)Choose the language as user’s need;...
  • Page 12 2. Recording: 2.1) Open the software; “ ” “ ” 2.2) Choose Edit menu,then choose Preferences ; 2.3.Audacity Preferences...
  • Page 13 NOTE: you need to check your computer audio properties,the “ sound recording should be selected sss usb Audio Device” as below. 2.4. Adjust the output and input volume. Output Volume Input Volume 2.5.Select the record button • to record the disc, the left and right tracks will show on the interface;...
  • Page 14 2.5.1 Press this button •,start recording. 2.5.2 Click the button to skip to start; 2.5.3 Click the button to skip to end; 2.5.4 Click the button to play; 2.5.5 Click the button to pause the record play, 2.5.6 Click the button to stop the recording.
  • Page 15 3.3) After opened, it will come to the following menu, click"YES" to go to "Llame-enc. dll", and find the file"s Iocation. 3.4)After you find the"lame-enc.dl"file,open it and dick "Y" to finish the installation.
  • Page 16 THE TURNTABLE DRIVE BELT IS FACTORY FITTED – THE TURNTABLE DRIVE BELT IS FACTORY FITTED – USE THESE INSTRUCTIONS ONLY IF THE TURNTABLE USE THESE INSTRUCTIONS ONLY IF THE TURNTABLE FAILS TO REVOLVE..FAILS TO REVOLVE..S T E P 1 Use a screwdriver to remove the black iron C-clip and lift the turntable off the phonograph mechanism.
