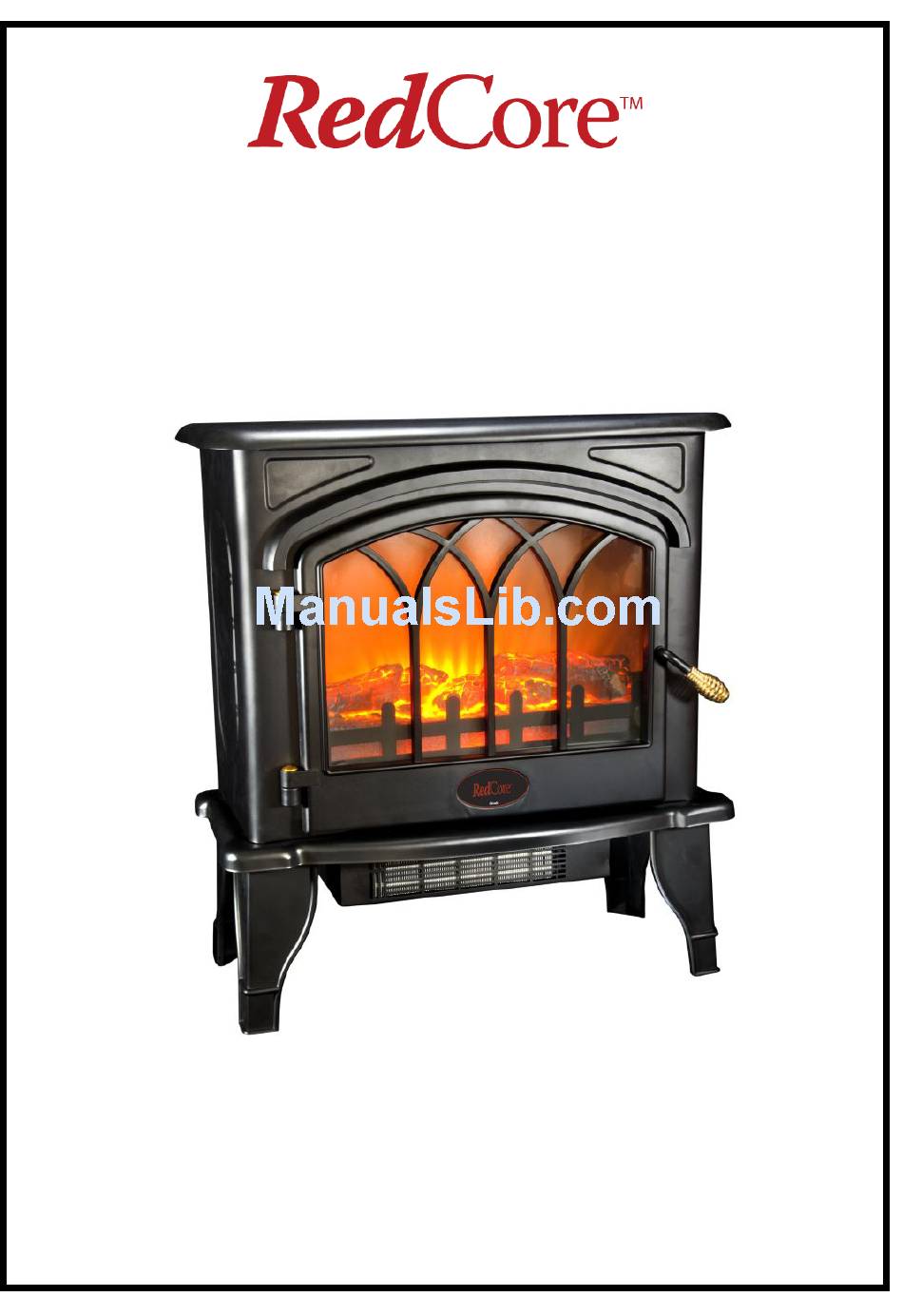

- Page 1 Concept S-2 Indoor Infrared Stove Heater RedCore Stove Heater 20110601...
- Page 2 CUSTOMER SUPPORT DO NOT RETURN THIS PRODUCT TO THE STORE WHERE YOU BOUGHT IT FOR IMMEDIATE CUSTOMER SERVICE, PLEASE CALL: 888-4BGT HEAT (888-424-8432) A CUSTOMER SERVICE REPRESENTATIVE WILL ASSIST YOU WITH ANY QUESTIONS REGARDING YOUR CONCEPT S-2 STOVE HEATER...

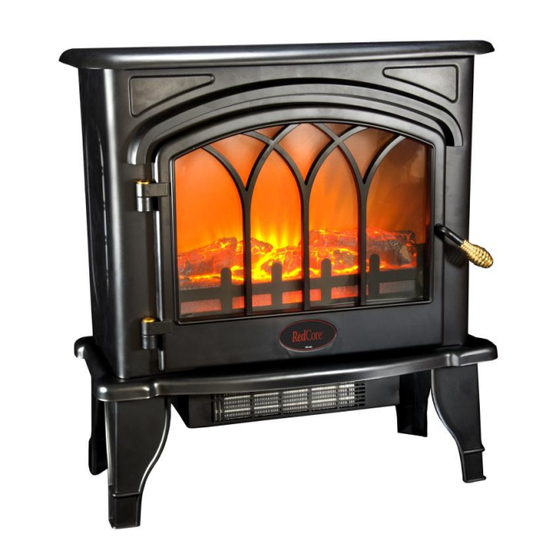

- Page 3 The RedCore™ Concept S-2 Infrared Stove Heater is a durable room heater that produces soft infrared heating that will keep you comfortable and help you reduce energy bills.
- Page 4 CAUTION!! WARNING 1: WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS. WARNING 2: RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE. WARNING 3: HEATER MAY BE HOT TO THE TOUCH WHEN IN USE. DO NOT TOUCH AREA NEAR HEATER ELEMENT WHEN HEATER IS OPERATING.
- Page 5 8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over. 9.
- Page 6 periodically for signs of overheating or deformations of the plug. If any overheating or deformation is present, immediately discontinue using the receptacle and contact a qualified electrician 19. CAUTION: To prevent electric shock, match wide blade of plug to wide slot of receptacle and insert completely.
- Page 7 LEG ASSEMBLY Before using your stove heater, please install the legs as shown in diagram below. After installing the legs, if you feel the heater is uneven, check to make sure the legs are resting on a flat, stable surface. If the heater is still unven, use the small adhesive stickers provided in the shipping carton to adjust the legs.
- Page 8 OPERATION Controls and switches are located on front panel inside the glass door. POWER: Press this button into the I position for main power and flame effect. The indicator light will turn on. See below for other control switches. LOW HEAT: For low infrared heat function (1000 Watts), press this switch while the Power switch is in the I position for low heat.
- Page 9 IMPORTANT: The heat output is controlled by the thermostat, according to the room temperature. Set the thermostat dial fully clockwise to the maximum position initially. When the room is warm enough, reduce the setting by slowly turning the thermo- stat dial counter-clockwise until the heater “clicks.” This will then maintain the room temperature at the desired level.
- Page 10 FLAME EFFECT The flame effect is created with the use of a 40 watt B-10 candelabra light bulb with an E-12 (small) socket base. The light bulb will have to be replaced from time to time when it burns out. During normal operation, the stove heater will always give you simulated flame function.
- Page 11 WARNING: Disconnect power and unplug the power cord before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or personal injury. The bulbs in your unit can become extremely hot. Allow at least ten (10) minutes between turning off the unit and removing the light bulbs to avoid the accidental burning of the skin.
- Page 12 PTC ceramic heating element for lifetime of product. Should your RedCore™ room heater prove defective within one year from the date of purchase, please follow our return procedure to return the defective unit. Within the first 30 days, BGT is responsible for the freight cost to and from our authorized service center for all units with a BGT authorized RMA.
- Page 13 THIS WARRANTY DOES NOT COVER: Damage, accidental or otherwise, to the unit while in the possession of the consumer not caused by a defect in material or workmanship. Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions in the instructions.
- Page 14 CUSTOMER SUPPORT DO NOT RETURN THIS PRODUCT TO THE STORE WHERE YOU BOUGHT IT FOR IMMEDIATE CUSTOMER SERVICE, PLEASE CALL: 888-4BGT HEAT (888-424-8432) A CUSTOMER SERVICE REPRESENTATIVE WILL ASSIST YOU WITH ANY QUESTIONS REGARDING YOUR CONCEPT S-2 STOVE HEATER www.redcoreheaters.com...
