Summary of Contents for RedCore CONCEPT R-2

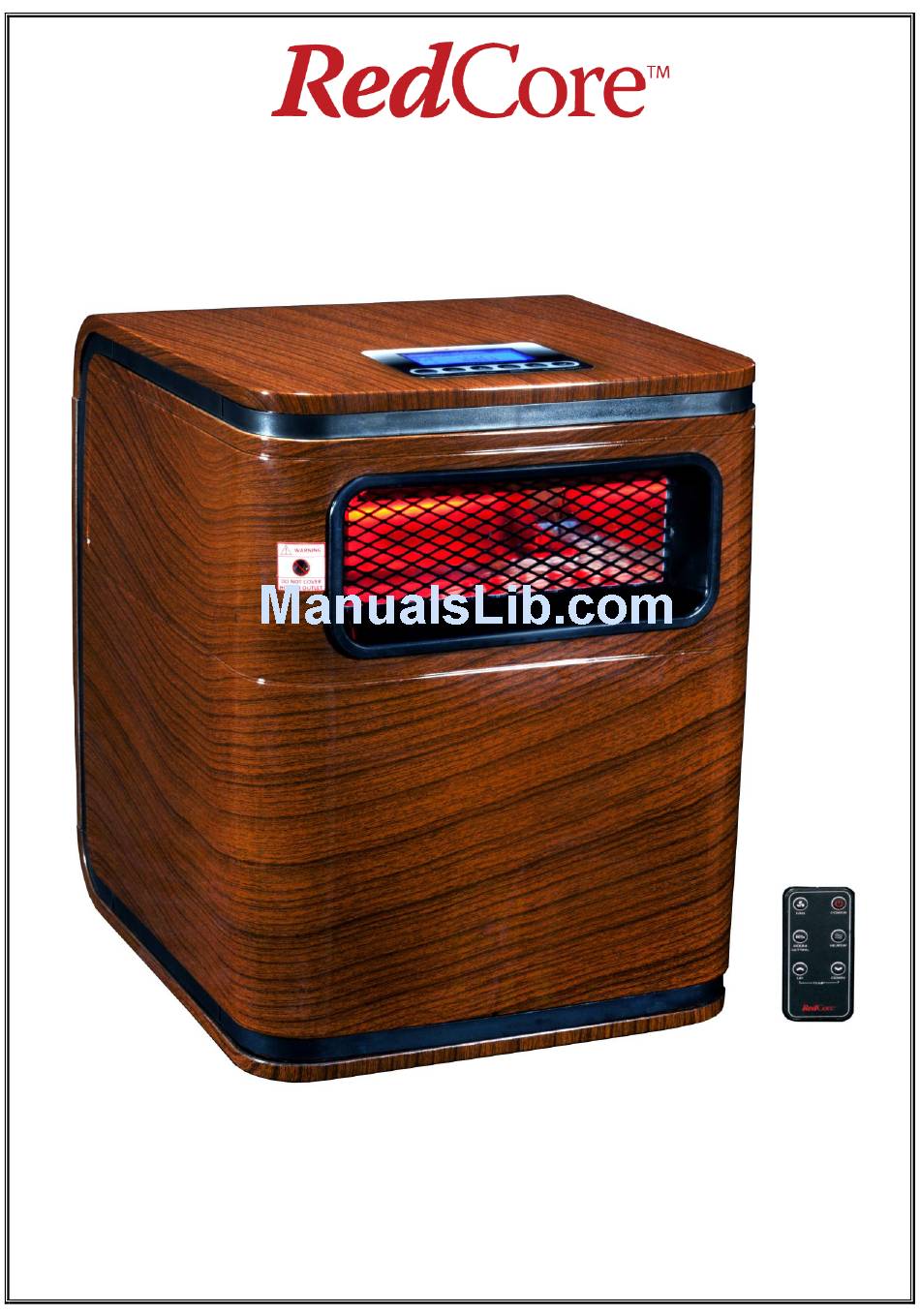

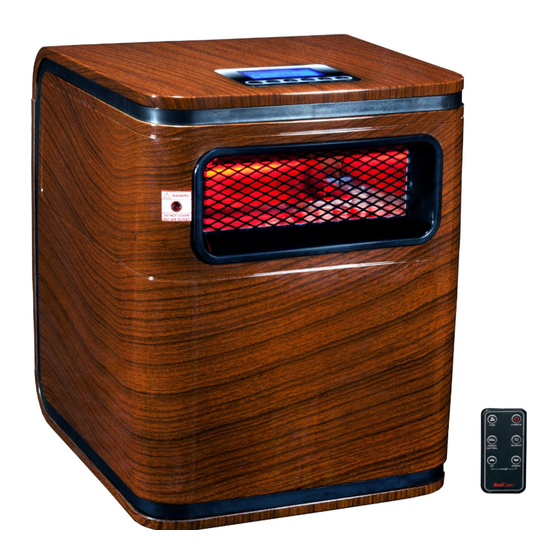

- Page 1 CONCEPT R-2 Indoor Infrared Heater USER MANUAL_ BGT_RedCore CONCEPT R2-20120623...
-
Page 2: Customer Support
CUSTOMER SUPPORT DO NOT RETURN THIS PRODUCT TO THE STORE WHERE YOU BOUGHT IT FOR IMMEDIATE CUSTOMER SERVICE, PLEASE CALL: 888-4BGT HEAT (888-424-8432) A CUSTOMER SERVICE REPRESENTATIVE WILL ASSIST YOU WITH ANY QUESTIONS REGARDING YOUR CONCEPT R2 INFRARED HEATER P a g e... - Page 3 Indoor Infrared Heater. We help our customers save money on energy bills while improving their comfort with safe, therapeutic heating products. The RedCore™ Concept R2 is a state-of-the art room heater that produces soft infrared heating that will keep you comfortable and help you reduce energy bills.
- Page 4 CAUTION! WARNING 1: WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS. WARNING 2: RISK OF ELECTRIC SHOCK NO USER-SERVICABLE PARTS INSIDE EXCEPT TO CLEAN THE AIR FILTER. WARNING 3: THIS PRODUCT MUST RUN ON ITS OWN ELECTRICAL CIRCUIT.
- Page 5 9. To disconnect the appliance, turn controls to off, wait for heater to cool down and shut off, and then remove plug from outlet. 10. Connect to properly polarized outlets only. This product requires a three prong outlet with ground. 11.
- Page 6 22. Check your heater cord and plug connections. a) Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tight in outlet. b) Heaters draw more current than small appliances. Overheating of the outlet may occur even if it has not occurred with the use of other appliances.
- Page 7 Product specification and basic features Voltage: 120V-60HZ; 12.6 Amps Heating power: Up to 1500 Watts Temperature control range: 60-90 degrees Fahrenheit Heating element: Infrared PTC heater LCD display and touch button operation, including remote control ...
-
Page 8: Main Features
Main Features ON/OFF (I/O) switch located back of unit LCD Display Wireless receiver Hot air outlet Casters P a g e... -
Page 9: Button Controls
LCD display and control button instructions Button Controls: Power On/Off button (B): Turn on or turn off the heater Room Setting button (G): Set the heater to work at different power levels based on different room size settings: larger room =1500 Watts; medium room = 1000 Watts; small room = 500 Watts. ... -
Page 10: How To Operate The Heater
How to operate the heater NOTE: The heater may emit a slight harmless smoke when first used. This smoke is a normal condition caused by initial heating of the infrared element. It will occur only briefly and is not harmful. ... - Page 11 When the user presses the HEATER button, if the actual room temperature is higher than the default setting temperature of ”70F”, the heater will not start heating and LCD will show ”COOLING DOWN.” Adjust the desired temperature up to a number higher than the actual room temperature. ...
-
Page 12: Cleaning The Air Filter
Cleaning the Air Filter The lifetime washable air filter needs to be cleaned on a regular basis to ensure maximum performance of the heater. To clean the air filter, follow these simple steps: Screw Air Filter Cover 1. Remove the filter by unscrewing screw and opening the filter cover on the back of the heater and carefully pulling the filter out. -
Page 13: Warning To User
Caution!! Disconnect power cord before servicing Ensure that the heater is turned off (the switch on the back of the unit should be in the off position), Unplug the power cord from the wall outlet before cleaning. Carefully wipe the exterior of the heater with a soft, damp (not wet) cloth and dry thoroughly with a soft, dry cloth. -
Page 14: Performance Suggestions
Performance suggestions To assure maximum performance of the heater, please note the following recommendations: 1. For best result, do not locate the heater in an area with a high rate of air filtration and movement as the warm air will be exhausted. 2. - Page 15 10. If used in an extremely dirty or dusty area, the filter must be cleaned more frequently as the filter can clog and cause the heater to stop working. Please refer to “How to Clean the Air Filter” in this manual for cleaning instructions. 11.
-
Page 16: Questions And Answers
QUESTIONS AND ANSWERS Why does the blower fan not work after I have turned on the heater power button? The blower fan will not work until the heating element is hot enough to heat the air passing by. It will normally turn on after about 10 seconds. - Page 17 My home is not insulated very well, will this heater help me? Yes, but it will take a little longer to heat the room initially and the outside temperature will also have an impact on heating time. Once the room has reached the desired temperature it will cycle on and off accordingly.
- Page 18 Can I use an extension cord, surge protector, or power strip with my heater? It is not recommended. It is designed to plug directly into a grounded 120 volt 15 amp or higher circuit receptacle. However, if you have to use an extension cord, the cord should be No. 14 AWG minimum size and rated not less than 1875 watts.
- Page 19 PTC ceramic heating element for lifetime of product. Should your RedCore™ room heater prove defective within one year from the date of purchase, please follow our return procedure to return the defective unit. Within the first 30 days, BGT is responsible for the freight cost to and from our authorized service center for all units with a BGT authorized RMA.
- Page 20 CUSTOMER SUPPORT DO NOT RETURN THIS PRODUCT TO THE STORE WHERE YOU BOUGHT IT FOR IMMEDIATE CUSTOMER SERVICE, PLEASE CALL: 888-4BGT HEAT (888-424-8432) A CUSTOMER SERVICE REPRESENTATIVE WILL ASSIST YOU WITH ANY QUESTIONS REGARDING YOUR CONCEPT R2 INFRARED HEATER www.redcoreheaters.com 20 | P a g e...
Need help?
Do you have a question about the CONCEPT R-2 and is the answer not in the manual?
Questions and answers
What is it when I turn the machine on it only last about 2 seconds and then the display will shut off
A possible cause for the RedCore R-2 machine turning on for only 2 seconds before the display shuts off is that the heater may have gone into Auto Recovery mode due to the internal temperature exceeding a pre-defined limit. In this mode, the heater shuts down to cool off. You should wait a few minutes for the internal components to cool before trying again.
