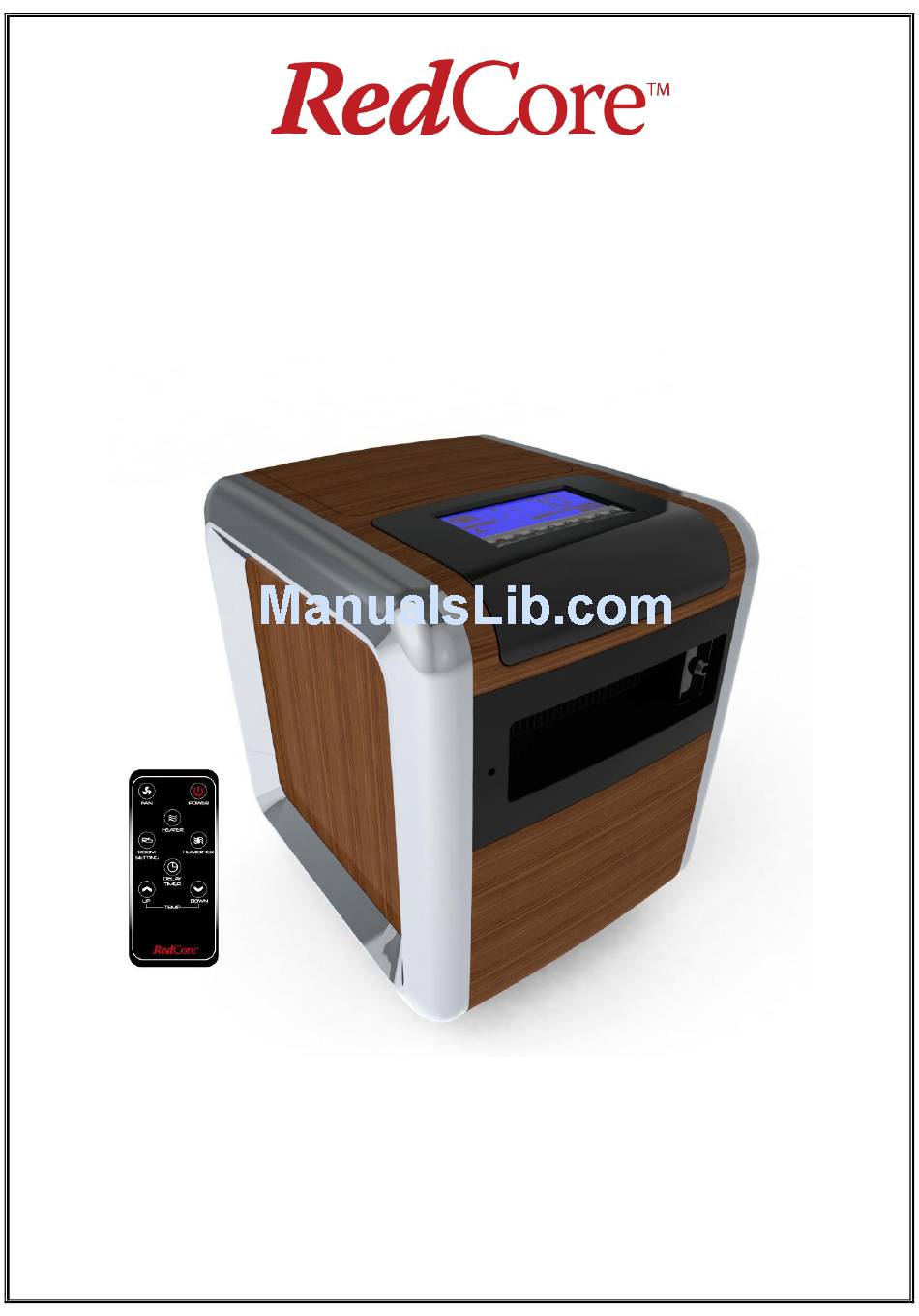

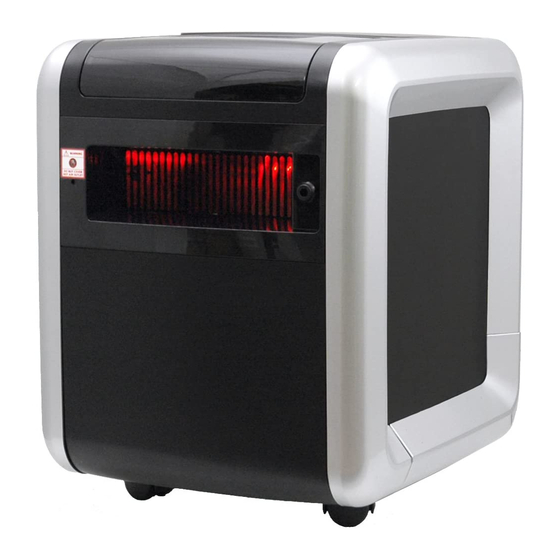

USER MANUAL RedCore CONCEPT R-4-20100616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RedCore R-4

Summary of Contents for RedCore R-4

  • Page 1 R-4 Indoor Infrared Heater WITH PCO AIR PURIFIER and HUMIDIFIER USER MANUAL RedCore CONCEPT R-4-20100616...
  • Page 2 Thanks for choosing the RedCore Indoor Infrared Heater! We help our customers save money on energy bills while improving their comfort with safe, therapeutic heating products. The RedCore™ Concept R4 is a 3-in-1 product, producing soft infrared heating, humidification, and superior year-round air purification all in one convenient product.
  • Page 3 PRECAUTION WARNING 1: WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS. WARNING 2: RISK OF ELECTRIC SHOCK NO USER-SERVICABLE PARTS INSIDE EXCEPT TO CLEAN THE AIR FILTER AND ADD WATER TO THE HUMIDIFIER.
  • Page 4 14. Use this appliance only as described in this manual. Any use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. 15. Always plug heaters directly into a wall outlet receptacle. Do not use an extension cord. 16.
  • Page 5 Product specification and basic features  Voltage 120V-60HZ  Heating power: Up to1500 Watts.  Temperature control range:60-90 degrees Fahrenheit  Heating element: Infrared PTC heater  Air purifier: lifetime washable air filter and PCO cell  Humidifier: ultrasonic atomized design with separate control from heater operation ...

  • Page 6: Main Features

    Main Features ON/OFF (I/O) switch located back of unit Humidifier water tank LCD Display Humidifier air outlet Hot air outlet Wireless receiver Casters...
  • Page 7 LCD display and button instruction  Power On/Off button: Turn on or turn off the heater  Humidifier On/Off button: Turn on or turn off the humidifier function  Room Setting button: Set the room size according to actual size of room and the heater will work at different power levels based on different room size settings: larger room =1500 Watts;...

  • Page 8: Remote Control Unit

    Remote- Control unit How to Operate the Heater  Un-package heater: cut open tape area, fold back flaps and gently turn entire box upside down. Lift box from Styrofoam packing. Remove Styrofoam, turn upright. We recommend keeping the package for off-season storage and any transporting needs. ...
  • Page 9  Heater ON/OFF: Press the HEATER power button to turn on or off the heating function of the heater. The fan will not operate until the heating element has reached a temperature high enough to begin the warming process. During the period that the fan will not work, the message “HEATING UP” will show on the LCD display to indicate that the heater is heating up.
  • Page 10  Delay Timer setting. Press this button to set the desired number of hours, and the unit will stop heating and will not start heating again until that amount of time has elapsed. For example, set the Delay Timer for 8 hours before you go to be at 10:00 pm, and the unit will turn on at 6:00 am.
  • Page 11 3. Unscrew the cap 4. Add distilled water and replace tank How to Clean the Humidifier DO NOT USE VINEGAR TO CLEAN THIS HUMIDIFIER. If you are not going to use the humidifier for an extended period of time (during warm weather), drain all water out of the bottle and chamber and dry it out as much as possible using a soft towel.

  • Page 12: Warning To User

    2. Clean the filter by vacuuming it with an attachment, or run warm water over it to remove dust. Run the water in the opposite direction of the air flow until the water runs clear. 3. The filter might excrete some filtered residue, so be cautious not to drip on any stainable surfaces such as carpeting.

  • Page 13: Performance Suggestions

    PERFORMANCE SUGGESTIONS To assure maximum performance of the heater, please note the following recommendations: 1) For best result, do not locate the heater in an area with a high rate of air filtration and movement as the warm air will be exhausted. 2) Try placing the heater near a warmer inside wall and direct the output towards a cooler outside wall.

  • Page 14: Questions And Answers

    the heater is left operating and unattended. 13) To disconnect heater, turn controls to off, then remove plug from outlet. Always unplug heater when not in use. QUESTIONS AND ANSWERS Why does the blower fan not work after I have turned on the heater power button? The blower fan will not work until the heating element is hot enough to heat the air passing by.
  • Page 15 Can I use more than one heater at a time? Yes, but you should make sure they are not on the same circuit. Each heater and appliance should be on its own circuit. Can I use the heater on a job/construction site? The heater was not designed to be used in a high dust construction environment.

  • Page 16: Limited Warranty
