Allied Telesis AT-GS950/8 Datasheet

Datasheet | Switches

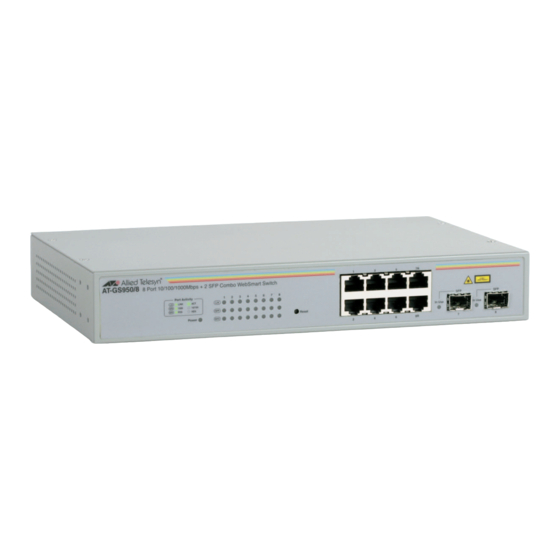

AT -GS950/8
8 port Gigabit WebSmart Switch
AT -GS950/8-xx
8 port 10/100/1000T WebSmart switch
with 2 SFP combo ports
Performance
Allied Telesis' WebSmart switch integrates the
simplicity of unmanaged switches with the
performance and reliability of managed switches
to provide a cost-effective solution for users
to integrate management at the edge of their
network.This WebSmart switch provides a
network manager some key features using
the simple web-based management function
such as; port-based VLANs, IEEE 802.1p QoS,
port trunking/link aggregation, priority queues
and IEEE 802.1x packet pass-through. With
support of up to 4K MAC addresses and a
128K packet buffer the AT-GS950/8 WebSmart
switch is an ideal option for integrating
management into your network solution.
Allied Telesis
Value
Never thought you could afford managed
switches in your network? Always wanted to
provide management functionality at the edge?
Now's your chance. Allied Telesis' WebSmart
switch truely helps network managers get the
most value for their dollar. With industry
standard protocols, fiber media support via
the SFP's and simple Plug and Play usability
right out of the box how can you go wrong
implementing this cost-effective solution into
your network?
Quality and Reliability
Allied Telesis is a worldwide leader in
unmanaged Ethernet switches. Shipping more
than 250,000 unmanaged switches each year,
Allied Telesis offers proven reliability and
industry recognized quality.
Key Features
• 8 10/100/1000T ports
• 2 SFP combo ports
• Non-blocking architecture
• Auto MDI/MDI-X
• Web-based management
• IEEE 802.1x packet pass-through
• Up to 4K MAC addresses
• Link aggregation
• Port setting (speed, availability, flow control)
• Port trunking
• Port mirroring
• IEEE 802.1p QoS
• IEEE 802.1Q tagged VLANs
• Statistics and diagnostics
• Rack-mount kit
• No fan (quiet operation)
• RoHS compliant
www.alliedtelesis.com
