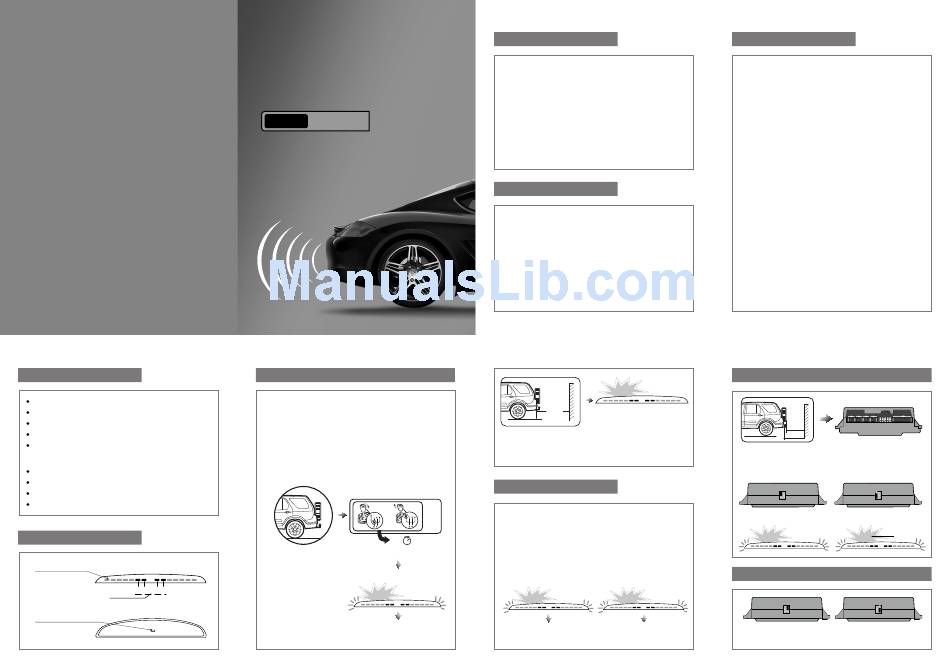

CrimeStopper CA-5014 User Manual

All rights reserved.
The right to change the design and specifications for improving the product is reserved.
Key features
Dual-color LED display with built-in buzzer
Intelligent detection, super for cars with spare tire or other protrusion
Anti-false alert technology
Self-test function
All weather design
Technical parameter:
Input voltage 9~16V DC
Beep volume 70 ~ 90 dB
Detection range 0.3m ~ 2.5m/1ft ~ 8.2ft
Sensor installation height 45cm ~ 60cm/1.5ft~2.1ft
LED display
LED indicator
Warning light & damaged
A B C D
sensor location indication
Buzzer
Parking assist
system
CA-5014
MODEL:
Manual
Learning function for car with tow bars or spare wheel
Switch ignition on, engage and disengage reverse gear 10 times.
On the 10th time stay in reverse gear for 6 seconds while the kit
performs the learning function.
To clear the learning function switch ignition on, engage and disengage
reverse gear 12 times. On the 12th time stay in reverse gear for 8
seconds while the kit reverts to factory settings.
+
X 10
1"
The display will flash and beep
once, this indicates that the
B e
learning function is successful.
The system will no longer false
alarm because of a tow-bar or
Flash and beep once
spare wheel.
Important notice
Parking sensors provide assistance while reversing. Driving skills,
such as slowing down, use of mirrors etc. are always essential.
1. This unit is for vehicles with 12V DC.
2. Unit should be installed by a professional auto technician.
3. Route wiring harness away from heat sources and electrical
components.
4. It is strongly recommended to check the position of the sensors
before the actual drilling of the holes.
5. Perform test after finishing the installation.
Disclaimer
The parking assist system is designed as a driver assistance device,
and should not be used as a substitute for safe parking practices.
You must constantly check the outside circumstance while parking.
The manufacturer does not guarantee or assume liability for collisions
or damage caused while parking your vehicle.
B e
0.5 m/
When the learning function is
1.64ft
activated, the system will ignore the
tow-bar or spare wheel and only detect
other objects behind the vehicle.
Note: If the vehicle does not have a tow-bar or spare wheel, you do not need to
use this function.
Self-test function
When reverse gear is selected, the system will perform a self-test
procedure.
1.If no faults are detected after selftest, the buzzer will beep"once,
and the display will scan once.
2.If a faulty sensor is detected after selftest, the buzzer will beep
three times, and the display will show the faulty sensor location.
B e
B e --- Be --- Be ---
beep three times
Flash and beep once
About the product
A Parking assist system uses ultrasonic sensors to monitor distances.It
electronically detects the area at the rear of your vehicle while
reversing, and alerts you with an audible tone/visual warning if there
is an obstacle behind your car.
This product features a self-test and learning function which is ideal
for cars with tow-bars, or with spare wheels located at the rear.
Each part of this product has passed rigorous testing before be-ing
released to the market and is reliable at a wide temperature range.
The unit is warranted for a limited period of time from the date of
purchase. In the unlikely event of a defect arising in this product
when used in accordance with the manufacturer's instructions, the
parts would be repaired or replaced free of charge.
Dual intelligent function for spare wheel
ECU
29cm/
0.95ft
49cm/1.6ft
0.50 m
In "0" position: The measured distance is between sensor and obstacle.
1.6 ft
In "20" positon: The measured distance is between spare wheel (20
cm/0.65ft) and obstacle.
In "0" position
(Factory Setting) In "20" position
B e B e
Sensor installation height choose
Sensor installation Sensor installation
55cm<H<65cm / 1.8ft<H<2.1ft 45cm<H<55cm / 1.5ft<H<1.8ft
(Factory Setting)
