Motherboard User's Guide

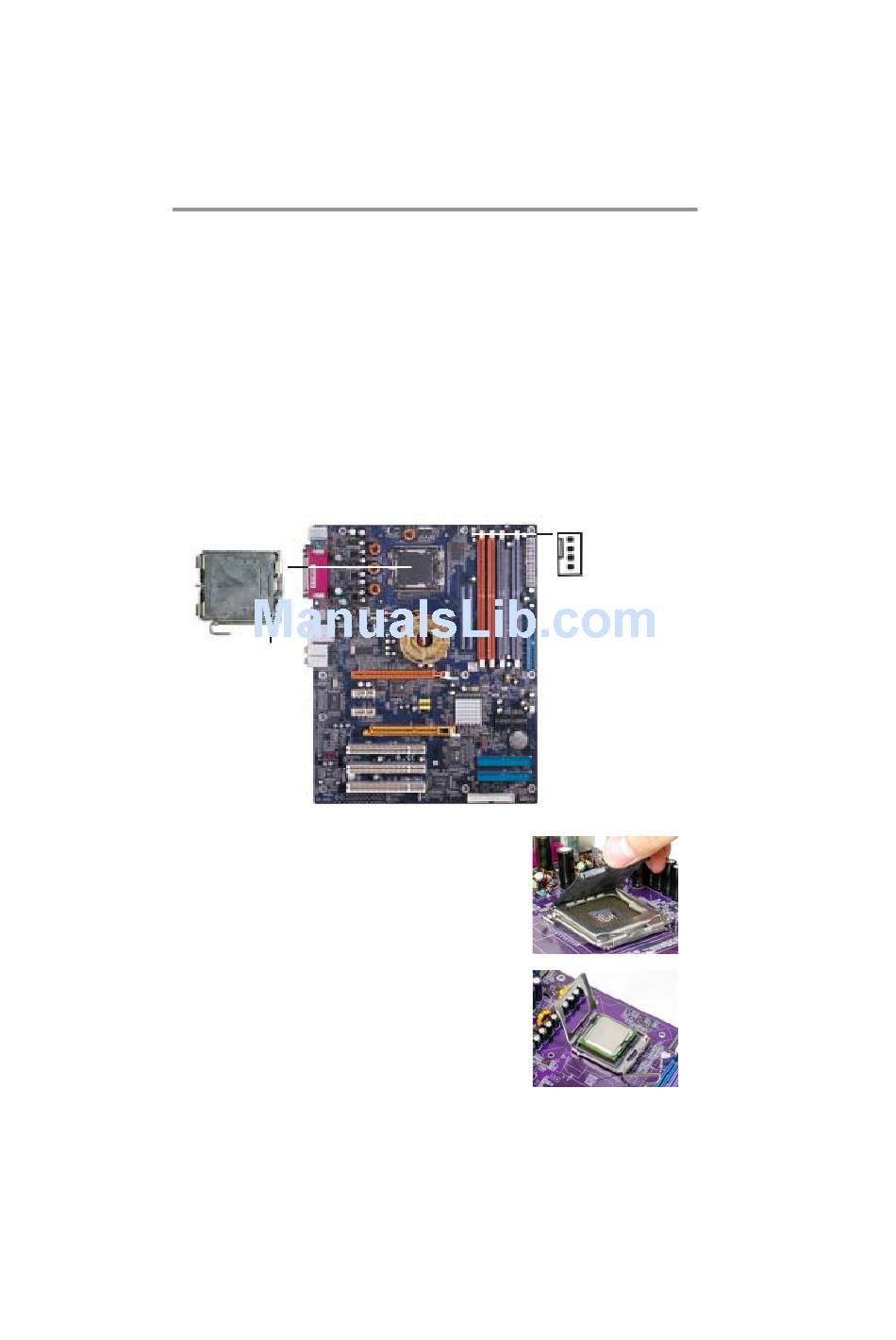

Installing the Processor

This motherboard has a LGA775 socket for the latest Intel
Pentium 4/Celeron processors. When choosing a processor,
consider the performance requirements of the system. Perfor-
mance is based on the processor design, the clock speed and
system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
CPU Installation Procedure
Follow these instructions to install the CPU:
LGA775 Socket
pin1
A. Unload the cap
• Use thumb & forefinger to hold the
lifting tab of the cap.
• Lift the cap up and remove the cap
completely from the socket.
B. Open the load plate
• Use thumb & forefinger to hold the
hook of the lever, pushing down and
pulling aside unlock it.
• Lift up the lever.
• Use thumb to open the load plate.
1
CPU_FAN1
12
