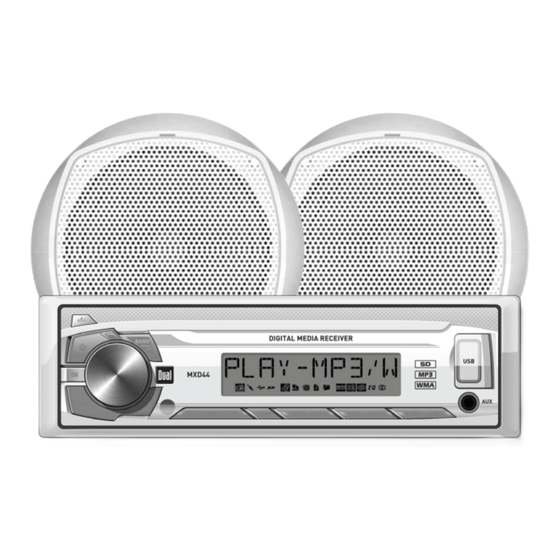

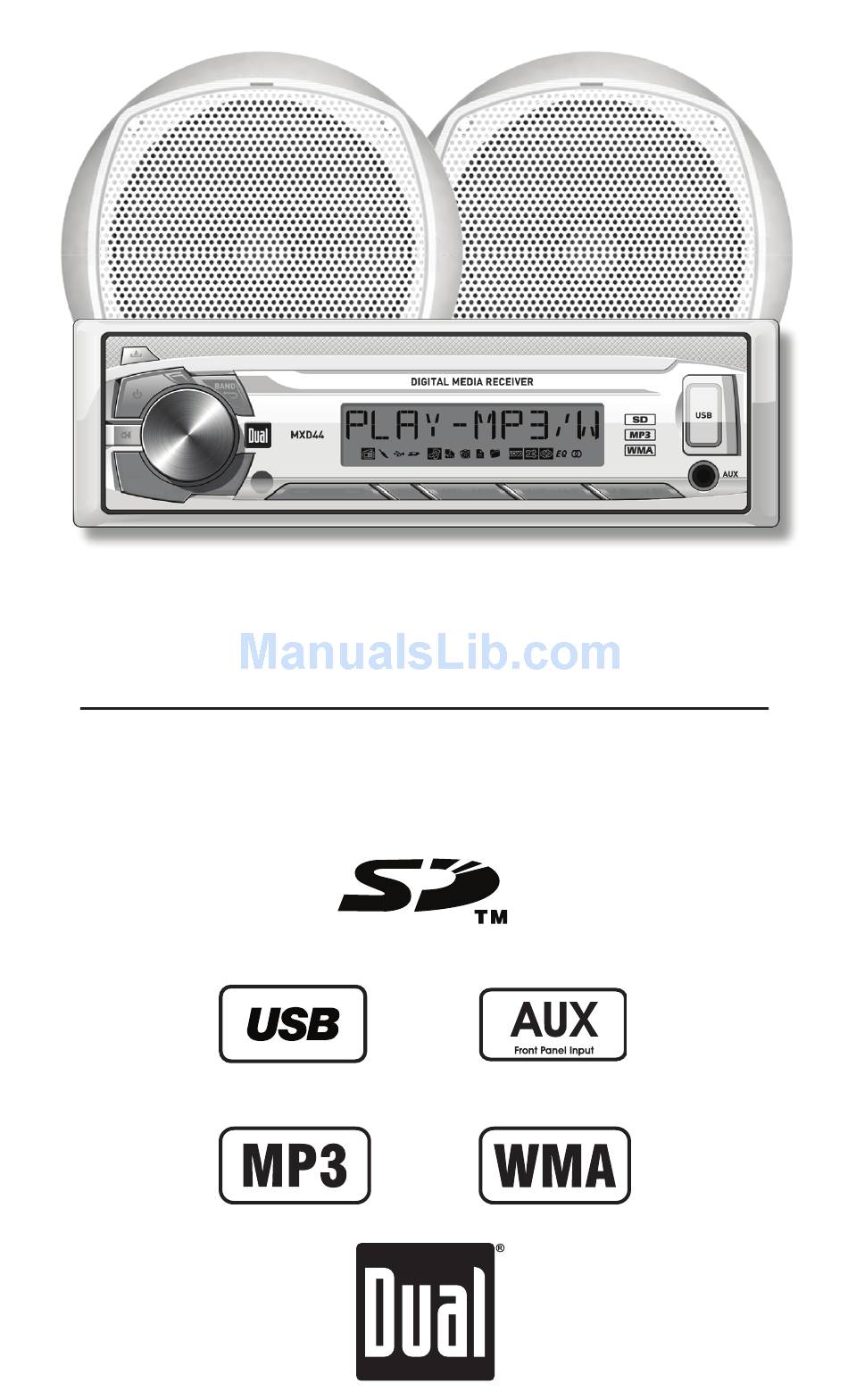

- Page 1 MXCP44 INSTALLATION/OWNER'S MANUAL Digital Media Marine Receiver with 6.5" Dual Cone Speakers...
- Page 2 MXCP44 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
MXCP44 INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MXCP44 uses one 10 amp AGC fuse located in-line. -
Page 4: Control Locations - Receiver
MXCP44 OPERATION Control Locations - Receiver Release Preset 4 / Play / Pause Power Preset 3 / Intro Volume Knob Preset 2 / Random Band / Go Back Preset 1 / Repeat USB Port Tune / Track Up Auxiliary Input Tune / Track Down... -
Page 5: Control Locations - Remote
MXCP44 OPERATION Control Locations - Remote Power Mute Tune / Track Down Preset 6 / Folder Up Volume Up Preset 4 / Play / Pause Select Preset 5 / Folder Down Volume Down Preset 1 / Repeat Tune / Track Up Preset 2 / Random... -
Page 6: General Operation
MXCP44 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Power On/Off Press or any other button to turn the unit on. Press again to turn the unit off. - Page 7 MXCP44 OPERATION General Operation Press the volume knob to select between Bass, Treble, Audio / Menu Balance, Fader, Loudness, Distance and Stereo. BASS TREBLE BALANCE FADER LOUDNESS DISTANCE STEREO Press the volume knob until BAS appears. Bass Rotate the volume knob left/right to adjust. (-7 minimum / +7 maximum) Press the volume knob until TRE appears.
-
Page 8: Tuner Operation
MXCP44 OPERATION Tuner Operation Seek Tuning Press TUNE or TUNE for more than 2 seconds to seek the next strong station. Manual Tuning Press TUNE or TUNE momentarily to change one radio frequency at a time. Press and hold to advance quickly. Band Press BAND to select between FM1, FM2, FM3 and AM1, AM2 bands. - Page 9 To play MP3/WMA/WAV files from an SD card, insert an (sold separately) SD card into the MXCP44's SD card slot with the label facing left. It will click into place when properly inserted. To remove the card, press in until it clicks, then pull to remove.
- Page 10 MXCP44 OPERATION SD Card / USB Operation The following types of files are compatible: Media Compatibility • MP3 audio • WMA audio • WAV audio The following types of files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) • WMA lossless format •...
- Page 11 MXCP44 OPERATION SD Card / USB Operation Displaying Information When a file is accessed, the display will alternate between track number/elapsed time and available MP3/WMA information, including file name, song title, artist name, album name and folder number. File Icon This icon will illuminate when the file name is displayed.
- Page 12 MXCP44 OPERATION Speaker Preparation/Installation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Use extreme caution when drilling holes to avoid damaging fuel lines, hydraulic lines or existing wiring. • If additional wiring is required, we recommend that you run all wires prior to mounting your speaker in place.
-
Page 13: Radio Specifications
MXCP44 OPERATION Radio Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 25dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-18kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <36dB Frequency response: 80Hz-2kHz Speakers Outside Diameter: 7.13" Mounting Depth: 2.13" Mounting Height: .87"... -
Page 14: Troubleshooting
MXCP44 WARRANTY Troubleshooting Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper Red wire not connected or incorrect voltage voltage (11~16VDC) Unit will not turn on (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 15: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. - Page 16 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday SD Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. www.dualav.com ©2013 Dual Electronics Corp. All rights reserved. NSA0813-V01...
