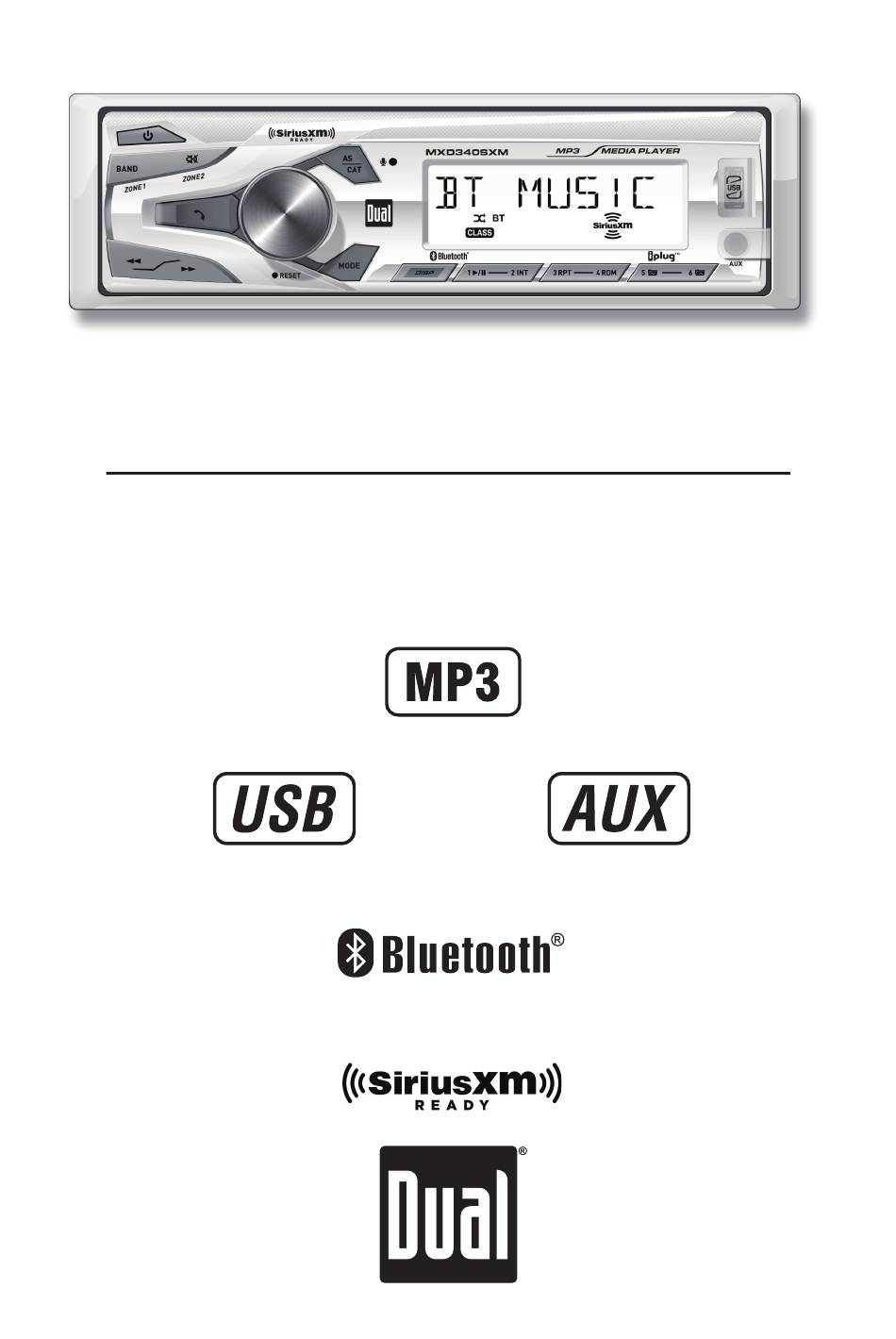

- Page 1 MXD340SXM INSTALLATION/OWNER'S MANUAL AM/FM/USB/SiriusXM – Ready Receiver with Bluetooth / Front Panel (Includes SiriusXM Connect Tuner and Antenna)
- Page 2 MXD340SXM INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
MXD340SXM INSTALLATION Wiring Diagram SXM IN Includes SiriusXM connect Tuner and Antenna FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp ATC fuse... -
Page 4: Control Locations
MXD340SXM OPERATION Control Locations Power Auxiliary Input DISP Preset 6 / Folder up Band / Zone 1 Mode Mute / Zone 2 Preset 5 / Folder down Reset Talk Preset 4 / Random Tune / Track up Preset 3 /Repeat... -
Page 5: General Operation
Press DISP to display clock time for 5 seconds. Display MXD340SXM will return to the previous display in 5 seconds. Press volume knob momentarily to select between the Audio / Menu Audio/Menu functions. - Page 6 MXD340SXM OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
-
Page 7: Usb Operation
MXD340SXM OPERATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 8: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “MXD340SXM”. The Bluetooth passcode is "1234”. Note: The head unit can be in any mode of operation when pairing is performed. -
Page 9: Siriusxm Satellite Radio Operation
MXD340SXM OPERATION SiriusXM Satellite Radio Operation ® SiriusXM Radio Only SiriusXM Satellite Radio brings you more of what you ® ® love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. - Page 10 MXD340SXM OPERATION SiriusXM Satellite Radio Operation ® Band / Zone 1 Press Band /Zone 1 to select SXM 1, SXM 2, SXM3. Press and hold Zone 1 to turn the sound from Zone 1 on or off. MUTE / Zone 2 Press Mute button to silence the audio.
- Page 11 MXD340SXM OPERATION SiriusXM Satellite Radio Operation ® Direct Channel Channel number can be chosen directly as below. Step #1 : Press and hold the volume knob. Tuning Step #2 : Rotate the volume knob left or right to select the first digit of the channel number.
-
Page 12: Troubleshooting
MXD340SXM OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 13 MXD340SXM OPERATION SiriusXM Radio Advisory Messages SiriusXM Recommendation Advisory Message 1. The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.
-
Page 14: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 15: Fcc Compliance
MXD340SXM OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 16: Specifications
MXD340SXM OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms... - Page 17 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2019 Dual Electronics Corp. All rights reserved. SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
