SilverStone Grandia GD06 Manual

Grandia series
Hide thumbs
Table of Contents

Advertisement

Quick Links

GD06
November, 2010
NO: G11213050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grandia GD06 and is the answer not in the manual?

Questions and answers

Related Manuals for SilverStone Grandia GD06

Summary of Contents for SilverStone Grandia GD06

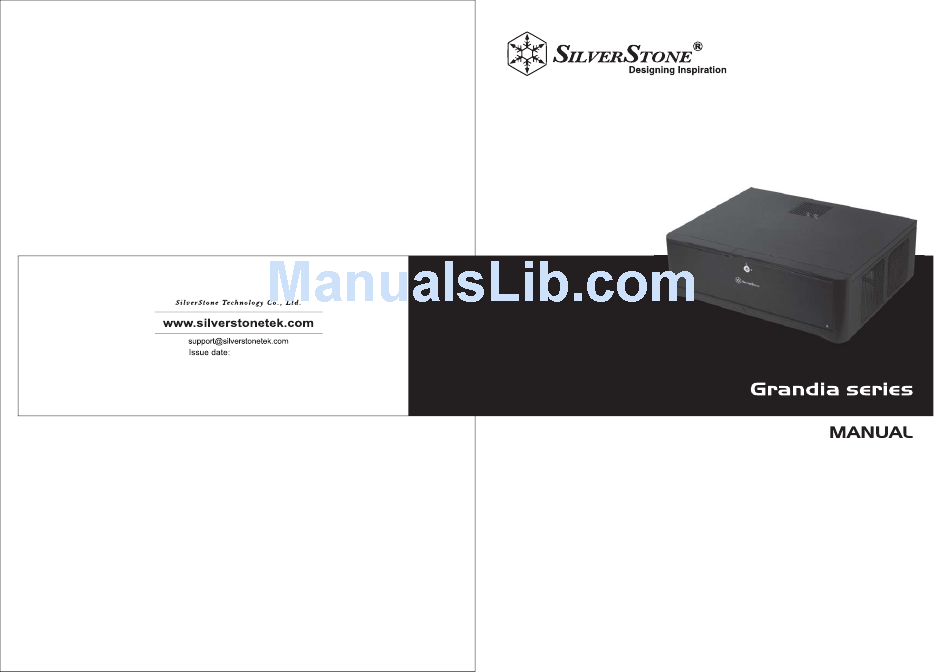

  • Page 1 GD06 November, 2010 NO: G11213050...

  • Page 2: Table Of Contents

    Installation and system optimization guide: The following manual and guides were carefully prepared by the SilverStone engineering team to help you maximize the potential of your SilverStone product. Please keep this manual for future reference when upgrading or performing maintenance on your system. A copy of this manual can also be downloaded from our website at: http://www.silverstonetek.com...

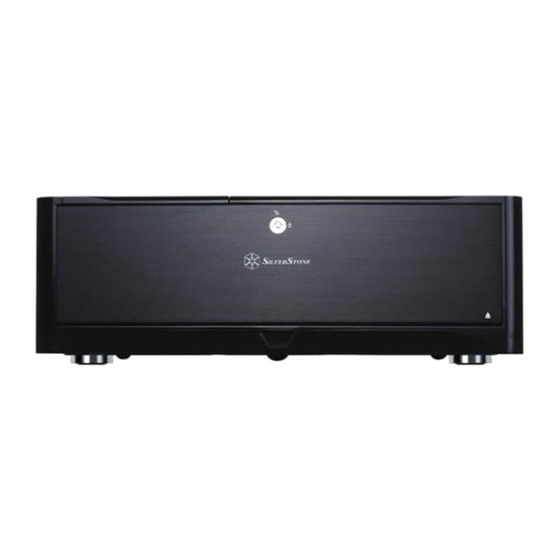

  • Page 3 GD06 Stunning HTPC chassis with impressive cooling and storage capability Aluminum front door and plastic front panel, 0.8mm SECC body Micro ATX, Mini-DTX, Mini-ITX SST-GD06B (Black) Model No. 5.25" x 1 3.5" x 4, 2.5” x 1 or 3.5" x 3, 2.5” x 2...

  • Page 4: Installation Guide

    TOP COVER PS2 / ATX PSU (OPTION) 3.5” or 2.5” DRIVE BRACKET 3.5” HOT SWAP DRIVE BRACKET x 2 MICRO ATX M/B (OPTION) 12025 FAN USB3.0 x 2 + SPK + MIC RESET BUTTON 5.25” DRIVE BRACKET SECURE MOTHERBOARD METAL SPACER SUCURE POWER SUPPLY OR SCW-HW-6-32 PSU PKT AND MOTHERBOARD...
  • Page 5 lnstallation Guide Before you begin, please make sure that you. (1) have all components collected. (2) check that all components do not have compatibility problems with each other or with the case. (3) if possible, assemble the components outside the case first to make sure they are working. (4) keep the motherboard manual ready for reference during installation.
  • Page 6 lnstallation Guide Unscrew two screws from the Открутите два шурупа на center brace to remove it. центральной скобе и выньте ее. Lesen Sie die beiden Schrauben an 鬆開中支架2顆螺絲,卸下中支架。 der mittleren Halterung, nehmen Sie die Halterung heraus. Dévissez les deux vis de la barre 松开中支架2颗螺丝,卸下中支架。...
  • Page 7 lnstallation Guide Install power supply into the case. Please note the case supports mounting power supply in two different orientations. (For more information regarding power supply size limitations, please refer to the component guide in later pages). Installieren Sie das Netzteil im Gehäuse. Bitte beachten Sie, dass das Gehäuse die Montage des Netzteils in zwei verschiedenen Ausrichtungen unterstützt.
  • Page 8 lnstallation Guide Insert the I/O shield included with Установите заглушку для разъёмов your motherboard, then install the задней панели материнской платы, motherboard into the case. прилагаемую к материнской плате, затем установите материнскую плату в корпус. Setzen Sie das mit Ihrem Motherboard 塞入I/O彈片,裝入主機板。...
  • Page 9 lnstallation Guide The tray areas around the motherboard Вокруг материнской платы предусмотрено have many small pass-through holes большое количество маленьких сквозных that can be used with included wire отверстий, которые можно использовать tie, please refer to the illustration for для прилагаемых стяжек для кабелей, см. more information.
  • Page 10 lnstallation Guide Now carefully count and separate the Теперь аккуратно пересчитайте и required power cables for your hard отделите друг от друга силовые кабели drive, optical drive, and graphics card. для жесткого диска, оптического диска Place the needed cables out of the case и...
  • Page 11 lnstallation Guide Install and secure any 3.5” or 2.5” hard drive into the hard drive bracket with screws. The purpose of using screws for hard drive installation is to ensure complete isolation of hard drive from the bracket to maximize the vibration dampening pad’s effectiveness. Installieren und fixieren Sie 3,5- oder 2,5-Zoll-Festplatten mit Schrauben in der Festplattenhalterung.
  • Page 12 lnstallation Guide There is a rubber partition plate in the rear part of the hard drive bracket designed for channeling airflow to the top panel vents. This plate has small flaps that can be removed if needed to create additional room for cables. Im hinteren Teil der Festplattenhalterung finden Sie außerdem eine Gummiplatte, die den Luftstrom zu den Öffnungen an der Oberseite regelt.
  • Page 13 lnstallation Guide Reinstall the hard drive bracket, Установите кронштейн для connect the cables, and secure жестких дисков в корпус, with screws. подключите кабели и закрепите его винтами. Bringen Sie die Festplattenhalterung 將硬碟架塞入機殼,連接好所需要 wieder an; verbinden Sie die Kabel 的接線後,再將螺絲鎖上。 und ziehen Sie die Schrauben fest. Réinstallez le casier à...
  • Page 14 lnstallation Guide Install and secure the optical drive Вставьте оптический привод в onto the optical drive bracket. кронштейн и закрепите его. Installieren und fixieren Sie 將光碟鎖固到光碟架上。 das optische Laufwerk an der entsprechenden Halterung. Installez et fixez le lecteur 将光盘锁固到光盘架上。 optique dans son casier. Instale y fije el dispositivo óptico 光学ドライブブラケットに光学...
  • Page 15 lnstallation Guide Reinstall the center brace back Вставьте центральную скобу into the case. обратно в корпус. Bauen Sie die mittlere Halterung 把中支架安裝回機殼。 wieder in das Gehäuse ein. Réinstallez la barre centrale dans 把中支架安装回机壳。 le boîtier. ケースの中に中央の支柱を戻します。 Reinstale el eje central en la carcasa.
  • Page 16 lnstallation Guide Install and secure required Установите и закрепите expansion cards. необходимые платы расширения. Installieren und befestigen Sie die 將介面卡插上。 erforderlichen Erweiterungskarten. Installez et fixez les cartes 将适配卡插上。 d'extension requises. Instale y fije las tarjetas de 必要とされる拡張カードをイン ストールし、固定します。 expansión necesarias. Installare ed assicurare le schede 필요한...
  • Page 17 lnstallation Guide Install the hard drive into the hot- Установите жесткие диски в отсеки swappable drive racks and place для жестких дисков с возможностью the front cover back. «горячей» замены и установите на место переднюю крышку. Installieren Sie die Festplatte in den 打開硬碟熱插拔的門板, Hot-Swapping-fähigen Festplatten- 將硬碟塞入再蓋回門板。...

  • Page 18: Connector Definition

    Connector definition (1) Front panel connector installation Power switch and reset switch installation guide: LED connector installation guide: Please refer to the motherboard manuals for the motherboard’s “Front Panel Connector Please refer to the motherboard manuals for the motherboard’s “Front Panel ”...

  • Page 19: Front I/O Connector Guide

    A continuación tiene la definición de pines de los conectores frontales de E/S, también debe consultar el manual de su placa base para comprobar la referencia de los pines para E/S frontales. Los conectores de E/S de SilverStone son de bloque para simplificar la instalación.

  • Page 20: Component Size Limitations

    (pouvant seulement accueillir des lecteurs slim). Cuando se usa un dispositivo óptico, la GD06 tiene una limitación de altura de 70mm para el disipador de la CPU. Si no se instala un dispositivo óptico, la limitación de altura para el disipador de la CPU sube hasta 120mm. Si se necesita una solución de refrigeración silenciosa para la CPU, recomendamos usar la configuración sin ventilador SilverStone NT01-E para CPUs que usen 65V o menos.
  • Page 21 La fuente de alimentación con cables modulares podría interferir con los espacios para discos duros cambiables en caliente. Por favor, tenga cuidado para no entorpecerse. Le recomendamos que instale la fuente de alimentación Silverstone ST50F-P (profundidad de 140mm) hacia abajo.
  • Page 22 GD06 поддерживает источники питания с глубиной не более 150 мм. Блок питания с модульными кабелями может помешать установке отсеков для жестких дисков с возможностью «горячей» замены. Удостоверьтесь, что они не мешают друг другу. Рекомендуется устанавливать блок питания SilverStone ST50F-P (глубиной 140 мм) в перевернутом положении.
  • Page 23 Graphics card/expansion card length limitation GD06 can support 11” (280mm) consumer level graphics cards Graphic card length reference: AMD Radeon HD 5870 11" AMD Radeon HD 6870 10.5" NVIDIA GeForce GTX580 - 10.5" NVIDIA GeForce GTX480 - 10.5" AMD Radeon HD 5850 - 9.5"...
  • Page 24 Component size limitations on the front door 18.8mm 16mm A. The maximum clearance between the optical drive and the inner part of the front door is 18.8mm. B. The maximum size of a USB device that can be inserted into the front USB port is 16mm. A.

  • Page 25: Recommended Cooling Device Setup & Selection

    Recommended cooling device setup and selection When choosing a graphics card, we recommend models that have fan blowing exhaust air to the rear slot, this will ensure smooth and efficient airflow within the GD06 for maximum cooling performance. When choosing a graphics card, we Мы...
  • Page 26 SUSCOOL81 de SilverStone. Silverstone ha incluso nel GD06 3 ventole da 120mm a bassa rumorosità. Le ventole sono scelte in base al più alto livello qualitativo e la minima rumorosità. Se desiderate incrementare l’espulsione d’aria nei pressi della CPU, sono presenti 2 sedi ove è possibile montare altrettante ventole aggiuntive da 80mm.
  • Page 27 El diseño de presión de aire positiva de la GD06 es una configuración efectiva que reducirá la acumulación de polvo dentro de la carcasa. Las pequeñas partículas de polvo o pelusa se acumularán con el transcurso del tiempo en los filtros de entrada de la GD06 en lugar de en los componentes del interior de la carcasa.

  • Page 28: Fan & Fan Filter Disassembly Guide

    Upgrade and maintenance Fan and fan filter disassembly guide If you need to change fans, clean filters, or upgrade a fan, please refer to the following steps: Refer to the case installation guide Чтобы правильно снять кронштейн to properly remove the drive bracket, жесткого...
  • Page 29 Loosen the screws holding the fan Открутите шурупы, крепящие фильтр filter to the fan to remove the fan filter. к вентилятору, и выньте фильтр. Lösen Sie die Schrauben, die den 鬆開風扇背面,鬆開鎖固濾網的4顆螺絲, Lüfterfilter am Lüfter halten, nehmen 就可以把濾網拆卸下。 Sie den Lüfterfilter ab. Dévissez les vis fixant le filtre du 松开风扇背面,松开锁固滤网的4颗螺丝, ventilateur pour le retirer.

  • Page 30: Dual Purpose Space

    Dual purpose space There is a dual purpose space located above the power supply area, it can be used for either of the two following application: Installation of a 3.5” hard drive Для установки 3,5-дюймового жесткого диска. Zur Installation einer 3,5-Zoll- 安置一個3.5”硬碟。...

  • Page 31: Expansion Card Removal Guide

    Expansion card removal guide Although GD06’s interior space is designed tightly, you can still install expansion cards without having to remove other brackets. Please refer to the following scenarios: (with the top cover already removed) If the rear hard drive’s cables are blocking the left expansion card, please first unplug the hard drive cables then proceed to remove/install the expansion card.
  • Page 32 If the expansion card on the right side is blocked by the card to the left, please first remove the card on the left side to allow the card on the right side to be removed without taking the center brace off the case. Falls die Erweiterungskarte auf der rechten Seite von der linken Karte blockiert wird, nehmen Sie zunächst die Karte auf der linken Seite heraus –...

  • Page 33: Protect Your Computer

    Protect your computer Front door lock We suggest using the key locks on the front door to protect your hard drive. The optical drive, USB ports, and Reset button will be inaccessible when the front door is locked, so please keep the two keys in a safe place. If you happen to lose your keys, please contact a technical locksmith for help.
  • Page 34 The Kensington lock Connect the Kensington lock to the Kensington Security Slot of GD06 to ensure security for the installed drives and system. (The Kensington lock is optional) Verbinden Sie zur Gewährleistung der Sicherheit der installierten Festplatten und des Systems ein Kensington-Schloss mit dem Kensington-Sicherheitssteckplatz des GD06.

  • Page 35: Q&A

    выходного адаптера для дисплея. Кабель for the display output adaptor. The cable can be можно изогнуть в любом направлении, чтобы bent in any direction to ensure that the GD06 fits установить корпус GD06 в стойке для comfortably inside your home theater cabinet.
  • Page 36 La TS03 acepta un dispositivo óptico delgado para reducir la profundidad necesaria en la bahía para dispositivos ópticos de 5,25”. Puede aumentar el espacio para el disipador de la CPU en la GD06. Las limitaciones de instalar la NT06-E en la GD06 son las siguientes: Il TS03 supporta drive ottici slim per ridurre la profondità...
  • Page 37 Vertical orientation of CPU cooler on the motherboard. The distance from CPU to motherboard edge. Horizontal orientation of CPU cooler on the motherboard. 59.5mm < x < 96.5mm The distance from CPU to motherboard edge. 98mm < y < 117.5mm 55.5mm <...
  • Page 38 lnstallation Guide Install the NT06-E on the Установите кулер NT06-E на motherboard. материнскую плату. Installieren Sie den NT06-E auf 將NT06-E安裝上主機板。 dem Motherboard. Installez le the NT06-E sur la 将NT06-E安装上主机板。 carte mère. NT06-Eをマザーボードに取付 Instale la NT06-E en la placa base. けます。 Installare NT06-E sulla scheda NT06-E를...
  • Page 39 lnstallation Guide Install and secure the TS03 in Установите и закрепите TS03 в the 5.25” drive bay. отсеке для 5,25-дюймового привода. Installieren und befestigen Sie 將TS03裝上機殼。 den TS03 im 5,25 Zoll-Einschub. Installez et fixez le S03 dans une 将TS03装上机箱。 baie 5.25”. TS03を5.25”ドライブベイに装着...
