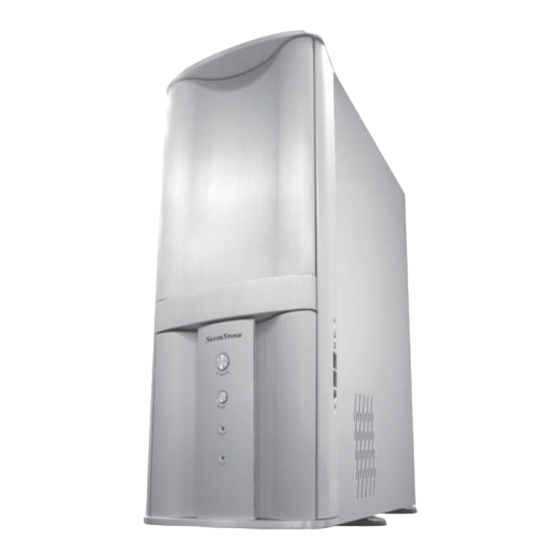

SilverStone TEMJIN 5 Manual

SST-TJ05
Material: Aluminum Front Panel 0.8 SECC Body
Motherboards: Extended ATX / Standard ATX or Micro ATX
Color: Silver
Drive Bay: (Exposed)5.25" x 4 and 3.5" x 2
(Hidden) 3.5" x 8
Cooling: Front 120 x 120 x 25mm x 2(2200rpm)21dBA (lntake)
Rear 120 x 120 x 25mm (2200rpm)21dBA (Exhaust)
Left side 80mm x 80mm fan (option) x 2
Right side 80mm x 80mm fan (option) x 1
Expansion Slots: 7
Power Supply: Optional Standard PS2 Power Supply
and Redundant PS2 Power Supply
Additional: USB 2.0 ports x 4, IEEE1394 x1 Earphone jack x 1,MIC x 1
Net Weight: 7 kg
Dimension: 590mm ( D ) x 502mm ( W ) x 200mm ( H )
Package: 680mm ( D ) x 543mm ( W ) x 285mm ( H )
POWER
12025FAN
SIDE PANEL
3.5BAY*2
OR 8025FAN*2
3.5BAY*5(HIDDEN)
Included:
M3X5 Pan/Washer Screw x 8pcs
4.75HX6.5X4-#6 Stand-off 12pcs
3.5X8X0.5R Washer x 12pcs
#6-32 X 9Pan Screw x 8pcs
#6-32 X 6Hexagon Screw x 2pcs
#6-32 X 4.7Pan Screw x 15pcs
5.25BAY*4
DOOR
3.5BAY*2
LCD
POWER SW
A
DOOR
8025FAN
A VIEW
SIDE
IO (1394+USB+MIC+SP
12025FAN
8025FAN
MESH
5
