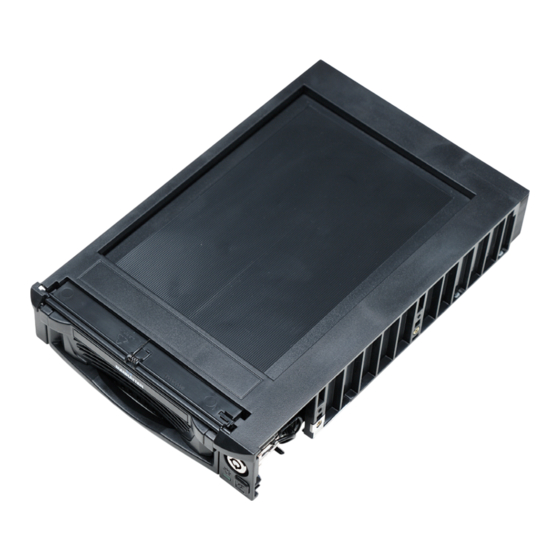

Page 1: Hard Drive
Hard drive docking kit user manual Models 451109 & 451123 MAN-451109/451123-UM-0707-01... - Page 2 Thank you for purchasing the MANHATTAN Hard Drive Docking Kit, ® Model 451109 or Model 451123 (aluminum case). The easy-to-follow instructions in this user manual help make setup and operation quick and simple, so you’ll also soon be enjoying the benefits of these additional features: •...
-
Page 3: Hardware Installation
Hardware installation The MANHATTAN Hard Drive Docking Kit is designed for installation in most PC cases with an available 5.25-inch drive bay. Generalized instructions for installation are presented in this manual since the design of computer cases varies. Refer to your computer’s manual whenever in doubt about procedures. - Page 4 3. Remove your computer’s cover. 4. Remove the computer’s front cover plate from the 5.25-inch drive bay in which you plan to install your MANHATTAN Hard Drive Docking Kit. 5. Remove (separate) the drive case from the docking case by lifting the handle and pulling it out.
- Page 5 Diagrams are representational of the entire line of MANHATTAN docking kits and may not depict specific cables/connectors. SATA Connector Power Connector Mounting a Drive in the Drive Case These steps are for installing a 3.5-inch drive device in the drive case.
- Page 6 3. The drive case’s SATA cable supports 3.5-inch drives. Attach the power and SATA cables from the drive case to the drive. The power connector is “D”-shaped to help orient the connector correctly. NOTE: In order to install a 2.5-inch drive, you need a 44-pin-to-40-pin connector adapter.
-
Page 7: Specifications
• Single rear-mount cooling fan, • Weight: 4 cm (1.5 in.) - Model 451109: 635 g (22.4 oz.) • LED indicators: Power & Activity - Model 451123: 760 g (27 oz.) Connections Environmental • Drive-to-tray: SATA power, • Operating temp.: 23 – 122˚F SATA L-type data (-5 –... - Page 8 Are you completely satisfied with this product? Please contact your MANHATTAN dealer ® with comments or questions. Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
