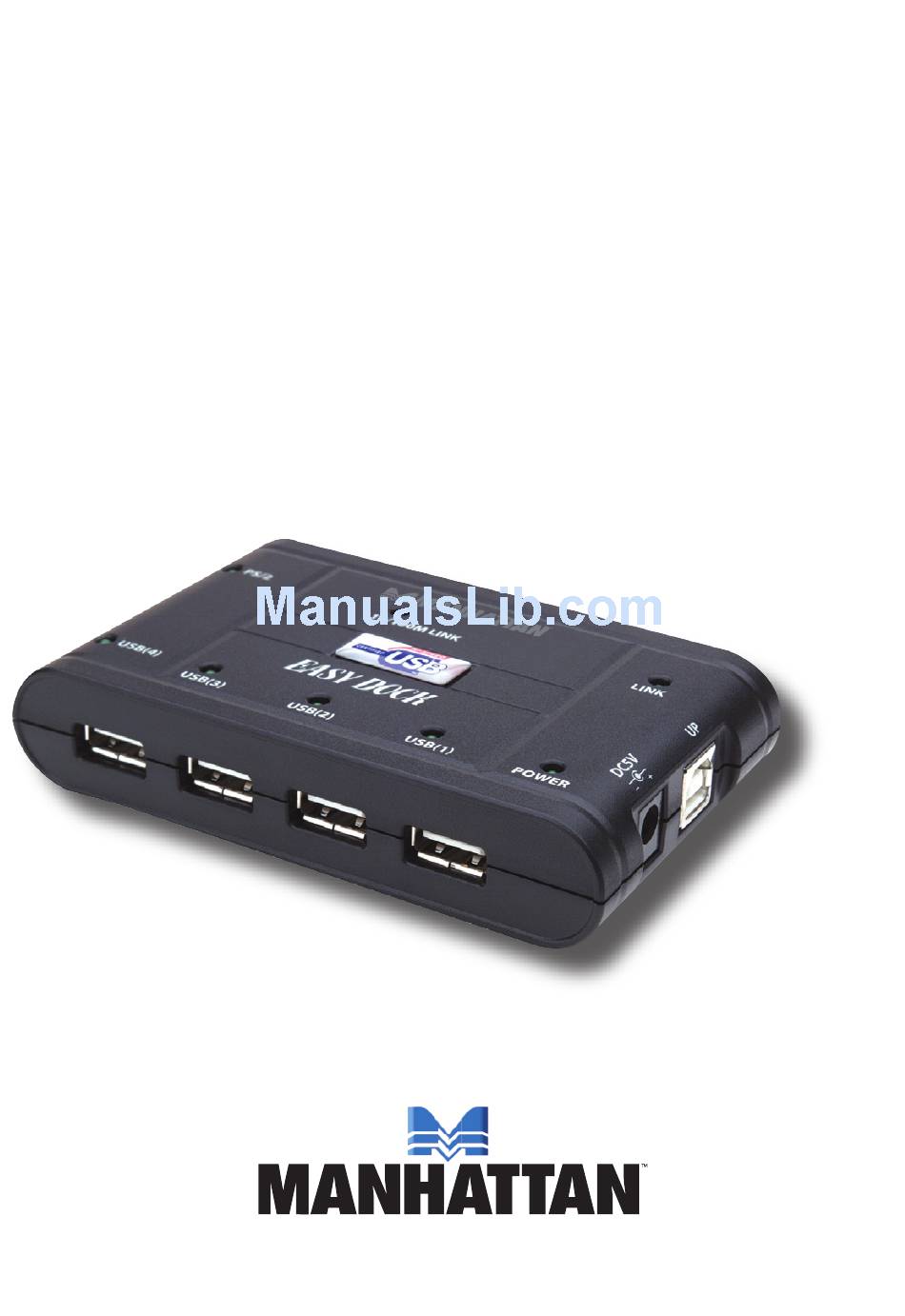

- Page 1 Easy Dock Multi-Port Docking station usEr Manual Model 172905 MAN-172905-UM-0208-01...
-
Page 3: System Requirements
Thank you for purchasing the MANHATTAN Easy Dock Multi-Port ® Docking Station, Model 172905. This convenient device replicates a wide range of ports with a single USB connection to easily install a monitor, mouse, keyboard, printer, Hi-Speed USB 2.0 and network devices with a convenient all-in-one solution. - Page 4 harDwarE POWER USB 1–4 PS/2 LINK 10/100M LINK LEDs • When the Easy Dock Multi-Port Docking Station is connected to the computer(s), all the LEDs will light to indicate a satisfactory link status. • When only the AC power adapter is connected to the docking station, the Power and PS/2 LEDs will light.
-
Page 5: Driver Installation
DrivEr installation Windows 98SE 1. Insert the enclosed driver CD into the computer’s CD-ROM drive. 2. Double-click the “Manhattn_EasyDock 4.00.040322.exe” program on the driver CD to begin the installation. 3. When the Welcome screen of the InstallShield Wizard displays, click “Next” to continue. - Page 6 9. When the Add New Hardware Wizard screen displays the “HUB Support for USB 2.0” search message, click “Next” to begin this part of the install. 10. When the “What do you want Windows to do?” message displays, select “Search for the best driver for your device,”...
- Page 7 21. When the “Windows will search for new drivers...” message displays, click “Next” to continue. This driver will install automatically. NOTE: If the Insert Disk prompt dislplays, insert the Windows 98SE startup disk. 22. When the Add New Hardware Wizard screen displays the “USB Human Interface Device”...
- Page 8 4. When the Information screen displays, click “Next” to continue. 5. When the first Complete screen displays, select “Yes, I want to restart my computer now.” Click “Finish.” 6. When the second of the Complete screens displays the “Setup has finished...”...
-
Page 9: Installation Verification
8. Connect the docking station to the computer(s) with the enclosed USB cable. NOTE: The A-type connector plugs into the docking station; the B-type connector plugs into the computer. 9. For Windows 2000: When the Digital Signature Not Found screen displays, click “Yes”... - Page 10 device,” “HID-compliant system control device” and “USB Human Interface” (twice). 3. Double-click “Keyboard” to show “HID-compliant keyboard.” 4. Double-click “Mouse” to show “HID-compliant mouse.” 5. Double-click “Network adapters” to show “ADM851X USB To Fast Ethernet Adapter.” 6. Double-click “Ports [COM & LPT]” to show “USB to Serial Port (COMx).” 7.
- Page 11 NOTE: In Winodows Me, a green question mark (?) may appear next to “HUB Support for USB 2.0” and/or “USB Composite Device.” This will not affect the installation or operation. Windows 2000/XP 1. Go to My Computer ‡ Control Panel ‡ System Properties ‡ Hardware ‡...
- Page 12 3. Double-click “Keyboard” to show “HID keyboard device.” 4. Double-click “Mice and other pointing devices” to show “HID-compliant mouse.”...
-
Page 13: Driver Un-Installation
5. Double-click “Network adapters” to show “ADM851X USB To Fast Ethernet Adapter.” 6. Double-click “Ports (COM & LPT)” to show “Prolific USB-to-Serial Com Port (COMx).” 7. Double-click “Universal Serial Bus controllers” to show “Generic USB Hub.” DrivEr un-installation Windows 98SE/Me 1. -
Page 14: Specifications
2. Select “USB 2.0 EASY DOCK.” 3. Click “Add/Remove.” 4. When the Confirm Uninstall screen displays, click “OK” to continue. 5. When the Maintenance Complete screen displays, click “Finish” to complete the driver un-installation. Windows 2000/XP 1. For Windows XP only Start Menu: Go to Start ‡ Control Panel ‡ Add or Remove Programs. - Page 16 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
