Summary of Contents for Manhattan 179102

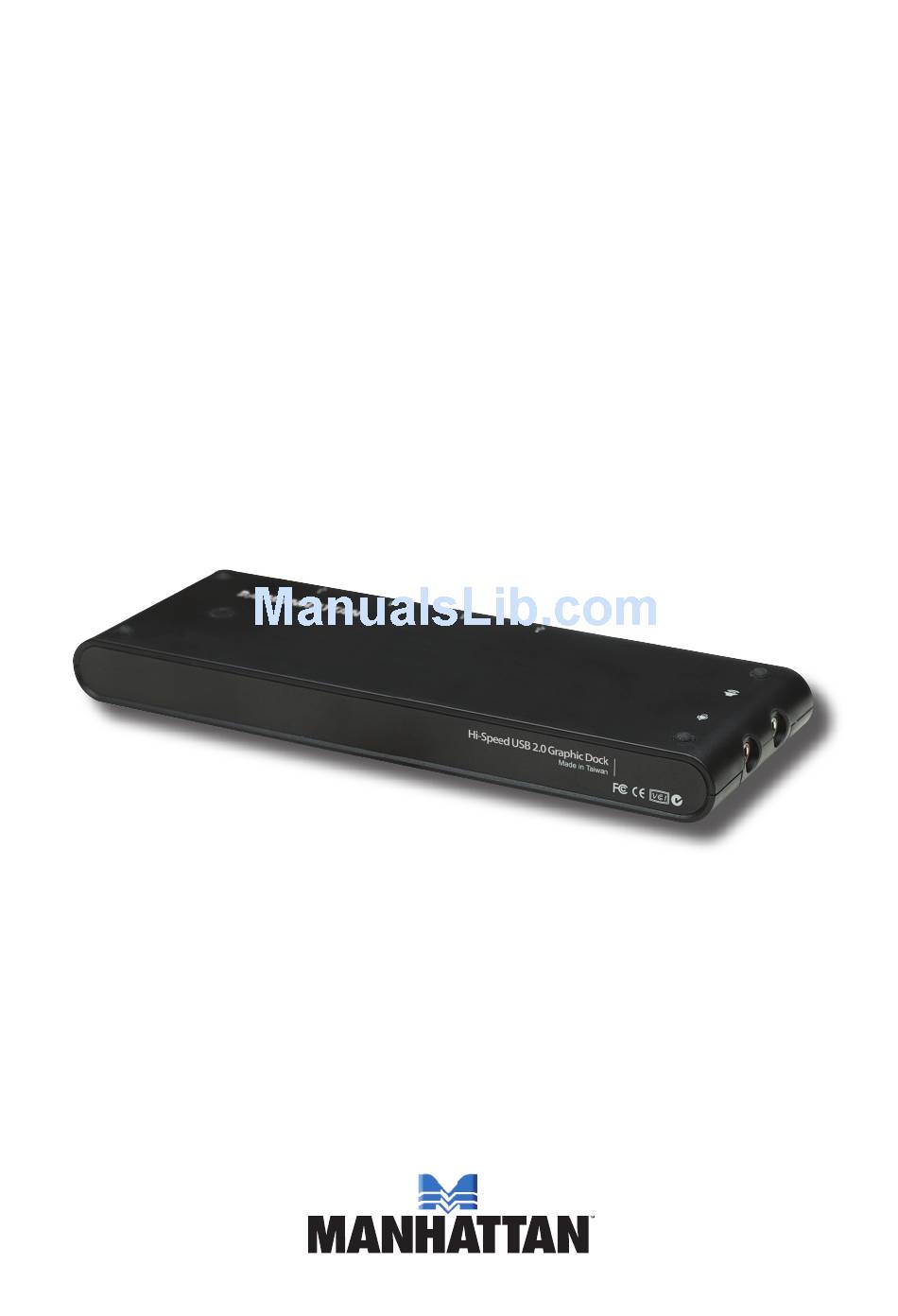

- Page 1 Multi-Port Docking Station with EnhancED ViDEo uSEr Manual Model 179102 MAN-179102-UM-0608-01...
-
Page 3: Regulatory Statements

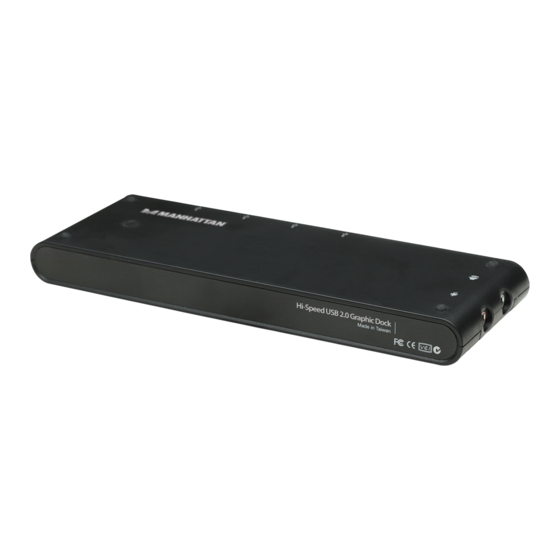

Thank you for purchasing the MANHATTAN Multi-Port docking Station with enhanced ® Video, Model 179102. This handy device replicates a wide range of ports with a single USB connection so you can easily install additional peripherals with a convenient all-in-one solution. Combined with primary, extended, rotation and mirror functions, it helps increase productivity, improve “desktop”... -
Page 4: Table Of Contents
tablE of contEntS section page INSTAllATIoN ........................5 Windows 2000/XP ......................5 driver Installation ..................... 5 Driver Installation Verification .................. 7 driver Uninstallation ....................8 Windows Vista ......................9 driver Installation ..................... 9 Driver Installation Verification ................10 driver Uninstallation ....................11 deVICe FUNCTIoNS ......................11 FReQUeNTly ASKed QUeSTIoNS &... -
Page 5: Installation
inStallation The four steps below comprise the basic procedure for quick installation. detailed procedures for specific operating systems are presented in subsequent sections. NOTE: do not connect the Multi-Port docking Station to your computer before completely installing the device’s driver (from the included Cd). - Page 6 4. Hardware and/or software installation warning screens may appear in Windows XP (like the example shown at right). Click “Continue Anyway” to proceed; there’ll be no affect on the driver installation or the operation of the device. 5. When the InstallShield Wizard Complete screen displays, select “yes, I want to restart my computer now”...
-
Page 7: Driver Installation Verification
8. In Windows XP, you may see the warning screen shown at right displayed. Click “Continue Anyway”; it won’t affect installation or the operation of the device. 9. Click “Finish” to complete the installation. Driver Installation Verification To confirm that the above installation procedure was successful, follow these steps: 1. -
Page 8: Driver Uninstallation
Driver Uninstallation Prior to removing the device driver from your computer, be sure that the Multi-Port docking Station has been disconnected from your PC or notebook. 1. In the desktop Start menu, go to Settings (in a classic Start menu only) → Control Panel → Add or Remove Programs. -
Page 9: Windows Vista
Windows Vista Driver Installation Installing the device driver enables your computer’s operating system to recognize the docking station and its ports once it’s connected. Check your operating system and refer to the appropriate installation procedure (here, or above for Windows 2000/XP) to begin installing the device driver. -
Page 10: Driver Installation Verification
Driver Installation Verification To confirm that the above installation procedure was successful, follow these steps: 1. In the desktop Start menu, go to My Computer → Properties → Device Manager. Click “View” and select “devices by connection.” 2. Click “Intel 82801GB USB2 enhanced Host Controller-27CC,”... -
Page 11: Driver Uninstallation
Driver Uninstallation Prior to removing the device driver from your computer, be sure that the Multi-Port docking Station has been disconnected from your PC or notebook. 1. In the desktop Start menu, go to Settings → Control Panel (in a classic Start menu only) → Programs and Features. -
Page 12: Extended Mode
Primary Mode The system’s main graphics adapter will automatically switch to act as the secondary graphics adapter, and the main screen will now work as the extended desktop. The monitor connected to the Multi-Port docking Station will now act as the primary Windows desktop. NOTE: Some display utilities and drivers found with certain AGP (accelerated graphics port) and built-in display adapters may prevent this option from working on some systems. - Page 13 This option simply disables the Multi-Port docking Station. Rotation This presents further options — “Right,” “left,” “Flip” or “Normal” — for setting the orientation of the secondary CRT/lCd monitor in extendedor Primary mode. FUNCTIoNS...
-
Page 14: Frequently Asked Questions & Operation Tips
Following are some frequently asked questions — and answers — regarding the installation or operation of the Multi-Port docking Station. Q: Why can’t I make the Hi-Speed Multi-Port Docking Station the primary display? A: Some video card manufacturers include a utility that prevents other video cards from being set as the primary card. -
Page 15: Specifications
SPEcificationS General • Four-port Hi-Speed USB 2.0 hub • (1) RJ45 10/100 Mbps network port • (1) SVGA (Hd15 F) port • (1) stereo headset jack • (1) microphone jack • Windows 2000/XP/Vista compatible • USB cable, 100 cm (39 in.) •... - Page 16 PC Components, ® Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
