Summary of Contents for Manhattan 130226

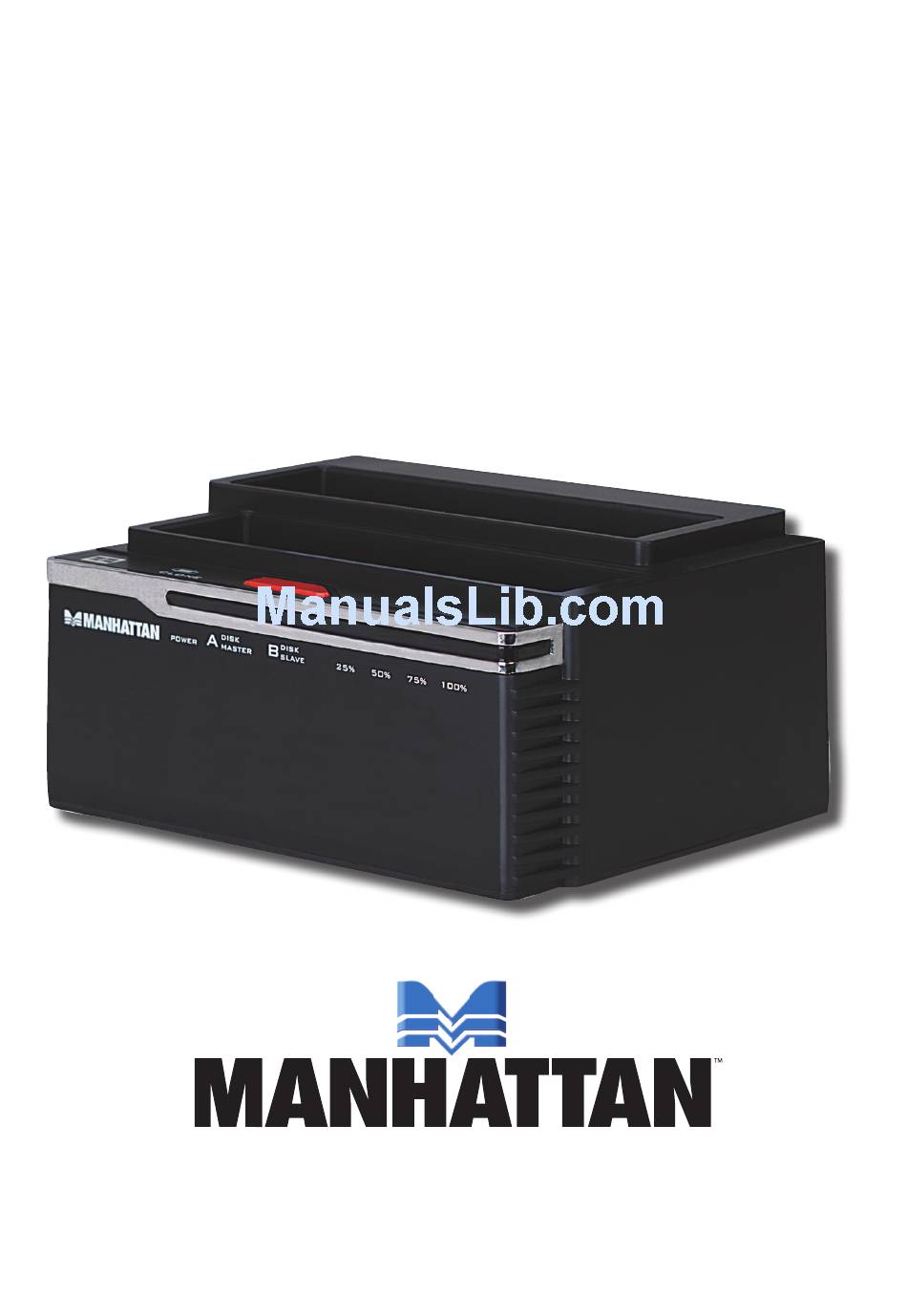

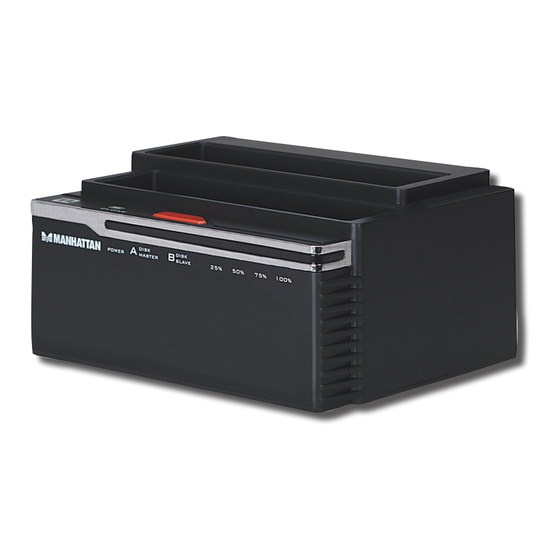

- Page 1 SATA QUICK CLONE DOCK USER MANUAL MODEL 130226 MAN-130226-UM-0311-02...
- Page 2 Take extra precautions against electrical discharges when swapping hard-disk drives. Use the eject button to properly disconnect and remove a drive. Do not handle the drive by its sensitive components or place near speakers, televisions or other magnetic devices. MANHATTAN accepts no responsibility for lost data.
-
Page 3: Rear View Connections
BASIC SETUP & OFFLINE (UNATTACHED) OPERATION Before using the SATA Quick Clone Dock, note the following features and requirements to ensure smooth and successful operation. • Bay A is where you insert the source (master) hard-disk drive (HDD) • Bay B is where you insert the target (slave) hard-disk drive •... -
Page 4: Front View: Led Indicators
Top view: HDD bays 2. Insert the source HDD in Bay A and the target HDD n Bay B. NOTE: The capacity of the Bay A target (slave) HDD must be (master/source) greater than the capacity of the source (master) HDD; otherwise, the cloning can not be properly completed. - Page 5 ONLINE (ATTACHED) OPERATION The included software needs to be installed in order to operate the SATA Quick Clone Dock in conjunction with your computer. Before you begin, write down the serial number (printed on the software CD label or sleeve), as you’ll need to enter it in Step 5 below.
- Page 6 5. On the second screen, enter the serial number as it appears on the label of the software CD. Click “Install” to continue. 6. A status screen will display to indicate the progress of the application installation. Click “Done” when the process is complete.
- Page 7 7. Insert the source HDD in Bay A and the target HDD in Bay B. NOTE: The capacity of the target (slave) HDD must be greater than the capacity of the source (master) HDD; otherwise, the cloning can not be properly completed. 8.
- Page 8 12. A status screen will display to indicate progress of the operation. Click “OK” when the status bar reads 100% and the operation is complete. 13. The next screen should indicate that the contents of the target HDD are now the same as the source HDD.
- Page 9 14. If the target HDD has extra space, the system will automatically allocate it to an unallocated area, as shown below. NOTE: Windows allows a maximum of only four primary partitions. If the original disk already has four primary partitions, then it can not distinguish the extra space.
-
Page 10: Specifications
SPECIFICATIONS Standards and Certifications • Compliant with USB 3.0 and SATA Revision 2.6 • CE • RoHS • WEEE General • Connections: external, DC power input, USB 3.0 Micro-B; internal, (2) SATA data and power • Dual insertion slots fits 2.5” and 3.5” SATA HDD •... -
Page 11: Waste Electrical And Electronic Equipment
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. - Page 12 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
-
Page 13: Warranty Information
ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Póliza de Garantía MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •... - Page 14 R&TTE ENGLISH This device complies with the requirements of the R&TTE Directive 1999/5/EC. DEUTSCH Dieses Gerät enspricht der Direktive R&TTE Direktive 1999/5/EC. ESPAÑOL Este dispositivo cumple con los requerimientos de la Directiva R&TTE 1999/5/EC. FRANÇAIS Cet appareil satisfait aux exigences de la directive R&TTE 1999/5/CE. POLSKI Urządzenie spełnia wymagania dyrektywy R&TTE 1999/5/EC.
- Page 15 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
