Summary of Contents for SOYO SY-7IWB

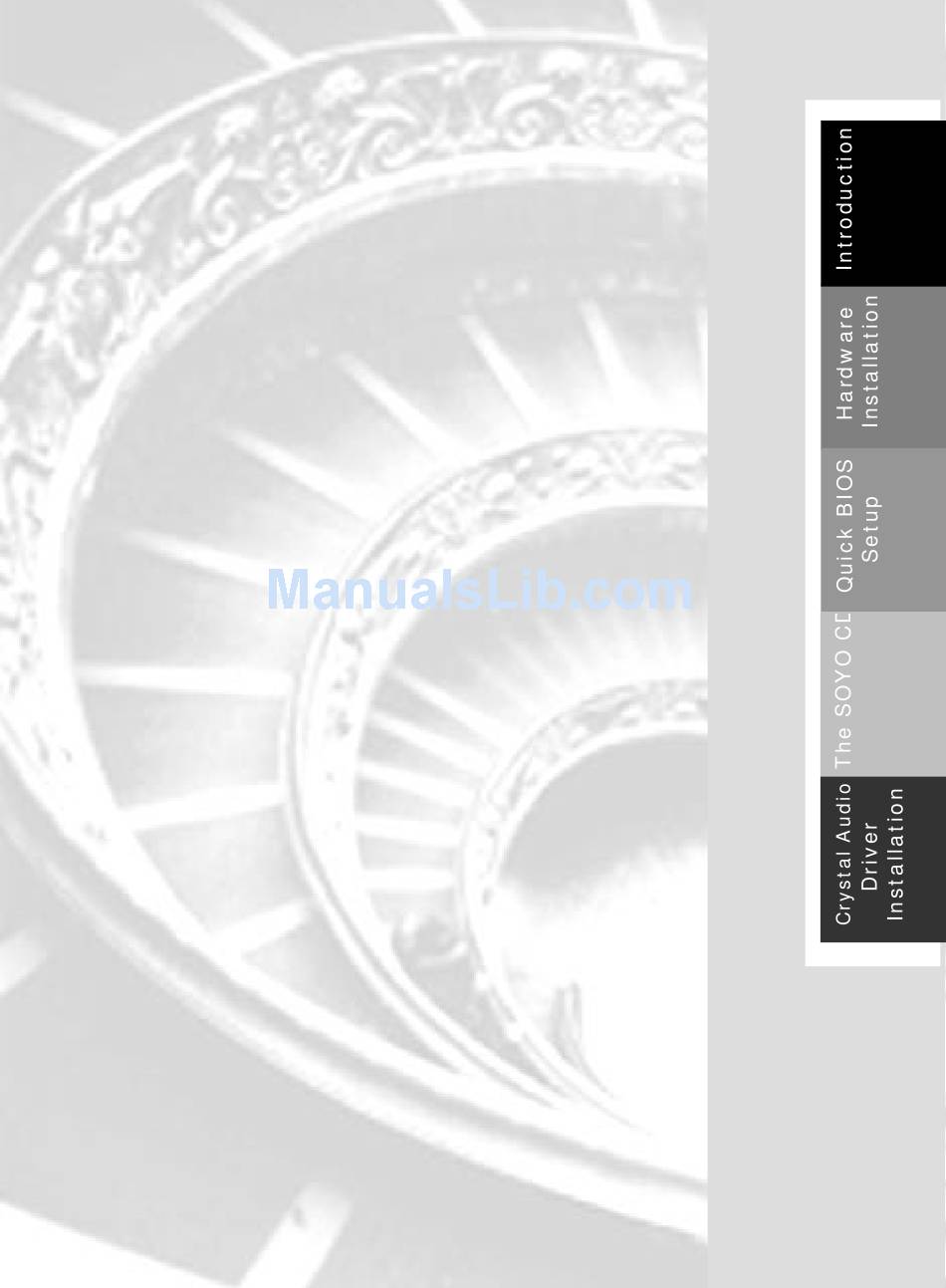

- Page 1 SY-7IWB Motherboard Quick Start Guide...
- Page 2 It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or to cause others to infringe upon such rights.
- Page 3 SY-7IWB Quick Start Guide Introduction Congratulate on your purchase of the SY-7IWB Motherboard. This Quick Start Guide illustrates the steps for installing and setting up your new Motherboard. This guide provides all users with the basic steps of Motherboard setting and operation. For further information, please refer to SY-7IWB Motherboard Uses’...
-
Page 4: Sy-7Iwb Motherboard Layout
SY-7IWB Quick Start Guide SY-7IWB Motherboard Layout JP44 PS/2 Mouse COM 2 Connector Header Connector Ac97 Winbond Codec W83627HF PRT 1 COM 1 ATX Power AMR1 JP15 AT Power CPU FAN Audiuo Port PCI Slot #1 USB1 PCI Slot #2... -
Page 5: Key Features
SY-7IWB Quick Start Guide Key Features Supports Intel Celeron ™ processors Power failure resume Ø Ø (300A-500MHz) Ø Supports onboard hardware monitoring Supports 100 & 66 MHz Front Side Bus and includes Hardware Doctor ™ utility Ø Frequency Ø Fan speed control Auto detect CPU bus Frequency (66/100) Ø... -
Page 6: Installation
Follow the directions in this section which is designed to guide you through a quick and correct method to install your new SY-7IWB Motherboard. For detailed information, please refer to SY-7IWB Motherboard User's guide and Technical Reference online manual enclosed in the CD-ROM package with your Motherboard. -
Page 7: Install The Motherboard
SY-7IWB Quick Start Guide Install the Motherboard To perform the installation of your new SY-7IWB Motherboard, follow the steps below CPU Installation Step 1. Record the working frequency of your CPU Mark your CPU Frequency: that should be clearly marked on the CPU cover. -
Page 8: Connections To The Motherboard
Chassis Fan, Front Panel Devices (ACPI LED, Internal Speaker, Reset Button, IDE LED, and KeyLock Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices. For more details on connecting internal and external peripherals to your new SY-7IWB Motherboard, please refer to SY-7IWB Motherboard User's Guide and Technical Reference online manual on CD-ROM. -
Page 9: Memory Configuration Table
SY-7IWB Quick Start Guide Configure Memory Step 3. Your board comes with three DIMM sockets, and provides support up to 512MB main memory using PC100 DIMM modules from 8MB to 256MB. Memory Configuration Table Number of DIMM 1 DIMM 2... - Page 10 1 2 3 Note: The “ Manual” mode setting facilitates FSB over-clocking. Doing so will however force your CPU to operate out of its specifications, and therefore SOYO can not guarantee the proper function of your system. Set the CPU Frequency Step 5.
- Page 11 In case your CPU is running on a frequency higher then it is specified for, increasing its core voltage can enhance its stability. Over-clocking your CPU does however force your system to operate outside of its specifications, and therefore SOYO can not guarantee system stability.
- Page 12 4. Press the <Del> key during the system diagnostic checks to enter the Award BIOS Setup program. 5. Select [Soyo Combo Feature] and move the cursor to the [CPU Frequency] field to set the proper working frequency. 6. Select [Save & Exit SETUP] and press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.
-
Page 13: Quick Bios Setup
Instead, CPU settings are software configurable with the BIOS [Soyo Combo Feature]. The [Soyo Combo Feature] menu combines the main parameters that you need to configure. They are all in one menu to enable a quick setup in BIOS. - Page 14 Motherboards and other products. Step 1. Insert the SOYO CD into the CD-ROM drive The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be shown as below. (SOYO CD Start Up Program Menu) If you use Windows 95/98, the SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.
- Page 15 However, to display the list of all drivers software available with SOYO Motherboards, click the Display all drivers on the SOYO CD button. Please make sure to install only the drivers adapted to your system, or otherwise this may cause system malfunctions.
- Page 16 SY-7IWB Quick Start Guide Driver Installation Please select the driver you want to install and click OK, You will have to restart your system after installation. Only the drivers that are relevant to your board are displayed initially. Intel Whitney VGA Drivers for Win 9x Intel .inf utility for Win 9x...
- Page 17 SY-7IWB Quick Start Guide Note: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.
-
Page 18: Crystal Audio Driver Installation
SY-7IWB Quick Start Guide Crystal Audio Driver Installation Installing Crystal Audio Drivers under windows 9x 1. Open Device Manager. 2. PCI Multimedia Device will have a yellow marker the first time the operating system is installed. 3. Select "Properties" on the yellow marker. - Page 19 Note: The above limitations list is as provided by the codec manufacturer, SOYO will provide customers with new driver releases through the SOYO website as soon as they are released by the manufacturer. Installing Crystal Audio Drivers for Windows NT 1.
- Page 20 SY-7IWB Quick Start Guide How to contact us: If you are interested in our products, please contact the SOYO sales department in the region you live. If you require Technical Assistance, please contact our Technical Support in the region you live.
- Page 21 SY-7IWB Quick Start Guide E-Mail: support@soyo.co.uk Sales: tel: 852-27109810 SOYO Deutschland GmbH fax: 852-27109078 E-mail: soyo@hkstar.com August-Wilhelm-Kuhnholz-Str. 15 D-26135 Oldenburg Technical Support: Region Covered: Germany, Austria tel: 852-27109810 and Switzerland. (Zustandig fur fax: 852-27109078 Deutschland, Osterreich, Schweiz) E-mail: soyo@hkstar.com Web Site: www.saat.de, www.soyo-...
- Page 22 Edition: July 1999 Version 1.0 SY-7IWB SERIAL...
