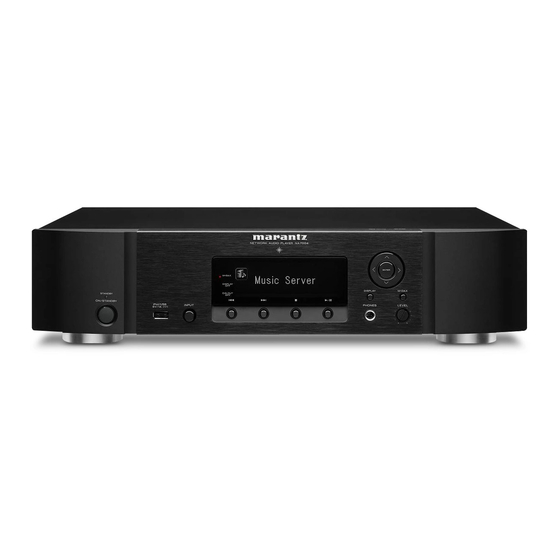

Marantz NA7004 User Manual
Network audio player
Hide thumbs
Also See for NA7004:
- User manual (40 pages) ,
- Command reference manual (13 pages) ,
- Brochure (2 pages)
Related Manuals for Marantz NA7004
Summary of Contents for Marantz NA7004

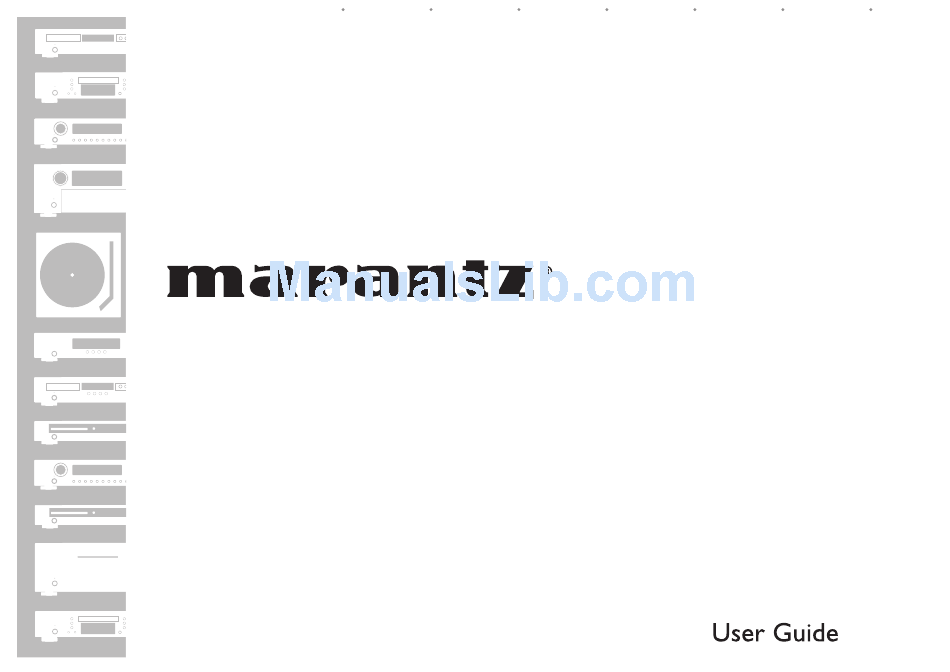

- Page 1 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH Network Audio Player NA7004...
-
Page 3: Important Safety Instructions
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH IMPORTANT SAFETY SAFETY PRECAUTIONS CAUTION: INSTRUCTIONS To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. CAUTION Read these instructions. The mains plug is used to completely interrupt the power supply to RISK OF ELECTRIC SHOCK Keep these instructions. - Page 4 ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO / NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA ANGÅENDE ANVÄNDNINGEN WARNINGS WARNHINWEISE AVERTISSEMENTS AVVERTENZE ADVERTENCIAS WAARSCHUWINGEN VARNINGAR •...
- Page 5 Batterier får absolut inte kastas i soporna eller brännas. Kassera dem enligt lokala bestämmelser som t.ex. en bokhylla eller liknande. Marantz Europe för kemiskt avfall. • Mer än 0,1 m rekommenderas. A division of D&M Europe B.V.
- Page 6 Вы приобрели устройство радиоприемное/проигрываюшее диски производства компании “D&M Холдингс Инк”, Япония (“D & M Holdings Inc.”, Japan). Модель NA7004 является CD-ресивером и предназначена для приема радиовещания и проигрывания CD в домашних аудиосистемах. Это изделие широко известно в кругах истинных ценителей высококлассного звука. Качество и безопасность подтверждены множеством тестов, проведенных как зарубежными, так и российскими...
-
Page 7: Table Of Contents
Input source switching ·······························································10 Menu map ····················································································22 M-DAX The wireless receiver connection ··············································23 Index ··························································································42 (Marantz Dynamic Audio eXpander) ···········································10 Remote control jacks connection ··············································23 Switching the display’s brightness ·············································11 Remote control connection ························································23 Listening with headphones·························································11 Setting the remote control ··························································23 Setting the digital output ····························································11... -
Page 8: Getting Started
ENGLISH Getting started Thank you for purchasing this Marantz product. To ensure proper Main features Cautions on handling operation, please read this user guide carefully before using the product. After reading the guide, be sure to keep it for future reference. -
Page 9: About The Remote Control
ENGLISH About the remote control Inserting the batteries Operating range of the remote control Operate the remote control while pointing it at the remote sensor. q Remove the rear cover of the w Set two R03/AAA batteries in remote control. the battery compartment in the indicated direction. -
Page 10: Connections
ENGLISH Connections This section explains how to make connections for all of the Analog connections Digital connections supported audio signals. For other connections, see the sections below. When connecting, use a commercially available optical digital cable or Cables used for connections n The wireless receiver connection (vpage 23) coaxial digital cable. -
Page 11: Digital Audio Input
ENGLISH Digital connection PC connection Connecting an antenna When connecting the optical digital output connector By connecting a computer to the USB port on the rear panel of this FM/AM with an optical transmission cable (sold separately) unit using a commercially available USB connecting cable, this unit can be used as a D/A converter. -
Page 12: Dab
DAB indoor antenna Loop Projecting forward. antenna (Supplied) Marantz website. part • See “Setting the network [Network]” (vpage 24) on the menu for Insert the projecting part more information on network setting. into the square hole in Cables used for connections the stand. -
Page 13: Required System
No additional contract is needed if you already have a broadband connection to the Internet. • The types of routers that can be used depend on the ISP. Contact an ISP or a computer shop for details. • Marantz assumes responsibility whatsoever communication errors or troubles resulting from customer’s network... -
Page 14: Connecting A Usb Memory Device
• Do not use the iPod stand for purposes other than the one it is intended to perform. • Marantz will accept no responsibility whatsoever for any damage of equipment connected to this unit while it is used. -
Page 15: Connecting Other Equipment
ENGLISH Connecting other equipment Connecting the power cord n RS-232C Do not plug in the power cord until all connections have been completed. Connect an external control device or other device for servicing. (Use a straight cable for the connection.) To household power outlet (AC 230 V, 50/60 Hz) External control device... -
Page 16: Basic Operations
M-DAX M-DAX Turning the power off (Marantz Dynamic Audio eXpander) [MODE] Press ON/STANDBY This function makes up for lost audio content in MP3 or AAC sources Power is set to standby and the power indicator lights. -
Page 17: Switching The Display's Brightness
ENGLISH Operations possible during playback Tuner playback [Using the remote controller] Setting the digital output Tuning in Broadcast Stations M-DAX Press the button. Each time this button is pressed, M-DAX changes as follows. Set to output from the rear panel DIGITAL OUT terminal (COAXIAL, Connect the antenna beforehand (vpage 5). -
Page 18: Automatically Presetting Fm Stations (Auto Preset)
ENGLISH Tuner playback Symbols used to indicate buttons in this guide Automatically presetting FM stations Presetting FM/AM stations manually Button located on both the main unit and the remote control (Auto preset) BUTTON This unit can be preset with a total of 99 DAB, FM and AM broadcast <BUTTON>... -
Page 19: Calling Stations Reqistered In Preset List
ENGLISH Tuner playback Listening to DAB/DAB+ Calling stations reqistered in Preset List n About DAB (Digital Audio Broadcasting) (vpage 37) Switching the reception information for the Press [ENTER/MEMO] <ENTER> n About DAB+ (vpage 37) currently tuned in DAB station “Preset” menu appears. Tuning in DAB stations Perform steps 1 to 2 under “Tuning in DAB stations”... -
Page 20: Ipod ® Playback
<BUTTON> Button only on the main unit For the supported iPod models, see “Connecting an iPod” (vpage 7). • Marantz will accept no responsibility whatsoever for any loss of iPod [BUTTON] Button only on the remote control n iPod ® (vpage 36) data. -
Page 21: Playing Random Order (Random Playback)
• This unit is compatible with MP3 fi les conforming to “MPEG-1 Audio Layer-3” standards. Artist name NOTE n To switch the display • Note that Marantz will accept no responsibility whatsoever for any Album name problems arising with the data on a USB memory device when using During playback, press DISPLAY this unit in conjunction with the USB memory device. -
Page 22: Network Audio Playback
ENGLISH Network audio playback Symbols used to indicate buttons in this guide Follow this procedure to play Internet radio stations or music fi les n Switching the display Button located on both the main unit and the remote control stored on a computer BUTTON <BUTTON>... -
Page 23: Playing Fi Les Stored On A Music Server
ENGLISH Playing a network audio n Internet radio operation • Before starting, you must launch the computer’s server software and set the fi les as server contents. For details, see the operating If the list is not in alphabetical order, you may not be able to perform instructions of your server software. -
Page 24: Listening To Napster
ENGLISH Playing a network audio Symbols used to indicate buttons in this guide n Last.fm operation to select menu and then press [ENTER/ Button located on both the main unit and the remote control BUTTON MEMO] <ENTER> Operation buttons Function <BUTTON>... -
Page 25: Using As A D/A Converter
ENGLISH Connecting and playing back from a Playing a network audio n Entering a character search for the track you n Napster operation computer (USB) want to listen to Connect a computer to the USB port on the rear panel of this unit Operation buttons Function in advance. -
Page 26: Favorite Function
ENGLISH Favorite function Symbols used to indicate buttons in this guide Button located on both the main unit and the remote control Deleting Internet radio stations, fi les This section provides information on the Favorite function. BUTTON registered or tuners in Favorite List <BUTTON>... -
Page 27: Advanced Operations
ENGLISH Advanced operations Tuner playback PTY (Program Type) TP (Traffi c Program) RDS (Radio Data System) PTY identifi es the type of RDS program. TP identifi es programs that carry traffi c announcements. RDS (works only on the FM band) is a broadcasting service which The program types and their displays are as follows: This allows you to easily fi... -
Page 28: Menu Map
ENGLISH Menu map Symbols used to indicate buttons in this guide Button located on both the main unit and the remote control Setting items Detailed items Description Page BUTTON Network Performs the wired connection settings. <BUTTON> Button only on the main unit DHCP Performs the DHCP setting. -
Page 29: The Wireless Receiver Connection
By connecting a wireless receiver RX101 (sold separately) to this unit, receives operation signals sent from the amplifi er and operates to the unit and the Marantz amplifi er. Be sure to set “IR=Disable” when you can receive and playback audio signals from other devices using accordingly. -
Page 30: Setting The Network [Network]
ENGLISH Setting the network [Network] Symbols used to indicate buttons in this guide Button located on both the main unit and the remote control Network connecting (DHCP=Off) When using this unit with the broadband router’s DHCP function BUTTON enabled, this unit automatically performs the IP address setting and <BUTTON>... -
Page 31: Proxy Settings
ENGLISH Setting the network [Network] n Starting the party mode as the organizer Last.fm Display Proxy Settings Set whether or not to display Last.fm item on the menu. Press Make this setting when connecting to the Internet wia to proxy server. [MENU] Turns on the Menu settings mode and the Menu appears on Press... - Page 32 ENGLISH Setting the network [Network] n Participating in the party mode as an attendee Selecting tracks from attendees Symbols used to indicate buttons in this guide • When the organizer starts the party mode, up to four attendees When the party mode starts, “Party Mode Attendee” appears on the are selected automatically.
-
Page 33: Network Standby
ENGLISH Setting the network [Network] Canceling the party mode Network Standby PC Language Set the network function On/Off during standby. Select computer environment language. Press [MENU] Turns on the Menu settings mode and the Menu appears on Press Press [MENU] [MENU] the display. -
Page 34: Zone Management Function
ENGLISH Setting the network [Network] Zone Management Function Update Notifi cation Symbols used to indicate buttons in this guide Displays a notifi cation message on this unit’s menu screen when With “Device Control” of “Zone Management” menu, the network Button located on both the main unit and the remote control the latest fi... -
Page 35: Upgrade Notifi Cation
ENGLISH Setting the network [Network] Setting the DAB [Tuner] Upgrade Notifi cation Making the DAB settings Display a notifi cation message on this unit’s menu screen when Press during DAB reception. [MENU] downloadable fi rmware is released with “Add New Feature”. Connect Turns on the Menu settings mode and the Menu appears on the to broadband Internet (vpage 6) when using this function. -
Page 36: Setting The Others [Other]
ENGLISH Setting the others [Other] Symbols used to indicate buttons in this guide Button located on both the main unit and the remote control Auto standby Firmware update BUTTON With the Auto standby ON, this unit will automatically enter the <BUTTON>... -
Page 37: Add New Feature
• Information regarding the “Firmware Update” function and “Add : Execute the upgrade process. Upgrade New Feature” will be announced on the Marantz web site each time • If the upgrade is not successful, an error message identical to those related plans are defi ned. -
Page 38: Other Functions
Use o p to set the cursor to the character you want GFriendly Name EditH to change. [Frienly Name Edit] Use ui to change the character. Marantz:[NA7004] : select : move • The types of characters that can be input are as shown below. G Upper case charactersH... -
Page 39: Web Control Function
ENGLISH Other functions Web control function Last function memory You can operate this unit using a browser of PC. This stores the settings as they were immediately before going into the standby mode. Switch the “Network Standby” setting to “ON”. When the power is turned back on, the settings are restored to as (vpage 27). -
Page 40: Information
ENGLISH Information Part names and functions For buttons not explained here, see the page indicated in parentheses ( ). Front panel i o Q0 Q1 Q2 Cursor buttons (uio p) ························································ (12) Power operation switch (ON/STANDBY) ····························· (10) Power indicator (STANDBY) ·················································· (10) ENTER button ··········································································... -
Page 41: Rear Panel
HOME button ·············································· (14) CLEAR button ············································· (32) DISPLAY button ·········································· (13) REPEAT button ··········································· (14) • The supplied remote control can operate Marantz amplifi ers. • When using it, also refer to the operating instructions of the other devices. -
Page 42: Ipod
CD, etc. on a computer may be copyright protected, depending on the NOTE computer’s settings. • Marantz will accept no responsibility whatsoever for any loss of iPod data. GCompatible formatsH • Depending on the type of iPod and the software version, some... -
Page 43: Dab/Dab
Your new Marantz Network player is very clever. You can create MP3 (MPEG-1 Audio a free Last.fm profi le when you start using your Marantz Network Layer-3) player and magically keep track of all the songs you hear. -
Page 44: Explanation Terms
ENGLISH Explanation terms • Neither the name of the Xiph.org Foundation nor Windows Media Player Ver. 11 the names of its contributors may be used to This is a media player distributed free of charge by A2DP Sampling frequency endorse or promote products derived from this Microsoft Corporation. -
Page 45: Troubleshooting
ENGLISH GRemote controlH Troubleshooting Symptom Cause Countermeasure Page Set does not • Batteries are worn. • Replace with new batteries. If a problem occurs fi rst check the following: work properly • You are operating outside of the • Operate within the specifi ed 1. - Page 46 – Cannot connect • Radio station is not currently • Wait a while before trying again. the set cannot recognize is Marantz does not guarantee that to preset or broadcasting. • It is not possible to connect to connected. all USB memory devices will favorite radio •...
- Page 47 ENGLISH Symptom Cause Countermeasure Page The music is not • When you played all tunes of the • Select another playlist. – played. playlist. (“No more tacks” is displayed.) Cannot access • Cannot access the network. • Confi rm your network environment. Last.fm.
-
Page 48: Specifi Cations
ENGLISH Specifi cations Index n Audio section • Analog output A2DP ··········································23, 38 Input source ·····································10 TP ·····················································21 Channels 2 channels Accessories ········································2 Inputting characters ·························32 Playable frequency range 2 Hz – 96 kHz Add new feature ······························31 Internet radio ····································16 Playable frequency response 2 Hz –... - Page 49 GDimensions (unit: mm)H...
- Page 50 D&M Holdings Inc. Printed in China 5411 10516 30AM...
