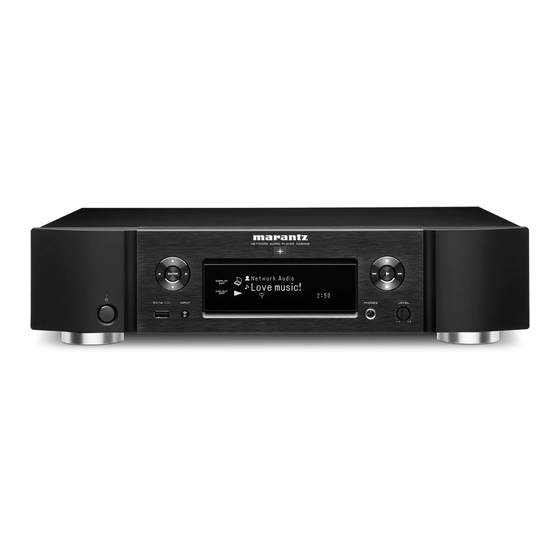

Marantz NA8005 Service Manual

Network audio player
Hide thumbs Also See for NA8005:
Table of Contents

Advertisement

Quick Links

Download this manual
Service
Manual
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0844-1V01DM/DG1406
All manuals and user guides at all-guides.com
NA8005
NA8005 /
N1B, N1SG, U1B, K1B, FN
Network Audio Player
Ver. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA8005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz NA8005

Summary of Contents for Marantz NA8005

  • Page 1 All manuals and user guides at all-guides.com NA8005 / N1B, N1SG, U1B, K1B, FN Service Manual Network Audio Player • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents ABOUT THIS MANUAL .............3 What you can do with this manual ..........3 Using Adobe Reader (Windows version) ........4 SAFETY PRECAUTIONS ............6 NOTE FOR SCHEMATIC DIAGRAM .........7 NOTE FOR PARTS LIST ............7 TECHNICAL SPECIFICATIONS ..........9 DIMENSION ................9 Precautions During Service...........10 DISASSEMBLY ................6...

  • Page 3: About This Manual

    All manuals and user guides at all-guides.com ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    All manuals and user guides at all-guides.com Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed wiring board diagrams - 1 The Sign function lets you add notes to the data in (Ctrl+Space, mouse operation) this manual.
  • Page 5 All manuals and user guides at all-guides.com Magnify schematic / printed wiring Magnify schematic / printed wiring board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) The Loupe Tool function lets you magnify a specific The Pan &...

  • Page 6: Safety Precautions

    All manuals and user guides at all-guides.com SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 7: Note For Schematic Diagram

    All manuals and user guides at all-guides.com NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.
  • Page 8 All manuals and user guides at all-guides.com Personal notes:...

  • Page 9: Technical Specifications

    All manuals and user guides at all-guides.com TECHNICAL SPECIFICATIONS n Audio performance • Digital input Coaxial: 0.5 Vp-p / 75 Ω/ohms • Analog output Optical : -27 dBm or lator Channels: 2-channels USB (Front): USB Type A (USB 2.0 High speed) Playable frequency range: 2 Hz - 96 kHz USB (Rear):...

  • Page 10: Precautions During Service

    All manuals and user guides at all-guides.com PRECAUTIONS DURING SERVICE Initializing This Unit Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer. Disconnect the AC plug of this unit to turn the power off. When executing the initialization (User Reset) described in the Owner's Manual.

  • Page 11: Disassembly

    All manuals and user guides at all-guides.com DISASSEMBLY • Remove each part in the order of the arrows below. • Reassemble removed parts in the reverse order. • Read "Precautions During Work" before reassembling removed parts. • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work.
  • Page 12 All manuals and user guides at all-guides.com 1. FRONT PANEL ASSY Proceeding: CABINET TOP → FRONT PANEL ASSY Remove the screws. Bottom side Remove the connector wires and FFC. Remove the screws. カッ ト CN81 CN19 FFC Cable See "EXPLODED VIEW" for instructions on how to remove each PCB of the FRONT PANEL ASSY.
  • Page 13 All manuals and user guides at all-guides.com 2. DIGITAL PCB Proceeding: CABINET TOP → DIGITAL PCB Remove the screws. Remove the screws.Remove the connector wires and FFC. DIGITAL PCB CN15 FFC Cable FFC Cable カッ ト CN14...
  • Page 14 All manuals and user guides at all-guides.com 3. SMPS PCB Proceeding: CABINET TOP → SMPS PCB Remove the screw. Shooting direction A Remove the screws. Remove the connector wires and FFC. カッ ト CN92 CN93 SMPS PCB CN91 4. POWER PCB →...
  • Page 15 All manuals and user guides at all-guides.com 5. AUDIO PCB Proceeding: CABINET TOP → AUDIO PCB Remove the screws. Shooting direction A Remove the connector wires and remove the screws. CN98 CN81 AUDIO PCB FFC cable...

  • Page 16: Special Mode

    All manuals and user guides at all-guides.com SPECIAL MODE Special Mode Configuration Buttons Turn on the AC plug while pressing the button of A and B at the same time. No.1 - No.10 : No.11:Hold down buttons A and B for at least 3 seconds while the power is on. Each button continue to press until the lit of ON/STANDBY LED.

  • Page 17: Factory Initialization Mode (Factory Reset)

    Initialization Items (Default setting) Default INPUT Internet Radio DIMMER 100% Favorite list Clear all iPod mode Direct mode AUTO STANDBY N：ON Others： OFF Protection history NO PROTECT Network setting DHCP (On) Network Standby Friendly Name Marantz NA8005 Digital Out 232C STANDBY...

  • Page 18: Initialization Mode (User Reset)

    All manuals and user guides at all-guides.com 2. Initialization Mode (User Reset) Backup data initialization is carried out. Refer to Initialization Items. After initialization, move on to normal mode. *Can erase the Recently Played List. CAUTION The difference is the following points. Version information (such as rewriting failed log) not cleared.
  • Page 19 All manuals and user guides at all-guides.com Press Cursor i buttom. Image version for the network microprocessor is displayed. Press Cursor i buttom. USB-DAC version is displayed. Press Cursor i buttom. Sireal number is displayed. (Serial: MZ_bccdddddd)

  • Page 20: Product Mode2

    All manuals and user guides at all-guides.com 4. Product Mode2 Startup display "Product Mode2" is displayed for 5 seconds. The following settings for checking operation when the unit is manufactured are configured automatically. ・Sleep setting : 4 minutes ・Auto standby timer setting : 4 minutes A 4-minute timer operates when the sleep setting is configured.

  • Page 21: Dpms Force Update Mode

    All manuals and user guides at all-guides.com 6. DPMS Force Update Mode Updating the firmware by DPMS. "2. Updating by DPMS" on page Error code table • Preparation operation rewritten, Update error code checking. (Check ETHERNET unit) Error Code Details of Error code Coping strategies Login failed(DPMS Access Login Incorrect notification) Reset and update again.
  • Page 22 All manuals and user guides at all-guides.com DownLoad failure(Download error (connection failed) Turn off and on the power. Updating starts automatically. Carry information recived) out the update in an environment that has little network load. Failed to acquire the IP Address after transitioning to "Turn off and on the power.

  • Page 23: Update Mode (By Rs232C)

    All manuals and user guides at all-guides.com 7. Update Mode (by RS232C) The firmware update using PC via RS232C. Upgrade by DPMS. No display. To exit this mode, unplug the power cord. 8. MAC Address Rewrite Mode Rewriting the MAC address mode. Production / development for, there is no detailed description.
  • Page 24 All manuals and user guides at all-guides.com Personal notes:...

  • Page 25: Procedure After Replacing The Microprocessor, Etc

    All manuals and user guides at all-guides.com PROCEDURE AFTER REPLACING THE MICROPROCESSOR, ETC. The procedure after replacing the u-COM (microprocessor), flash ROM, etc. is as follows. Procedure after PCB Name Ref. No. Description 備考 Replacement MAIN IC11 R5F56108VNFP Main H27U1G8F2BTR-BC MAIN IC24 Network...

  • Page 26: Updating By Dpms

    All manuals and user guides at all-guides.com 2. Updating by DPMS Download the latest firmware from the internet and update the firmware. 2.1. Network Connection (1) System Requirements • A broadband internet connection • Modem • Router • Ethernet cable (CAT-5 or greater recommended) (2) Settings Internet Computer...

  • Page 27: Firmware Update Procedure

    All manuals and user guides at all-guides.com FIRMWARE UPDATE PROCEDURE 1. Updating by USB The latest firmware can be downloaded to a USB memory for updates. 1.1. Connecting to the USB Memory (1) Preparation • USB format: Prepare a USB memory formatted in FAT16 or FAT32. •...

  • Page 28: Trouble Shooting

    All manuals and user guides at all-guides.com TROUBLE SHOOTING 1. Power not turn on. Is the Fuse opened? • SMPS PCB Replace F951. • F951 Is the wire properly inserted ? Insert wire properly. • CN93 Is D960 Cathode around 6V? Check +3.3ST output voltage •...
  • Page 29 All manuals and user guides at all-guides.com Is the Fuse opened? • POWER PCB Replace any fuse. • F901, F902, F904, F905 Is all AC voltage normal? • POWER PCB ・CN96 pin1-2pin : around 7V (AC) Replace main transformer. ・CN96 pin3-4pin : around 18V (AC) ・CN95 pin1-2pin : around 7V (AC) ・CN95 pin4-5pin : around 5V (AC) Check control signal...

  • Page 30: Oled Doesn't Light

    All manuals and user guides at all-guides.com 2. OLED doesn't Light Check DC voltage Check DC voltage • FRONT PCB • POWER PCB • BN85 7pin : + 3.3V • CN85 7pin : +3.3V Check Wire BN85. Check device • POWER PCB •...
  • Page 31 All manuals and user guides at all-guides.com Check drive Signals from micro processor (IC11) Check Soldering or replace. • DIGITAL PCB • DIGITAL PCB • IC11 : 30-37pin (DA0-DA7), 25pin (EL RESET), 26pin(EL E RD) • IC11 27pin (EL DC#), 28pin (EL R/W#_WR#), 29pin (EL_CS) Check FFC cable Check Soldering •...

  • Page 32: No Sound, Noise Generated

    All manuals and user guides at all-guides.com 3. No Sound, Noise generated 3.1. COMMON Is the Fuse opened? • AUDIO PCB • F601 Replace each Fuse. • F602 • F603 Is the wire properly inserted ? • AUDIO PCB Insert the wire properly. •...
  • Page 33 All manuals and user guides at all-guides.com 3.2. COAXAL,OPTICAL Check DC voltage Check Soldering. • DIGITAL PCB • DIGITAL PCB • L402 : +3.3V • CN14 5pin (+3.3DD) Is SPDIF signal normal? Check Soldering or replace. • DIGITAL PCB • DIGITAL PCB •...
  • Page 34 All manuals and user guides at all-guides.com Are each clock normal in playback mode? • DIGITAL PCB • WF12 5pin (512Fs) Check Soldering or replace. • WF12 7pin (SDA_DSDL) • DIGITAL PCB • WF12 9pin (BCK_DSDCLK) • WF12, R181, R182, R183 •...
  • Page 35 All manuals and user guides at all-guides.com 3.3. DAC Check DC voltage Check Soldering or replace. • AUDIO PCB • AUDIO PCB • IC61 17pin, 22pin : +5V • IC71, IC72 • IC61 7pin, 14pin, 27pin : +5V Is DAC input signal normal in playback mode? •...
  • Page 36 All manuals and user guides at all-guides.com 3.4. USB A/ETHERNET Check DC voltage • DIGITAL PCB Go to 1.power not turn on. • CN14 3pin (NET3.3V) : +3.3V • CN15 2pin (NET1.2V) : +1.2V Check DC voltage • DIGITAL PCB Go to 1.power not turn on.
  • Page 37 All manuals and user guides at all-guides.com 3.5. USB B Check DC voltage • DIGITAL PCB • WF13 15pin (USBB3.3V) : +3.3V • WF13 17pin (USBB1.8V) : +1.8V Go to 1.Power not turn on. • WF13 17pin (USBB1.2V) : +1.2V *When check the DC voltage, Use USBGND on the DIGITAL PCB.
  • Page 38 All manuals and user guides at all-guides.com Personal notes:...

  • Page 39: Measuring Method And Waveforms

    All manuals and user guides at all-guides.com MEASURING METHOD AND WAVEFORMS (It is better to use wires for extending between the probe and test points.) CUP12586Z AUDIO PCB: TEST POINT CUP12585Z DIGITAL PCB: TEST POINT Q0 o MCLK R694 SCLK R692 LRCK R693...
  • Page 40 All manuals and user guides at all-guides.com WAVEFORMS 1. MASTER CLOCK (ex. PCM Playback from COAX IN, FS=48K) 2. MASTER CLOCK (ex. DSD64 Playback from USBB) ①IC61 ①IC61 CS4398 CS4398 (pin6,MCLK, (pin6,MCLK, 3. II2 Input to DAC, CS4398 (ex. PCM Playback from COAX IN, FS=48K) 4.

  • Page 41: Block Diagram

    All manuals and user guides at all-guides.com BLOCK DIAGRAM 2014/4/26 A D O Ethernet ANALOG RJ-45 COAX COAX R232C Flasher RC-5 RC-5 Type B Type B IN/OUT INT/EXT Ethernet iPod Certificate System uCOM Muting Muting (RS232C) System Front IR uCOM USB DAC sensor (RS232...

  • Page 42: Power Diagram

    All manuals and user guides at all-guides.com POWER DIAGRAM D901-D908 OLED +18V OLED +3.3DD CS2000 D930 IC907 IC912 3.3V FET SW +3.3DSP IC908 1.8V TypeB +1.8DSP IC909 1.2V +1.2DSP D929 RY91 IC902 RELAY +5USBA D-Bus ANALOG TRANS D920, D922 D924, D926 D932 IC904 DigOut...

  • Page 43: Wiring Diagram

    All manuals and user guides at all-guides.com WIRING DIAGRAM...

  • Page 44: Audio

    All manuals and user guides at all-guides.com PRINTED CIRCUIT BOARDS Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). AUDIO AUDIO (B SIDE) (A SIDE)
  • Page 45 All manuals and user guides at all-guides.com POWER POWER (B SIDE) (A SIDE) SMPS SMPS (B SIDE) (A SIDE)

  • Page 46: Digital

    All manuals and user guides at all-guides.com DIGITAL DIGITAL (B SIDE) (A SIDE) STANDBY STANDBY FRONT (B SIDE) (A SIDE) (A SIDE) PHONE PHONE FRONT (B SIDE) (B SIDE) (A SIDE)

  • Page 47: Schematic Diagrams (1/8 )

    All manuals and user guides at all-guides.com V 14A1 Q611 2SC4116 Q609 2SA1586 GND1 V 3 3D1 DATA1 EART R621 R603 Q603 Q605 Q607 2SA1586 2SA1586 180(AX) V 3 3D1 18K(AX) 2SA1586 Q601 C616 0 01u R601 R605 4 7K(AX) 1K(AX) R609 18K(AX)

  • Page 48: 02-Mcu

    All manuals and user guides at all-guides.com TO 3A TO 5C TO 4A CN14 CJP11GI237ZW GND D1 TO 9A GND D1 OPEN R184 +VUSB FB +5USBA TO 6A +5DIG0 CLZBLM21PG221SN1 L107 +5DIG0 +5DIGO CLZBLM21PG221SN1 L108 +3 3DD +3 3DIGO CLZBLM21PG221SN1 L109 +3 3DD +3 3DD...

  • Page 49: 03-Network

    All manuals and user guides at all-guides.com IC22 TP21 IC23 CJP04GA19ZY CVIA3V56S30FTP G6 CVIA3V56S30FTP G6 TDO1 TDI1 DM D0 DM D7 DM D8 DM D15 CN17 TCK1 CJP07GA193ZY VDDQ VSSQ VDDQ VSSQ TMS1 DM D1 DM D6 DM D9 DM D14 OPEN RN24 VSSQ...
  • Page 50 All manuals and user guides at all-guides.com +3 3V USBB1 +1 2V OUT +1 8V USBB1 +1 2V PLL0 +1 2V PLL1 COX24576I120ST X401 +3 3DD TO A3 DIR RST DIR RST DIR CL GND D1 GND D1 DIR CL R479 DIR CE OPEN...

  • Page 51: 05-Jack

    All manuals and user guides at all-guides.com +3 3DD +3 3EVER JK54 RX (25MHz) CJSJSR2124 00 BBBN R505 OPTICAL IN C506 GND D1 R513 OPT SPDIF 100/16V IC51 ILX3232D Q501 C501 C507 TO B7 OPEN JK55 0 1uF OPEN CJJ4M056W C502 C508 C509...

  • Page 52: 06-Power

    All manuals and user guides at all-guides.com R929 NET_1.2_STB R928 P_DWN R930 SMPS_CONT_ R931 STB_CNT_ SHORT R932 D938 STB_CNT_ +6SMPS_ R933 NET_3.3_STB 1N4003 Q903 R934 SMPS_CONT_ CTL_+5USBA D931 R913 R935 CTL_+1 2NET_ +6ST_ 4.7K R936 CTL_+3 3NET_ KRC102S +3 3NET_ CTL_+3.3DSP.

  • Page 53: 07-Smps

    All manuals and user guides at all-guides.com CN92 CJP02GA89ZY CX93 470P/AC250V CX90 F951 470P/AC250V Z1:T 2AH/250V C952 4700P FH91 FH91 CRVSVC431D14A RY91 R914 G5PA 1(6V) CX91 0 1/250V CHGND9 J902 BK91 OPEN BK19 CJT1A026 Q952 KTC3198YT HVD1SS355T D964 GND S GND S +3 3NET LF91...

  • Page 54: 08-Front

    All manuals and user guides at all-guides.com NA8005 FRONT BN85 WF81 WF81 BN19 TO WF11 CJP27GB286ZN TO CN85 TO CN19 to MAIN (DIGITAL) to POWER BN86 CWB03 BN83 BN19 BN85 CWB07 GNDF2 C812 0 1uF GNDF2 C810 0 1uF NJM2387DL2...

  • Page 55: Exploded View

    All manuals and user guides at all-guides.com EXPLODED VIEW Please see the last chapter for the part list. S3 x1 S3 x2 S6 x3 S8 x1 S8 x2 S1 x1 S8 x4 S7 x2 S5 x2 S6 x3 S3 x5 S3 x2 S3 x1 S3 x4...
  • Page 56 All manuals and user guides at all-guides.com Personal notes: Personal notes:...

  • Page 57: Packing View

    All manuals and user guides at all-guides.com PACKING VIEW Please see the last chapter for the part list. UK plug (UK Only)

  • Page 58: Semiconductors

    All manuals and user guides at all-guides.com SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's R5F56108VNFP (MAIN : IC 11)
  • Page 59 All manuals and user guides at all-guides.com R5F56108VNFP Terminal Functions STBY Network Network Port Name Function PD/PU STBY MODE STBY 1 TDI CONNECTION for EMULATOR 2 TMS CONNECTION for EMULATOR Port for Setting up "PWB CHECK 3 TEST1 MODE" 4 232C POWER POWER Control for 232C 5 AVSS 6 TRST#...
  • Page 60 All manuals and user guides at all-guides.com STBY Network Network Port Name Function PD/PU STBY MODE STBY R e s e t t o D M 8 7 0 / 8 6 0 ( P. U P a t 55 E_RESET PU(CX870) DM870/860 side) 56 OPEN...
  • Page 61 All manuals and user guides at all-guides.com STBY Network Network Port Name Function PD/PU STBY MODE STBY 112 OPEN OPEN 113 OPEN OPEN 114 GD25Q32 CLK GD25Q32-6P, CLK 115 GD25Q32_HOLD I/O GD25Q32-7P,HOLD# ( IO3 ) 116 GD25Q32_WP GD25Q32-3P,WP# ( IO2 ) 117 GD25Q32_SO GD25Q32-2P,SO ( IO1 ) 118 GD25Q32_SI...
  • Page 62 All manuals and user guides at all-guides.com PCM9211 (DIGITAL : IC42) PCM9211 Block Diagram...
  • Page 63 All manuals and user guides at all-guides.com PCM9211 Pin Discriptions...
  • Page 64 All manuals and user guides at all-guides.com EPM240T100C5N (DIGITAL : IC41) EPM240T100C5N Terminal Function Pin/Pad Name Connect Device Direction Detail 1 IO 2 IO 3 IO PLD_RST(MODE3.) 4 IO .MODE3. CD MECHA SRDATA BE→PLD Control 5 IO .SRDATAO CD MECHA SRCLK BE→PLD Control 6 IO .SRCLK...
  • Page 65 All manuals and user guides at all-guides.com Pin/Pad Name Connect Device Direction Detail .DAC_RST_OUT 47 IO DSD1792A DAC RST .CS2000MCK_OUT CS2000MCK_OUT 48 IO CS2000 .CS2000MCK_IN CS2000MCK_IN 49 IO CS2000 .PLD_RSV3 PLD_RSV3 50 IO M3062LFGPGP .PLD_DAC_SEL PLD_DAC_SEL 51 IO AUDIO UNIT SELECTOR .DAC CK IN DAC CK IN : for L/Rch DAC :to DSD1792A MC 52 IO...
  • Page 66 All manuals and user guides at all-guides.com CS2000-CP (DIGITAL : IC43)                                  ...
  • Page 67 All manuals and user guides at all-guides.com CS4398 (AUDIO : IC61) DSD_B DSD_A DSD_SCLK SDIN SCLK AMUTEC LRCK AOUTA- MCLK AOUTA+ DGND AGND M3 (AD1/CDIN) AOUTB+ M2 (SCL/CCLK) AOUTB- M1 (SDA/CDOUT) BMUTEC M0 (AD0/CS) VREF REF_GND FILT+ CS4398 Terminal Functions Pin Name Pin # Pin Description...
  • Page 68 All manuals and user guides at all-guides.com ADuM1286(AUDIO : IC65) t B. ADuM1281/ ADuM1286 DECODE ENCODE ENCODE DECODE gic u ADuM1281/ ADuM1286 TOP VIEW (Not to Scale) Figure 5. ADuM1281/ADuM1286 Pin Configuration Table 21. ADuM1281/ADuM1286 Pin Function Descriptions Pin No. Mnemonic Description 2.7 V to 5.5 V Supply Voltage for Isolator Side 1.
  • Page 69 All manuals and user guides at all-guides.com MFI337S3959 (DIGITAL : IC25)

  • Page 70: Display

    All manuals and user guides at all-guides.com 2. DISPLAY S020-MXS4035A-3...
  • Page 71 All manuals and user guides at all-guides.com POWER POWER PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. U : North America model N : Europe model K : China model F : Japan model B : Black model SG : Silver gold model REF No.
  • Page 72 All manuals and user guides at all-guides.com POWER REF No. Part No. Part Name Remarks Q'ty New Ver R980 RES CHIP(1608/1%/4.3Kohm) CRJ10DF4301T R982 RES, CHIP(2012/5%/220ohm) CRJ18AJ221T R983,984 RES, CHIP(2012/5%/33ohm) CRJ18AJ330T R985 RES, CHIP(1608/1%/30Kohm) CRJ10DF3002T R986 RES, CHIP(1608/1%/7.5Kohm) CRJ10DF7501T R990-993 RES CHIP(3216/5%/1.2Mohm) 3216 SIZE CRJ14CJ125T R994 00MN 05154110...
  • Page 73 All manuals and user guides at all-guides.com POWER REF No. Part No. Part Name Remarks Q'ty New Ver ★ HEAT SINK CMY4A222-V2 ★ SCREW CTB3+8JR ★ HEAT SINK CMY4A222-V2 ★ SCREW CTB3+8JR...
  • Page 74 All manuals and user guides at all-guides.com FRONT FRONT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. U : North America model N : Europe model K : China model F : Japan model B : Black model SG : Silver gold model REF No.
  • Page 75 All manuals and user guides at all-guides.com FRONT REF No. Part No. Part Name Remarks Q'ty New Ver JW82 W RE ASS'Y CWE8102100RV L801-807 FERRITE CH P BEAD(2012/220R) BLM21PG221SN1/MURATAMURATA CLZBLM21PG221SN1 L809 FERRITE CH P BEAD(2012/220R) BLM21PG221SN1/MURATAMURATA CLZBLM21PG221SN1 L810,811 FERRITE CH P BEAD(2012/120R) BLM21AG121SN1/MURATAMURATA CLZBLM21AG121SN1 L812 FERRITE CH P BEAD(2012/220R) BLM21PG221SN1/MURATAMURATA...
  • Page 76 All manuals and user guides at all-guides.com AUDIO AUDIO PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. U : North America model N : Europe model K : China model F : Japan model B : Black model SG : Silver gold model REF No.
  • Page 77 All manuals and user guides at all-guides.com AUDIO REF No. Part No. Part Name Remarks Q'ty New Ver R663 RES CH P(1608/5%/220ohm) CRJ10DJ221T R664-670 RES CH P(1608/5%/33ohm) CRJ10DJ330T R671 672 RES CH P(1608/5%/10Kohm) CRJ10DJ103T R673-676 RES CH P(1608/5%/100ohm) CRJ10DJ101T R677 RES CH P(1608/5%/220ohm) CRJ10DJ221T R678...
  • Page 78 All manuals and user guides at all-guides.com AUDIO REF No. Part No. Part Name Remarks Q'ty New Ver C714 715 00MOA227025R0 CAP ELECT(220UF/25V 10X20 ELNA/ROA) CCEA1EROA221T C721 722 943134502670M CAP ELECT(47UF/25V ROS ELNA ) ROS-25V470MG3#PE-T2 CCEA1EROS470T C723 CAP CH P(1608 50V/470pF C0G) SAMSUNG CL10C471JB8NNNC CCUS1H471JAS C751 752 13405026100AS...
  • Page 79 All manuals and user guides at all-guides.com DIGITAL DIGITAL PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. U : North America model N : Europe model K : China model F : Japan model B : Black model SG : Silver gold model REF No.
  • Page 80 All manuals and user guides at all-guides.com DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver R245 RES CHIP(1005/5%/27Kohm) CRJ06IJ272T R246 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R248 RES, CHIP(1005/5%/100ohm) CRJ06IJ101T R249,250 RES, CHIP(1005/5%/10ohm) CRJ06IJ100T R251,252 RES, CHIP(1005/5%/100ohm) CRJ06IJ101T R253 RES CHIP(1005/5%/15Kohm) CRJ06IJ152T R254 RES CHIP(1005/5%/10Kohm)
  • Page 81 All manuals and user guides at all-guides.com DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C106 CAP ELEC SMD 47UF/16V LELON CCEC1CRV2470T C107,108 CAP, CHIP(1608, 50V/15pF, C0G)_SAMSUNG CL10C150JB8NNNC CCUS1H150JAS C109 CAP, CHIP(1608, 10V/1uF, X7R, X7S)_SAMSUNG CL10B105KP8NNNC CCUS1A105KCS C110-112 CAP, CHIP(1608, 50V/01uF, X7R)_SAMSUNG CL10B104KB8NNNC CCUS1H104KCS...
  • Page 82 All manuals and user guides at all-guides.com DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C529 CAP CHIP(1608 50V/001uF X7R) SAMSUNG CL10B103KB8NNNC CCUS1H103KCS C530 CAP, CHIP(1608, 50V/47pF, C0G)_SAMSUNG CL10C470JB8NNNC CCUS1H470JAS C531,532 CAP, CHIP(1608, 50V/01uF, X7R)_SAMSUNG CL10B104KB8NNNC CCUS1H104KCS C533 CAP, CHIP(1608, 50V/1000pF, X7R)_SAMSUNG CL10B102KB8NNNC CCUS1H102KCS...
  • Page 83 CHS1A032 SCREW, COVER CGX1A439 CLAMPER, WIRE CHE36-3 943101102280M TRANS, POWER ( 230V/50Hz, NA8005/N1) CLT5P054ZE 943101102290M TRANS, POWER ( 120V/60Hz, NA8005/U1B ) CLT5P054ZU 943101102480M TRANS, POWER ( 220V/50Hz, NA8005/K1B ) CLT5P054ZH 943101102300M TRANS, POWER ( 100V/50-60Hz, NA8005/FN ) CLT5P054ZJ 00MYJ04002640 RECEPTACLE , AC...
  • Page 84 All manuals and user guides at all-guides.com PACKING PACKING ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. U : North America model N : Europe model K : China model F : Japan model B : Black model SG : Silver gold model REF No.
