5.2 Setting up the CPE with Teletronics 2Mbit Wireless NIC
• The following explanation and screen shots will demonstrate how to set the CPE with
the Teletronics 2Mbit Wireless Network Card. If your wireless card is not
manufactured by Teletronics, please move to the appropriate section for your card.

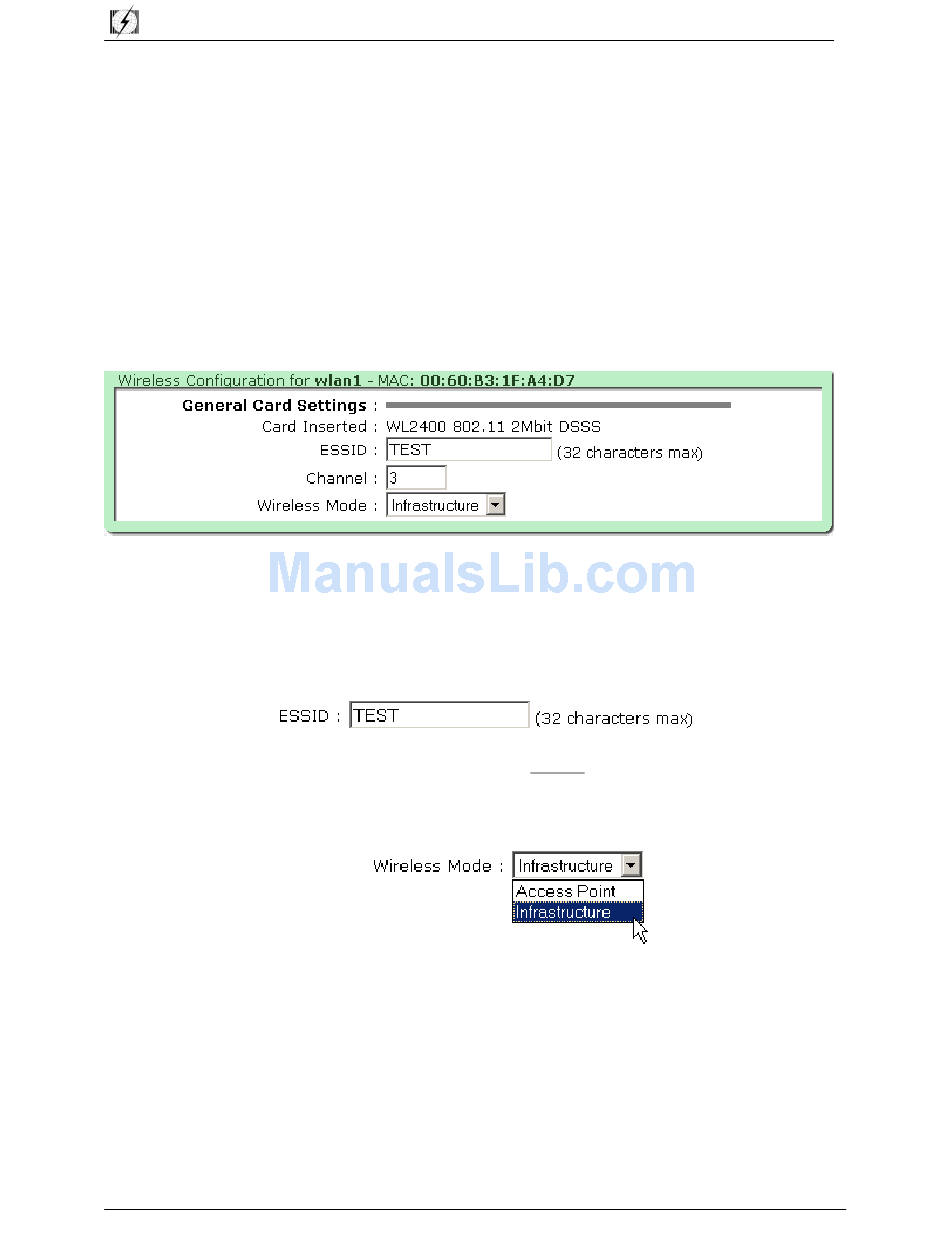

Step 9: You will see a screen like the one below. When setting up your CPE to act
as a CPE, the two areas of utmost importance are the ESSID and the
Wireless Mode fields.
The ESSID field must reflect the ESSID of your Access Point. If the
ESSID fields differ between your CPE and your AP, your network will not
function. In Diagram 3.0, the ESSID of both the CPE and the AP is set
to TEST.
The Wireless Mode field for a CPE is always set to Infrastructure. The
only time that this option changes is when you want your CPE to act as an
AP.
Step 10: Click on the Activate button at the top of the screen. This will save all of
your settings and activate any changes you have made to the default settings.
Clicking on Save and Reboot will have the same effect. You have
completed the setup of the CPE as a CPE.
