Vigor550 Wireless 11g USB Adapter

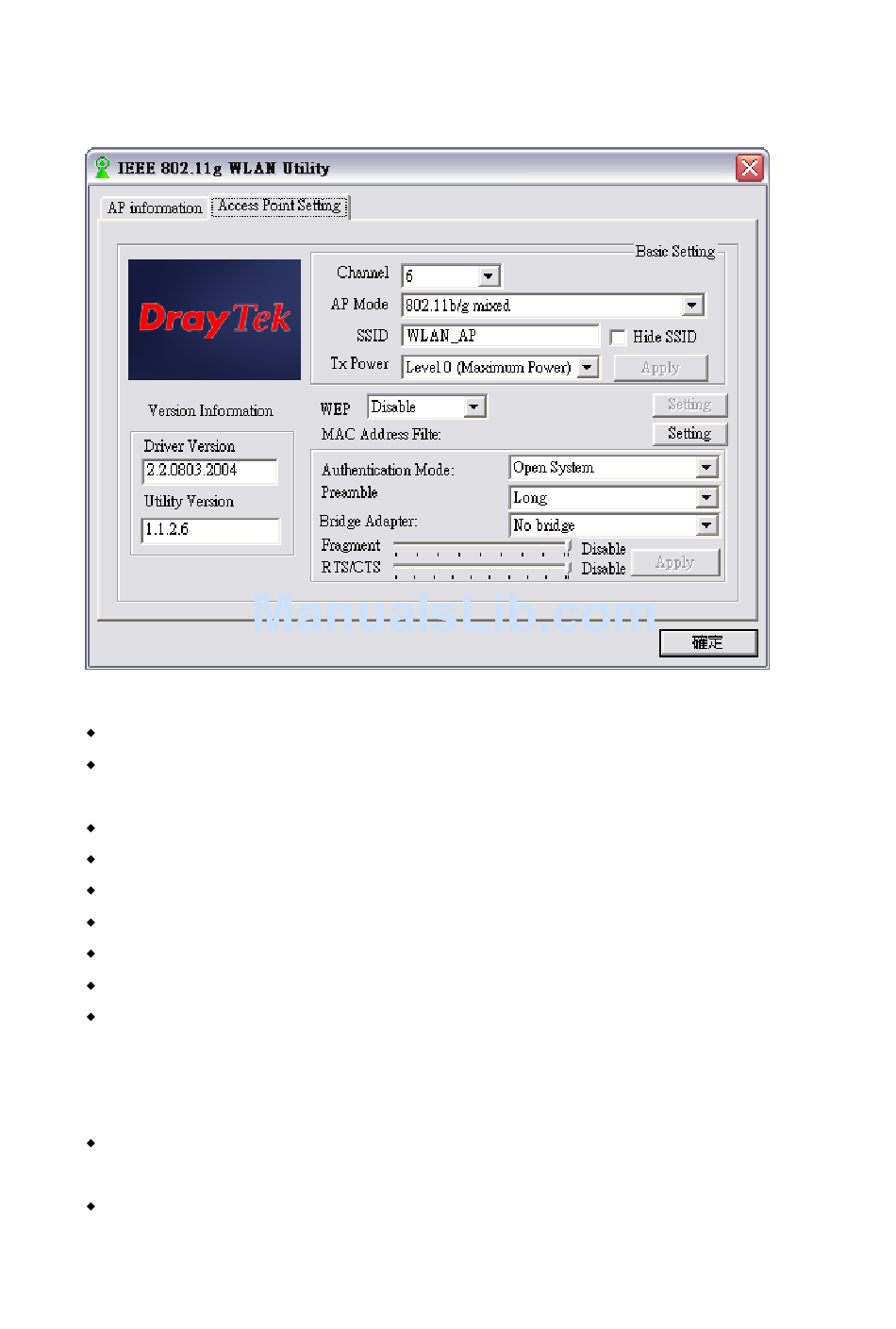

7.2 Access Point Setting

Channel: Eleven categories (1 to 11).
AP Mode: Select software AP as 802.11g only mode or 802.11b/g mixed
mode.
SSID: The name of the wireless network.
Hide SSID: Conceal the name of the wireless network while site surveying.
Tx Power: Different power transmission rate can save power cost.
WEP: Two options (Enable/Disable).
Authentication Mode: Two options (Open System/Shared Key).
Preamble: Two options offered (Long/Short).
Bridge Adapter: Activate or not activate bridge adapter.
This software bridge only supports two-port bridging. One of them must be
a WLAN wireless software AP network adapter, and the other one must be
an Ethernet type network adapter.
Fragment: The maximum frame transmission length before fragmentation
takes place.
RTS/CTS: Request To Send; Clear To Send.
28
