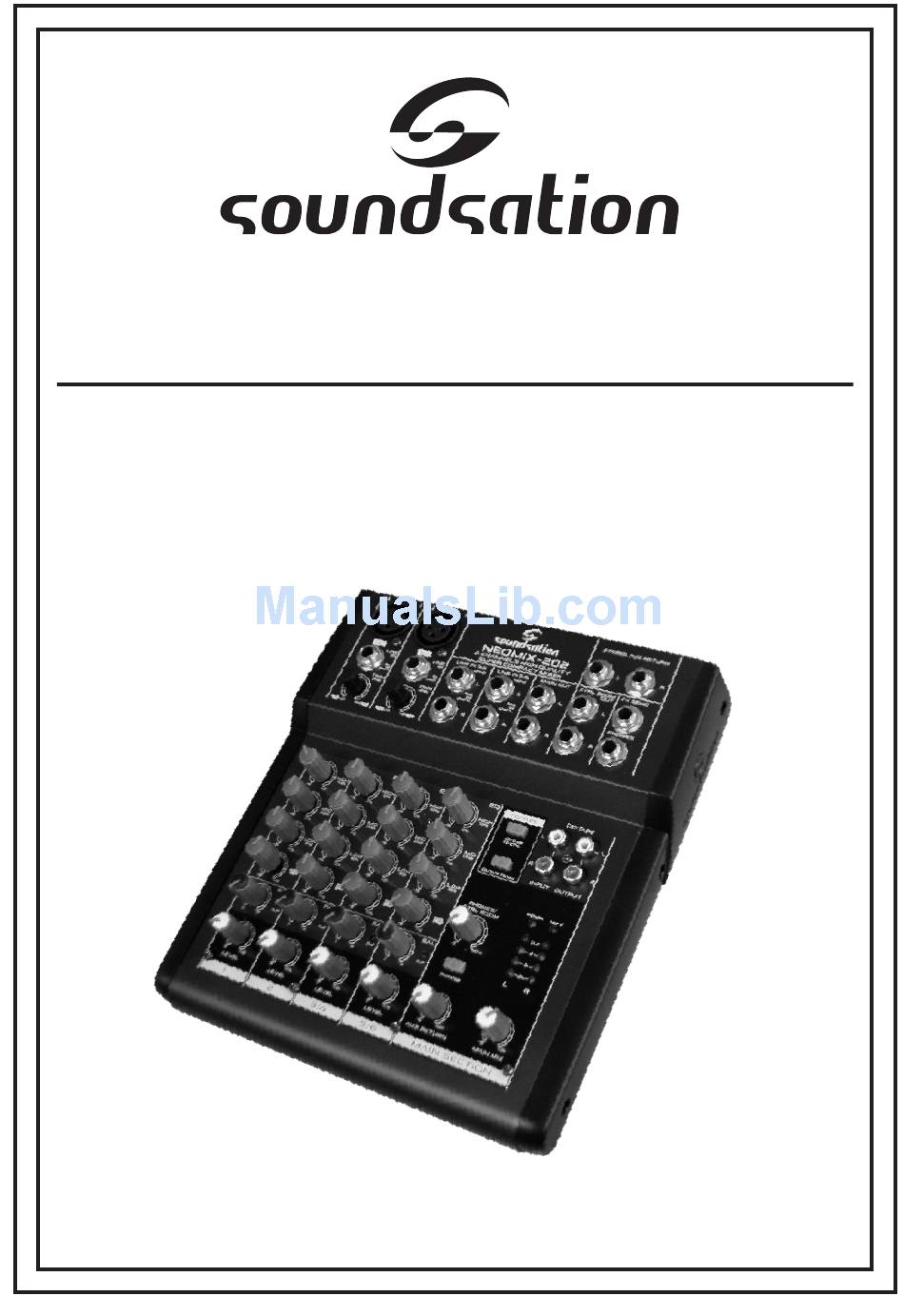

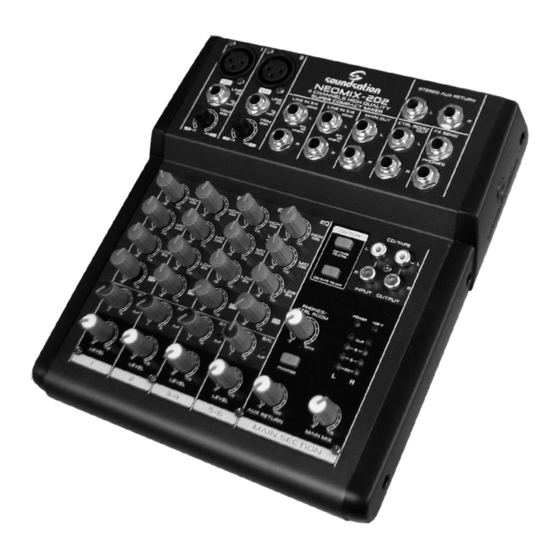

- Page 1 USER'S MANUAL High quality super compact mixing console NEOMIX-102 NEOMIX-202 NEOMIX-202FX...
- Page 2 IMPORTANT SAFETY SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. The symbol is used in the service documentation to indicate that specific component shall be replaced only by the component specified in that documentation for safety reasons.
- Page 3 · Ventilation Do not block areas of ventilation opening. Failure to do could result in fire. Always install accordance with the manufacturer's instructions. · Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety.
-
Page 4: Table Of Contents
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX TABLE OF CONTENTS 1.INTRODUCTION...............2 1.1 General mixing console functions................2 1.2 The user’ s manual....................3 1.3 Before you get started..................... 3 2.CONTROL ELEMENTS AND CONNECTORS .....4 2.1 Mono channels.......................4 2.2 Stereo channels..................... 6 2.3 Connector carry of the main section................7 Main section ......................9... -
Page 5: Introduction
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 1.INTRODUCTION Congratulations! In purchasing the NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX you have acquired a mixing console whose small size belies its versatility and audio performance. The NEOMIX Series represents a milestone in the development of mixing console technology . With the NEOMIX microphone preamps including phantom power as an option. -
Page 6: The User' S Manual
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX ▲ Signal distribution: Summing of signals to the aux sends for effects processing and monitor mix, distribution to one or several recording tracks, power amp(s), control room and 2-track outputs. ▲ Mix: Setting the volume level, frequency distribution and positioning of the individual signals in the stereo field, level control of the total mix to match the recording devices/crossover/power amplifier(s). -
Page 7: Control Elements And Connectors
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX Please note that all unit must be properly grounded. For your own safety, you should never remove any ground connectors from electrical devices or power cables, or render them inoperative. Please sure that only qualified people install and operate the mixing console. During installation and operation, the user must have sufficient electrical contact to earth, otherwise electrostatic discharges might affect the operation of the unit. - Page 8 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX Each mono input channel offers a balanced microphone input via the XLR connector and also features switchable +48V phantom power supply for condenser microphones. The NEOMIX preamps provide undistorted and noised-free gain as is typically known only from costly outboard preamps.
-
Page 9: Stereo Channels
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX As the name suggests, the FX sends of the NEOMIX mixing consoles are intended to drive effects devices (reverb, delay, etc.) and are therefore configured post-fader. This means that the mix between dry signal and effect remains at the level determined by the channel’s aux send, irrespective of the level fader setting. -
Page 10: Connector Carry Of The Main Section
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX LINE IN Each stereo channel has two balanced line level input on 1/4” connectors for left and right channels. If only the connector marked “L”(left) is used, the channel operates in mono. Stereo channels are designed to handle typical line level signals. - Page 11 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX If the connected effects processor receives no input signal. the FX SEND control is probably too low. This also goes for the built-in effects processor.(202FX) Adjust your external effects processor to 100% wet (effects signal only), before the effects signal is added to the main mix along with “dry”...
-
Page 12: Main Section
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 2.4 Main section CD/TAPE CD/TAPE TO MIX TO CTRL CD/TAPE POWER 48 V CLIP AUX RETURN PHANTOM M A X PHONES/ MAIN MIX CTRL ROOM M AI N S E CTION Fig. 2.4: Control elements of the main section +48 V The red +48V LED lights up when phantom power is turned on. - Page 13 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX LEVEL SETTING To correctly set the gains of the channels, first set the LEVEL controls of the input channels to their center positions (0 dB) Then use the TRIM controls to increase the input amplification until signal peaks show 0 dB on the level meter.
-
Page 14: Digital Effects Processor
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 2.5 Digital effects processor 24-BIT DUAL ENGINE DSP 24-BIT A/D & D/A CONVERTER 24-BIT A/D & D/A CONVERTER REVERB 00-39 PITCH 74-79 ER/DLY 40-59 MULTI 80-99 60-73 P RO G R AM (P US H ) Fig. -
Page 15: Application
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 3. APPLICATION CD player keyboard TAPE Active monitor microphone MD recorder STEREO AUX RETURN (Alternative) NEOMI X-202F X 4 channels high quality super compact mixer with FX Headphone LINE IN 3/4 LINE IN 5/6 MAIN OUT... -
Page 16: Installation
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 4.INSTALLATION 4.1 Mains connection AC POWER IN Connect the power supply to the 3-pin mains connector on the rear of the console. Use the AC adapter supplied to connect the console to the mains. The adapter complies with all applicable safety standards. - Page 17 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX Unbalanced use of 1/4＂T RS connector strain relief clamp sleeve ground shield signal sleeve The foot switch connects the two poles momentarily Fig. 4.2: 1/4＂mono plug Balanced use of 1/4＂T RS connector strain relief clamp...
-
Page 18: Specifications
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX 5.SPECIFICATIONS Mono inputs Microphone inputs Type XLR, electronically balanced, discrete input circuit Mic E.I.N. (20 Hz - 20 kHz) @ 0 Ω source resistance -134 dB / 135.7 dB A-weighted @ 50 Ω source resistance -131 dB / 133.3 dB A-weighted... - Page 19 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX EQ mono channels 80 Hz / 15 dB 2.5 kHz / 15 dB High 12 kHz / 15 dB EQ stereo channels 80 Hz / 15 dB 2.5 kHz / 15 dB High 12 kHz / 15 dB...
- Page 20 NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX Power supply Power consumption NEOMIX-102: 13 W NEOMIX-202: 15 W NEOMIX-202FX: 15 W Mains voltage 120 V~, 60 Hz, USA/Canada 240 V~, 50 Hz, U.K./Australia 230 V~, 50 Hz, Europe 240 V~, 60 Hz, Japan...
-
Page 21: Warranty And Service
NEOMIX-102 / NEOMIX-202 / NEOMIX-202FX WARRANTY AND SERVICE All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt. The following cases/components are not covered from the above warranty :... - Page 22 WARNING PLEASE READ CAREFULLY-EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive ( 2202/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE) .
