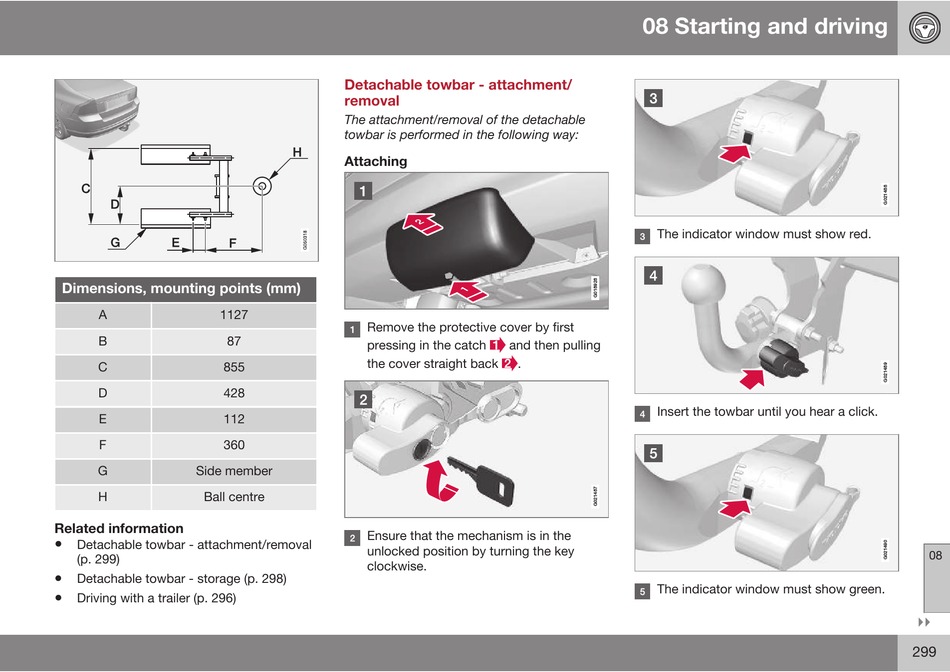

Dimensions, mounting points (mm)
A 1127
B 87
C 855
D 428
E 112
F 360
G Side member
H Ball centre
Related information
•
Detachable towbar - attachment/removal
(p. 299)
•
Detachable towbar - storage (p. 298)
•
Driving with a trailer (p. 296)

Detachable towbar - attachment/

removal

The attachment/removal of the detachable
towbar is performed in the following way:
Attaching
Remove the protective cover by first
pressing in the catch and then pulling
the cover straight back .
Ensure that the mechanism is in the
unlocked position by turning the key
clockwise.
08 Starting and driving
The indicator window must show red.
Insert the towbar until you hear a click.
The indicator window must show green.
