TWO LINE CALLER ID SPEAKERPHONE
•
Two phone lines can be conferenced for 3 Way conversations
•
Caller ID shows you caller's name and number on line 1 or line 2
•
Hands-free speakerphone with LED indicator and volume control
•
80 name and number caller ID memory
•
Tone / pulse switchable dialing
•
Automatic time and date display
•
One-touch caller ID call back of received numbers
•
13 memory telephone (3 one-touch & 10 two-touch)
•
Wall / desk usable
•
Requires 4 size "AA" batteries (not included) or the supplied AC adaptor
Remember to connect the supplied AC adaptor before use.
To use the caller ID feature of this phone, you must subscribe to caller ID service
from your phone company.
To use the two line and conference functions, you need to have 2 incoming phone
lines from your phone company and use the supplied AC adaptor.
NOTE: READ AND FOLLOW THESE INSTRUCTIONS BEFORE USING YOUR TELEPHONE
IB-PH568-WM-E-040506(RTT).pmd
MODEL PH-568
OPERATING INSTRUCTIONS
1
IB-PH568-WM-E-040506
7/4/2006, 4:28 PM
Advertisement
Table of Contents
Related Manuals for Durabrand PH-568
Summary of Contents for Durabrand PH-568
-
Page 1: Operating Instructions

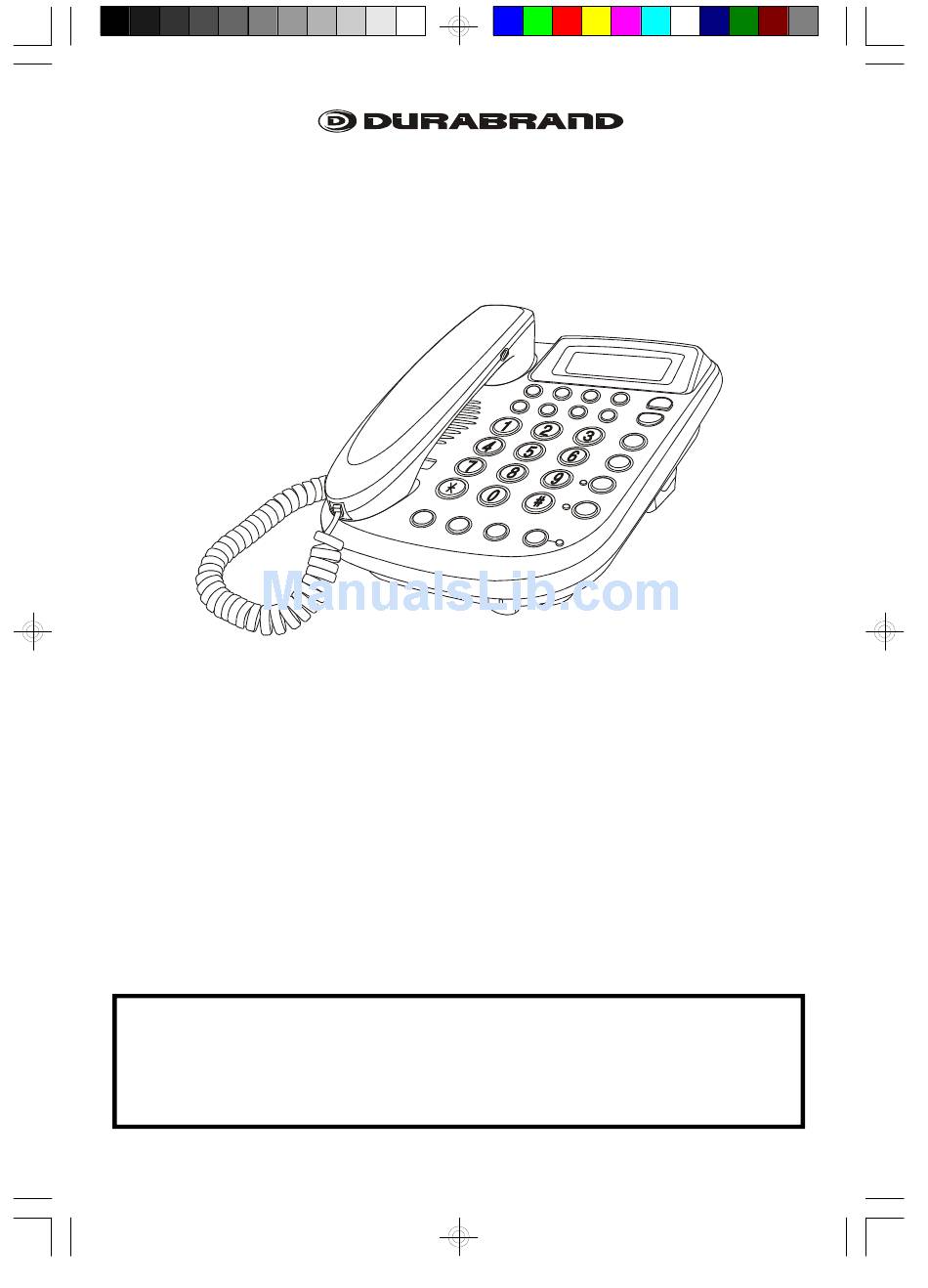

TWO LINE CALLER ID SPEAKERPHONE MODEL PH-568 OPERATING INSTRUCTIONS • Two phone lines can be conferenced for 3 Way conversations • Caller ID shows you caller’s name and number on line 1 or line 2 • Hands-free speakerphone with LED indicator and volume control •... -
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ................1 Battery Safety Instructions ................... 2 Important Telephone Company & FCC Information .......... 3,4 Checking the Package Contents ................5 Location of Controls ....................6 Settings Installing the Batteries ................... 7 Connecting the Handset and the AC Adaptor ............7 Connecting the Telephone Line Cord .............. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following: 1. Read and follow all instructions and warnings. 2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. -
Page 4: Battery Safety Instructions
BATTERY SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY, READ AND FOLLOW THESE INSTRUCTIONS. 1. Use only the following type and size of batteries: 4 size “AA” alkaline batteries (not included). 2. Do not dispose of the batteries into a fire. The cells may explode. Check with local codes for possible special disposal instructions. -
Page 5: Important Telephone Company & Fcc Information
IMPORTANT TELEPHONE COMPANY & FCC INFORMATION Consumer Information: a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA (Administrative Council for Terminal Attachment). On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:TEDTE11B2568A. -
Page 6: Important Telephone Company & Fcc Information
IMPORTANT TELEPHONE COMPANY & FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Checking The Package Contents
CHECKING THE PACKAGE CONTENTS As you unpack this set, make sure you have the following items in the package. HANDSET TELEPHONE BASE 4-WIRE SHORT STRAIGHT COILED HANDSET CORD WALL CORD (for wall mounting use) 2-WIRE STRAIGHT TELEPHONE 4-WIRE STRAIGHT TELEPHONE LINE CORD (grey) LINE CORD (black) WALL MOUNT ADAPTOR... -
Page 8: Location Of Controls
LOCATION OF CONTROLS Delete button Menu button Dial/Adjust button Auto button Store button LCD display Handset Handset volume control UP button One-touch speed dial buttons Numeric buttons DOWN button Conference button Hold button Mute button Flash button Line 1 button & Line 1 indicator Redial/Pause button Line 2 button &... -
Page 9: Settings
SETTINGS INSTALLING THE BATTERIES (If no AC adaptor is used) Before you connect the phone cords, you must install the batteries by following the steps below: 1. Insert a flat blade screwdriver or coin like a quarter into the slot and pry out (lift) the battery door (FIG. -
Page 10: Connecting The Telephone Line Cord
SETTINGS CONNECTING THE TELEPHONE LINE CORD To connect a two-line telephone jack Two-line telephone jack (RJ14C) Supplied black 4-wire telephone line cord Insert into LINE 1 (L1 or L1/L2) jack only. To connect two single-line telephone jacks Single-line telephone jack (RJ11C) Single-line telephone jack... -
Page 11: Customizing Your Phone
SETTINGS CUSTOMIZING YOUR PHONE (Setting up LCD contrast, language, area code, time and date, dialing mode, turning off the message waiting). You may need to set up the LCD contrast level, language, area code, time and date, and dialing mode for your telephone when you power your phone for the first time or when you move to an area that has a different area code. -
Page 12: Customizing Your Phone
SETTINGS CUSTOMIZING YOUR PHONE (Setting up LCD contrast, language, area code, time and date, dialing mode, turning off the message waiting). The setting includes following options: 6:10 3/22 1 2 3 4 5 LCD contrast level LCD CONTRAST TOTAL Language setting E=English E S F S= Spanish... -
Page 13: Telephone Basics Making Calls
TELEPHONE BASICS MAKING CALLS 1. Pick up the handset or press the SPEAKERPHONE button to get a dial tone, the line 1 indicator lights up, this indicates that you will make a call by line 1, you can also select to make a call by using line 2 by pressing the LINE 2 button, the LINE 2 indicator lights up (if you connected two lines). -
Page 14: Telephone Features Last Number Redialing
TELEPHONE FEATURES LAST NUMBER REDIALING 1. Pick up the HANDSET or press the SPEAKERPHONE button (you also need to press the LINE 2 button if you want to make call using line 2). 2. Press the REDIAL/PAUSE button. The last dialed number appears in the display and is automatically dialed. -
Page 15: Caller Id Operation
CALLER ID OPERATION This telephone has a Caller ID feature and if you subscribe to Caller ID service, the Caller’s telephone number (if available), Name (if your caller ID service includes), Time, Date, and called line will be displayed between the first and second ring of the phone. The phone stores the data of the last 80 calls received including “UNAVAILABLE CALL”... -
Page 16: Desk Use / Wall Mounting
DESK USE / WALL MOUNTING NOTE: For either desk use or wall mounting, you need to install the included adaptor. If you do not have a modular wall phone plate installed, please consult with your phone company or installer to get one. 1. -
Page 17: Trouble Shooting
TROUBLE SHOOTING PROBLEMS CHECK • The Caller ID unit will not function until you have subscribed to the Caller ID service from your local telephone company. Call your local telephone company to have Caller ID service installed on your phone line. •... - Page 18 TROUBLE SHOOTING (continued) PROBLEMS CHECK • Ma ke su r e the ha nds et co rds co nn ect ed Static noise on line or cannot hear properly. Or, replace the COILED HANDSET calling party or calling party cannot CORD.
-
Page 19: Limited Warranty
We reserve the right to make design and specification changes for product improvement. The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice.
