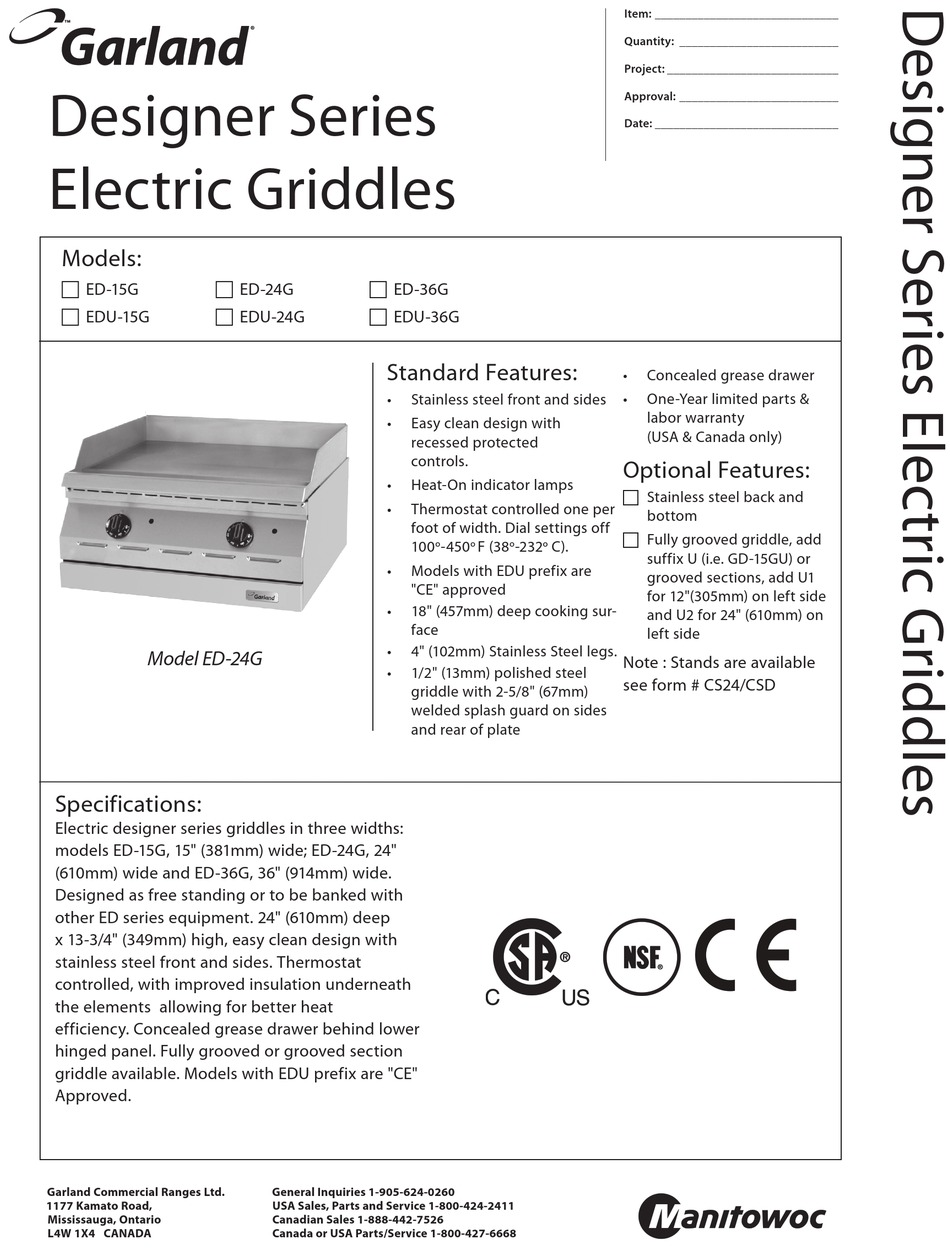

Garland ED-15G Specifications

Designer Series
Electric Griddles
Models:
 ED-15G  ED-24G
 EDU-15G  EDU-24G
Model ED-24G

Specifications:

Electric designer series griddles in three widths:
models ED-15G, 15" (381mm) wide; ED-24G, 24"
(610mm) wide and ED-36G, 36" (914mm) wide.
Designed as free standing or to be banked with
other ED series equipment. 24" (610mm) deep
x 13-3/4" (349mm) high, easy clean design with
stainless steel front and sides. Thermostat
controlled, with improved insulation underneath
the elements allowing for better heat
efficiency. Concealed grease drawer behind lower
hinged panel. Fully grooved or grooved section
griddle available. Models with EDU prefix are "CE"
Approved.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 ED-36G
 EDU-36G
Standard Features:
• Stainless steel front and sides
• Easy clean design with
recessed protected
controls.
• Heat-On indicator lamps
• Thermostat controlled one per
foot of width. Dial settings off
100 -450
o
• Models with EDU prefix are
"CE" approved
• 18" (457mm) deep cooking sur-
face
• 4" (102mm) Stainless Steel legs.
• 1/2" (13mm) polished steel
griddle with 2-5/8" (67mm)
welded splash guard on sides
and rear of plate
General Inquiries 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
• Concealed grease drawer
• One-Year limited parts &
labor warranty
(USA & Canada only)
Optional Features:
 Stainless steel back and
bottom
 Fully grooved griddle, add
F (38 -232 C).
o o o
suffix U (i.e. GD-15GU) or
grooved sections, add U1
for 12"(305mm) on left side
and U2 for 24" (610mm) on
left side
Note : Stands are available
see form # CS24/CSD
