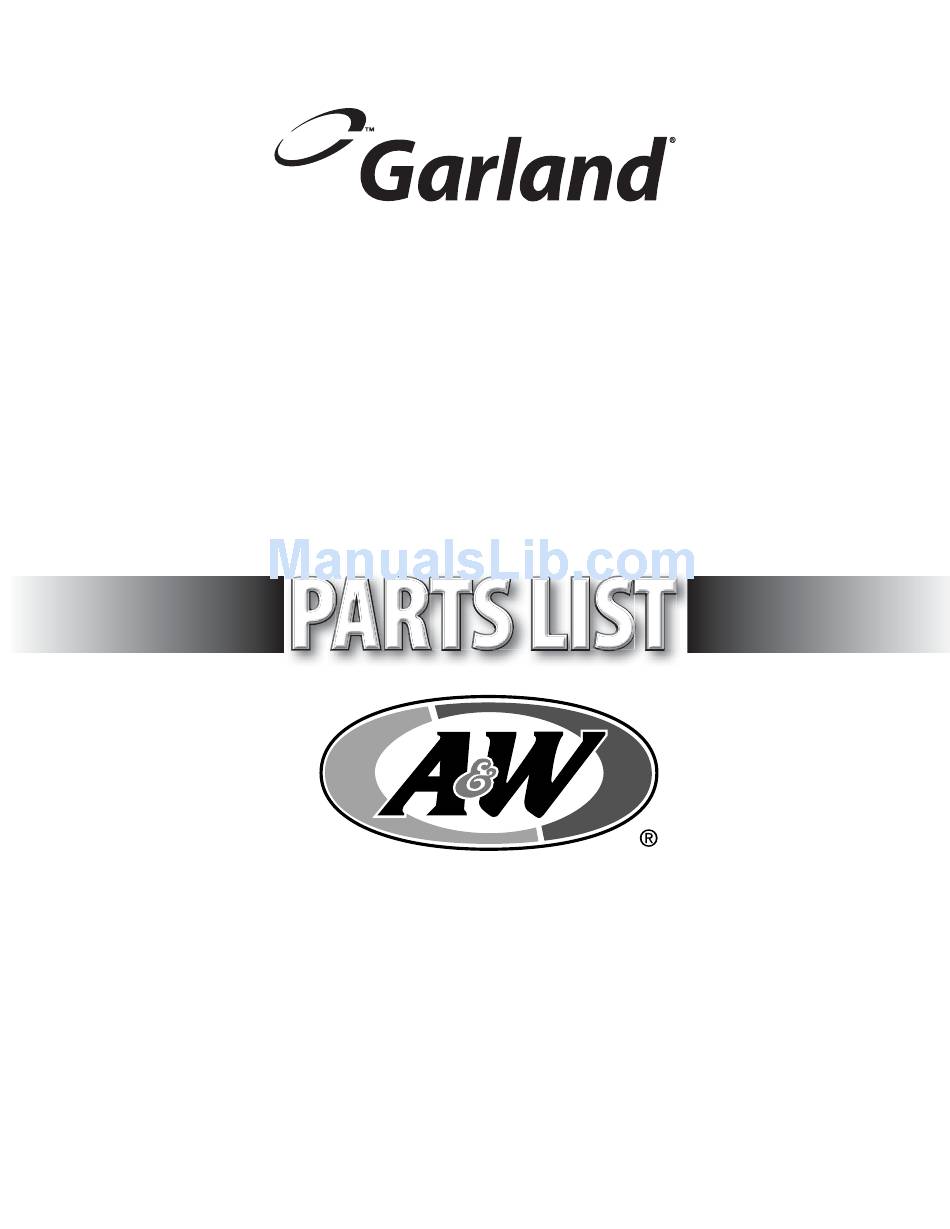

- Page 1 A&W GAS CHAIN GRIDDLE CG-24/36/48/60RFB models Phone (US & Canada): 1 800 427 6668 Fax (US & Canada): 1 800 361 7745 http://www.Garland-Group.com G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
- Page 3 Gas Chain Griddle Components ........
- Page 4 A&W Front Burnter Gas Chain Griddle Components models: CG-24/36/48/60RFB Page 4 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
- Page 5 End Radiation Shield Assembly RH 4520486 Burner Shield Assembly End 2432900 Grease Tray Slide Support 2439200 Burner Tube * NOT ILLUSTRATED RECOMMENDED STOCK PARTS GARLAND PARTS IDENTIFICATION A&W Front Burner Gas Chain Griddle Components MODELS CG-24/36/48/60RFB DESCRIPTION G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11) QUANTITY 24RFB 36RFB 48RFB...
- Page 6 Shut-Off Valve 2437100 1” - 3/4” Reducing Adapter 2450099 Manifold Assembly 2411099 Manifold Assembly 4529725 Nameplate - Garland G01747-3 Pipe Plug 3/8 NPT 2432000 Electronic Thermostat 4515805 Dial Scale Deg F 450 (Insert 150 To 450) 4516733 Dial W/Pointer 1.71” Dia.
- Page 7 Guard Kit 60” (Includes Item# 92, 94 & 95) 4516846 Guard Kit 72” (Includes Item# 92, 94 & 95) * NOT ILLUSTRATED RECOMMENDED STOCK PARTS GARLAND PARTS IDENTIFICATION A&W Front Burner Gas Chain Griddle Components MODELS CG-24/36/48/60RFB DESCRIPTION G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
- Page 8 A&W Gas Chain Griddle - Equipment Stand models: CG-24/36/48/60RFB STAND ASSEMBLY - BULLET LEG STAND ASSEMBLY - CASTERS Stand Griddle Page 8 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
- Page 9 Stand Assembly 60” Casters 113* 2437200 Lighting Instructions Label 114* 4523119 Label – Regulator 115* 4523374 Label – Keep Flue Clean * NOT ILLUSTRATED RECOMMENDED STOCK PARTS G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11) GARLAND PARTS IDENTIFICATION MODELS CG-24/36/48/60RFB DESCRIPTION QUANTITY 24RFB 36RFB 48RFB 60RFB Page 9...
