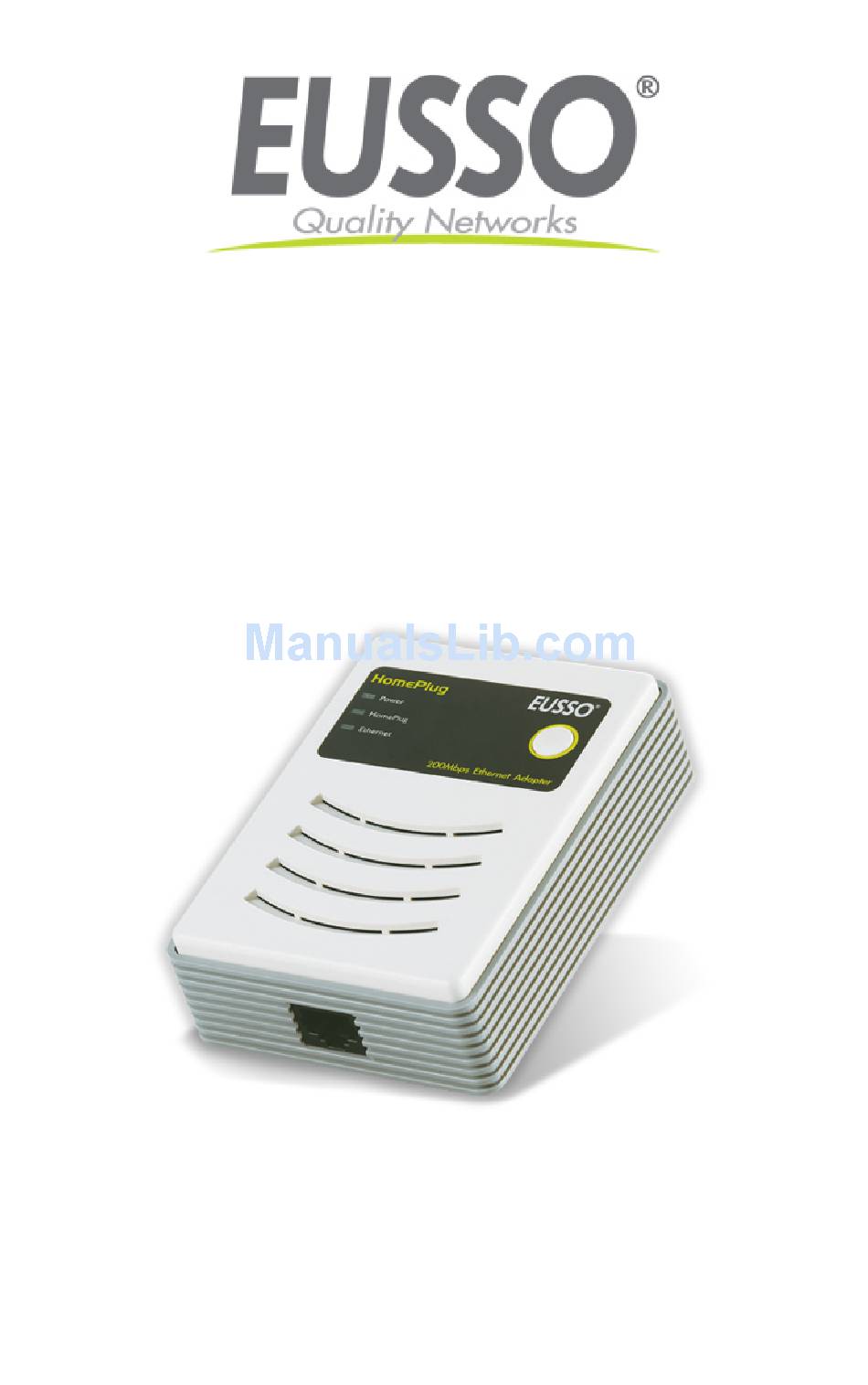

- Page 1 200 Mbps HomePlug® AV To Fast Ethernet Adapter UPL5500-201(K) User Manual Copyright EUSSO Technologies, Inc. All rights reserved.
-
Page 2: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS ................I INTRODUCTION.................. 1 200M H ® AV ..1 BOUT THE THERNET DAPTER ..................1 ERMS SAGE ................1 RODUCT EATURES IDENTIFYING EXTERNAL COMPONENTS........2 LED I ................. 2 NDICATORS ................. 3 UICK ETUP UTTON INSTALLATION.................. -
Page 4: Introduction
INTRODUCTION Thanks for purchasing of the 200M HomePlug® AV to Fast Ethernet Adapter. This Adapter will allow your Ethernet device to connect to other Ethernet devices through AC power line. About the 200M HomePlug® AV to Fast Ethernet Adapter The 200M HomePlug® AV to Fast Ethernet Adapter allows user to connect with other Ethernet enabled devices through AC power line at home or office. -
Page 5: Identifying External Components
IDENTIFYING EXTERNAL COMPONENTS This section identifies all the major external components of the 200M HomePlug® AV to Fast Ethernet Adapter. 10/100M Fast Ethernet Port Connect to Ethernet enabled device. AC Power Plug Plugging into the AC power outlet. LED Indicators Display Status description The PLC is connected to the AC power line and operation... -
Page 6: Quick Setup Button
Quick Setup Button The button is use to setup the PLC to join into the PowerLine network group quickly. Resetting the network ID Press the Quick Setup button until all LEDs extinguish (more than 10 seconds), the PLC will reset the network ID setting and generate a random network ID. -
Page 7: Connecting To Network
Connecting to network You can connect the 200M HomePlug® AV to Fast Ethernet Adapter directly to the PC’s network adapter, switch, or any other Ethernet enabled device. Note: The Ethernet port on the Adapter supports 10/100M Auto-MDI/MDIX function, you can use a straight-through or a crossover Ethernet cable when connecting to another Ethernet enabled device.) -
Page 8: Configuration Utility
Configuration Utility The HomePlug AV Utility for Windows OS enables the users to identify PLC devices on the power line network, measures data rate performance, ensures privacy and performs diagnostics by setting user defined secure power line networks. Install Configuration Utility Insert the HomePlug AV utility CD into your CD-ROM drive and the Auto-run program will appear. -
Page 9: Using The Homeplug Av Utility
Using the HomePlug AV Utility To start the HomePlug AV Utility, double click the icon on the desktop, the Configuration Utility will be executed. The Configuration Utility was divided into four functions, Device Information, Network Information, QoS, Security, Upgrade and About, for details instruction, follow the below section. -
Page 10: Device Information
Device Information The Device Information screen shows the device information including the MAC address, Firmware Version and the connected PLC device. Network Information The Network Information screen shows all devices that were on the power line network are listed here. Devices that are active on the current logical network will show a transfer rate and receiver rate. -
Page 11: Qos
QoS requirements are different for various data types such as streaming video or music, voice and raw data. To provide higher QoS for streaming data, priority levels can be set using tags at the beginning of data frames. Virtual Local Area Network (VLAN) 802.1p priority tags on Ethernet frames are used to specify 8 (0 –... - Page 12 Device Selection Select the device from the drop down list and configure the device selected. List View The QoS tab includes two list views to provide simple channel access priority (CAP) classification for individual MAC addresses and IP Ports. There is a collective limit of eight across both lists. No delimiters, colons, or dashes are allowed in the MAC address format.
-
Page 13: Network Id
Reset to default Press the Reset to default button to restore the factory default QoS setting. Save changes Press the Save changes button to save and execute the modified QoS setting. Network ID This Network ID window is used to set or change the network group Device Selection Select the device form drop down list will be configure. -
Page 14: Upgrade
Setting the local device Network ID Device Selection selected local device , enter the network ID in Network ID filed then click Save changes button to sets the entered Network ID. Device Selection selected remote device , enter the network ID in Network ID filed and enter the remote device access key in DAK password field then click Save changes button to sets the entered Network ID. -
Page 15: About
Firmware Upgrade To upgrade the firmware, press the Firmware Upgrade button and then locate the two firmware files (PIB file *.pib and firmware file *.nvm), the confirmation windows will pop up, click Yes to start the firmware upgrade or click No to abort the firmware upgrade. About The About screen shows the HomePlug AV Configuration Utility information including utility version and release date. -
Page 16: Specifications
SPECIFICATIONS 200M HomePlug AV Standards: IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet Ethernet: 10/100Mbps (Link speed) Data Speed: PowerLine: Up to 200Mbps 2MHz ~ 30MHz Frequency band: OFDM Modulation Technology: 128-bit AES. Link Encryption with Key management Secutiry: for secure powerline communications Up 300 meters (depends on environment) Range Coverage: Power, HomePlug, Ethernet...
