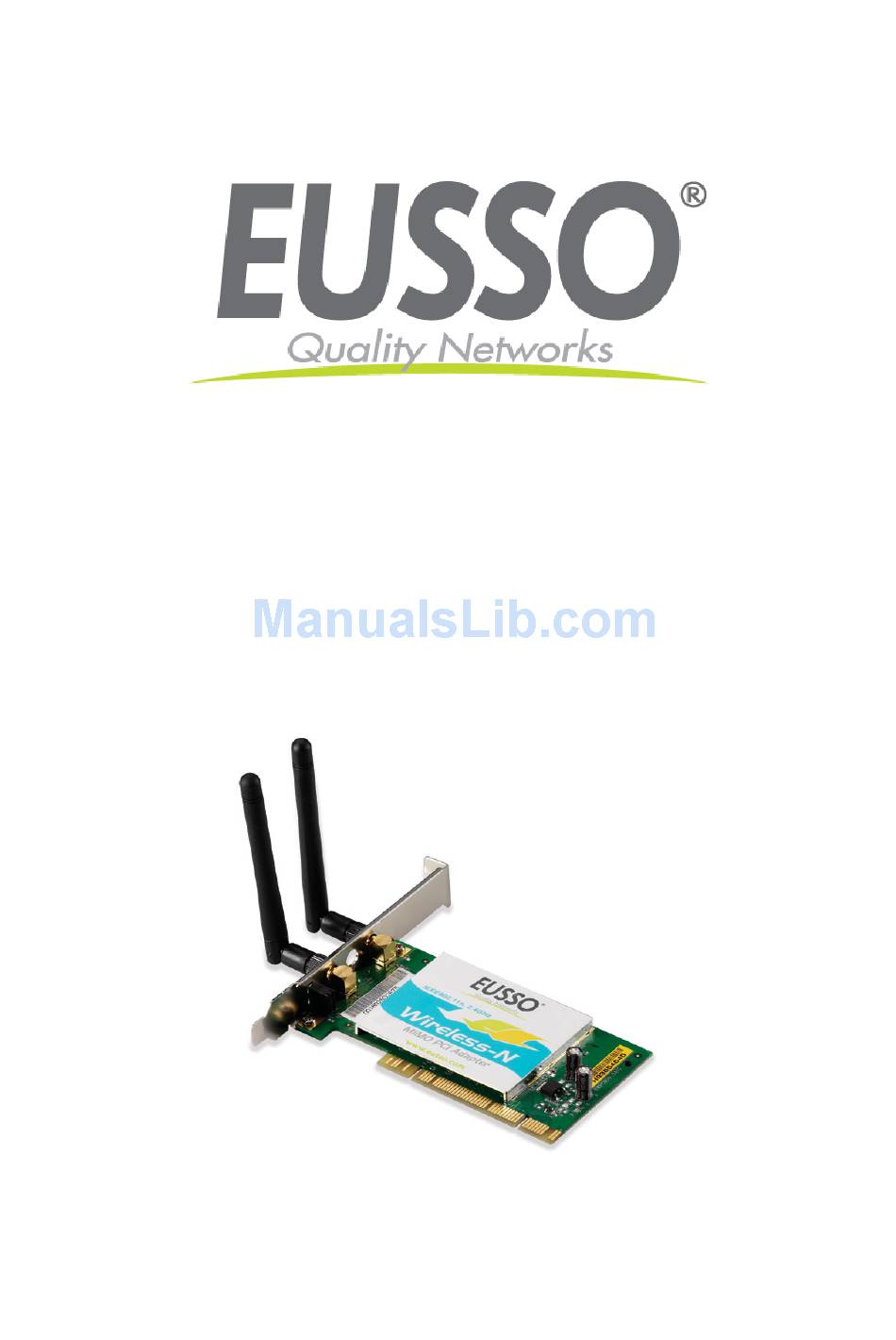

  • Page 1 Wireless-N PCI Adapter User’s Manual Copyright 2007 EUSSO Technologies, Inc. All rights reserved.

  • Page 2: Table Of Contents

    1T2R 11N PCI Adapter User Manual PREFACE ................................ 1 LAN B ..........................1 IRELESS ASICS PRODUCT OVERVIEW..........................2 ............................. 2 ACKAGE ONTENTS ..........................2 YSTEM EQUIREMENTS .............................. 2 NTRODUCTION ..............................3 EATURES ................................3 INSTALLATION OVERVIEW........................4 .............................. 4 NTRODUCTION ..........................

  • Page 3: Preface

    1T2R 11N PCI Adapter User Manual Thank you for purchasing the 1T2R 11N Wireless PCI Adapter. This manual will assist you with the installation procedure. Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage, and often are more cost effective than their wired equivalents.

  • Page 4: Product Overview

    1T2R 11N PCI Adapter User Manual • 1T2R 11N PCI Adapter • Manual on CD • PCI driver and WLAN Monitor Utility on the Install CD • A desktop computer with an available PCI slot • Windows 2000, Windows XP, or Windows Vista •...

  • Page 5: Features

    1T2R 11N PCI Adapter User Manual • Compatible with IEEE 802.11n to provide wireless 300Mbps data rate (130Mbps for Japan) • Compatible with IEEE 802.11g to provide wireless 54Mbps data rate • Compatible with IEEE 802.11b to provide wireless 11Mbps data rate •...

  • Page 6: Installation Overview

    1T2R 11N PCI Adapter User Manual Before installing the 1T2R 11N, make sure that there is already an Access Point existing on the wireless network. It is necessary for use with the Infrastructure network mode. Here are some steps you will perform in establishing your wireless network connection: Install the PCI Driver for the 1T2R 11N by using the Install CD.
  • Page 7 1T2R 11N PCI Adapter User Manual The InstallShield Wizard window will appear as follows. Please click Next. Now, you can insert the 1T2R 11N into your computer.
  • Page 8 1T2R 11N PCI Adapter User Manual The default destination folder will be specified in this InstallShield Wizard window. Also, you can click Browse... to choose another folder for storing the driver. Click Next. A default Program Folder will be offered by the setup program in this InstallShield Wizard window.
  • Page 9 1T2R 11N PCI Adapter User Manual The setup program executes the installation by copying corresponding files to your computer in this InstallShield Wizard window. Now the system will ask you to restart your computer to complete the whole installation. After choosing the proper setting, please click Finish. After restarting your computer, the system will find the hardware (wireless PCI card) automatically.

  • Page 10: Uninstalling The Pci Driver

    1T2R 11N PCI Adapter User Manual If you want to remove the driver for this wireless card, please do the following: Run Start > Programs > Normal > WLAN Monitor > Utility Uninstallation. The following InstallShield Wizard window will appear: When the following Confirm Uninstall window appears, please click OK.
  • Page 11 1T2R 11N PCI Adapter User Manual When the following InstallShield Wizard window appears, click Finish.

  • Page 12: Configuration

    1T2R 11N PCI Adapter User Manual After the driver installation is finished, it is the time to configure the wireless utility for accessing the Internet through a wireless connection. Double-click the 1T2R 11N utility icon on the system tray. Or open the wireless monitor utility by clicking Start > Programs > Normal >...

  • Page 13: Configuration

    1T2R 11N PCI Adapter User Manual The wireless PCI adapter utility will find all the available Access Points and then list them automatically for you to choose from. The following figure is just an example. The actual available list depends on the AP(s) that are found around your computer system. In the Available WLANs section, you can see: SSID This displays the SSID of the AP.
  • Page 14 1T2R 11N PCI Adapter User Manual Connect This button starts the process of creating a connection between the station (client) and the AP. In the Profile Group Control section, you can see: This allows you to add a new profile to group several APs. Click New to open the following dialog box.
  • Page 15 1T2R 11N PCI Adapter User Manual In the Preferred WLANs section, you can see: SSID This displays the SSID of the AP. Security This displays the security method that the AP is using. This allows you to add a new profile. Move to This allows you to move a selected profile to another profile group.
  • Page 16 1T2R 11N PCI Adapter User Manual Different authentication mode will guide different data encryption, key length, default key, and so on. Wireless network name Please type the name for the AP or wireless router you want to (SSID) connect to. Authentication Mode There are six modes provided for you to choose for data encryption.
  • Page 17 1T2R 11N PCI Adapter User Manual Key Length Choose the key length for the wireless card. The method you choose here must be the same as the method set in the connected AP. The number you typed here should be the same as the number set in the connected AP.
  • Page 18 1T2R 11N PCI Adapter User Manual WPA Passphrase - Type the password for authentication with AP while using WPA PSK mode. Check Passphrase - Tick this check box to allow the characters of passwords to be visible. EAP Type - A type for authentication between station and RADIUS server while executing 802.1X mode.
  • Page 19 1T2R 11N PCI Adapter User Manual Validate Server Certificate - Tick this check box to validate the server certificate for RADIUS server. User Name - Type the certificate account for the RADIUS server. Domain Name - Type the domain name for the RADIUS server. Password –...
  • Page 20 1T2R 11N PCI Adapter User Manual Default gateway – Type the default gateway for the wireless card. Obtain DNS server address automatically - Tick this check box to get a DNS server address automatically. If you do not tick this check box, you have to type a Preferred DNS server address and Alternative DNS server manually.
  • Page 21 1T2R 11N PCI Adapter User Manual Use the same proxy server for all protocols - Tick this check box to make all the protocols use the same proxy server. Secure/Port – Type the proxy IP and port number for security. FTP/Port - Type proxy IP and port number for FTP.

  • Page 22: Status

    1T2R 11N PCI Adapter User Manual This tab provides connection status and hardware information for the device. To view this tab, simply click Status on the WLAN Monitor window. Connection Status This displays the current status of the connection. SSID This displays the SSID of the AP that your computer is connected BSSID This displays the MAC address for the current device.

  • Page 23: Ption

    1T2R 11N PCI Adapter User Manual This tab displays miscellaneous options. To view this tab, simply click Option on the WLAN Monitor window. Auto launch when Tick this check box to launch the wireless connection when Windows start up Windows starts up. If you do not tick this check box, you must launch the wireless connection manually.
  • Page 24 1T2R 11N PCI Adapter User Manual networks has failed. Disable Radio Tick this check box to disable the connection function of this wireless card. Fragmentation Set the value for the fragmentation threshold. The default value is 2346. Threshold RTS Threshold Set the value for the RTS threshold.

  • Page 25: About

    1T2R 11N PCI Adapter User Manual This tab provides software information such as utility version and driver versions. To view this tab, simply click About on the WLAN Monitor window. Utility Version This displays the version number of the utility. Driver Version This displays the driver version of the wireless card.

  • Page 26: Miscellaneous

    1T2R 11N PCI Adapter User Manual Each time you power on your computer, the wireless monitor utility will be activated automatically once you have configured your PC. If you do not want the wireless monitor utility to be opened automatically, but prefer to simply enable the wireless connection, activate Windows Zero Configuration.
  • Page 27 1T2R 11N PCI Adapter User Manual 2. Next, the following window will appear. 3. Click Change Advanced Settings and the following window will open. Next, click the Wireless Networks tab.
  • Page 28 1T2R 11N PCI Adapter User Manual 4. Click Add to open the next window. In this window, type the SSID of the AP that you want to connect with the wireless card. Here, Tom is entered as an example. Choose WPA-PSK as the Network Authentication method and TKIP as the Data encryption method.
  • Page 29 1T2R 11N PCI Adapter User Manual 5. Click the Authentication tab. Choose the EAP type which is the same as configured in the AP. 6. After clicking OK, the wireless station can be associated with the AP. 7. Open the Wireless Network Connection window. Please choose “Tom” (as an example) and then click Connect.
  • Page 30 1T2R 11N PCI Adapter User Manual 8. The wireless connection process will begin. Please wait for it to complete. 9. The wireless connection has now been established and you are ready to use your WLAN.
