OK International DX-350 User Manual

OK International
DX-350 / 355

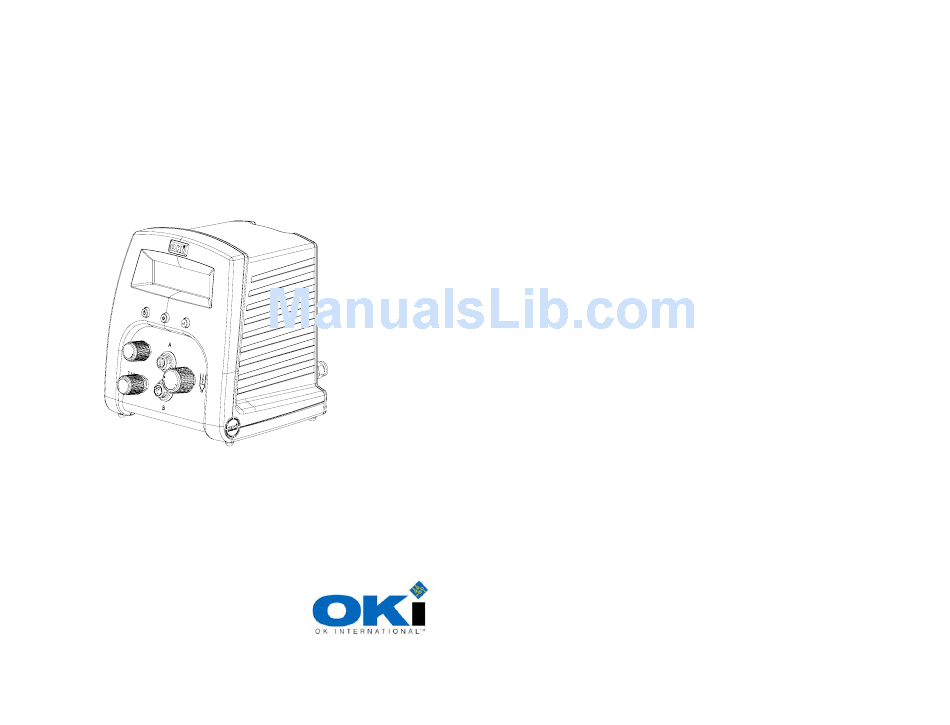

Precision Dispensers
User Guide
English, Simplified Chinese, Traditional Chinese and Korean Version
DX-350 / 355 DX-350 / 355
精密点胶机 精密點膠機
用户指南 使用者指南
Copyright © OK International
DX-350 / 355
정밀 디스펜서
사용설명서
CONTENTS
1 Safety....................................................................................................2 - 3
2 Symbol Definitions...............................................................................3
3 Specifications .......................................................................................3
4 Features ................................................................................................4
5 Connecting the Unit..............................................................................5
6 Setup Instructions .................................................................................5 - 6
7 Troubleshooting ...................................................................................7
8 Maintenance .........................................................................................8
9 Spare Parts and Accessories .................................................................8
10 Warranty ...............................................................................................8
11 I/O Configuration and End of Cycle Switch ........................................8
SAFETY
1
1.1 Intended Use:
WARNING: Use of this equipment in ways other than those described in this User
Guide may result in injury to persons or damage to property. Use this equipment
only as described in this User Guide.
OK International cannot be responsible for injuries or damages resulting from
unintended applications of its equipment. Unintended uses may result form taking
the following actions:
• Making changes to equipment that has not been recommended in the User
Guide
• Using incompatible or damaged replacement parts
• Using unapproved accessories or auxiliary equipment
1.2 Safety Precautions:
• Do not operate this unit in excess of maximum ratings/settings
• Always wear appropriate personal protective clothing or apparel
• Use only the following power adaptor models: PSA15R-240P(ZJ) or
PW118RA2403B01, PW118RA2403H01, PW118RA2403M01,
PW118RA2403G01
• Care must be taken to prevent the ingress of corrosive or flammable fluid back
into the unit. If corrosive or flammable fluids are used, an inline filter (881-
000-000) must be installed on the dispenser to help prevent the fluids from
being sucked back into the unit
• The fluid being dispensed may be toxic and/or hazardous. Refer to Material
Safety Data Sheet for proper handling and safety precautions
• If a piston is not used with the barrel, an inline filter (881-000-000) must be
installed on the receiver head to help prevent fluids from being sucked back
into the unit. Also do not overfill the barrel and to lay the barrel on its side
• Do not smoke or use open flame when flammable materials are being dispensed
Page Number
2
