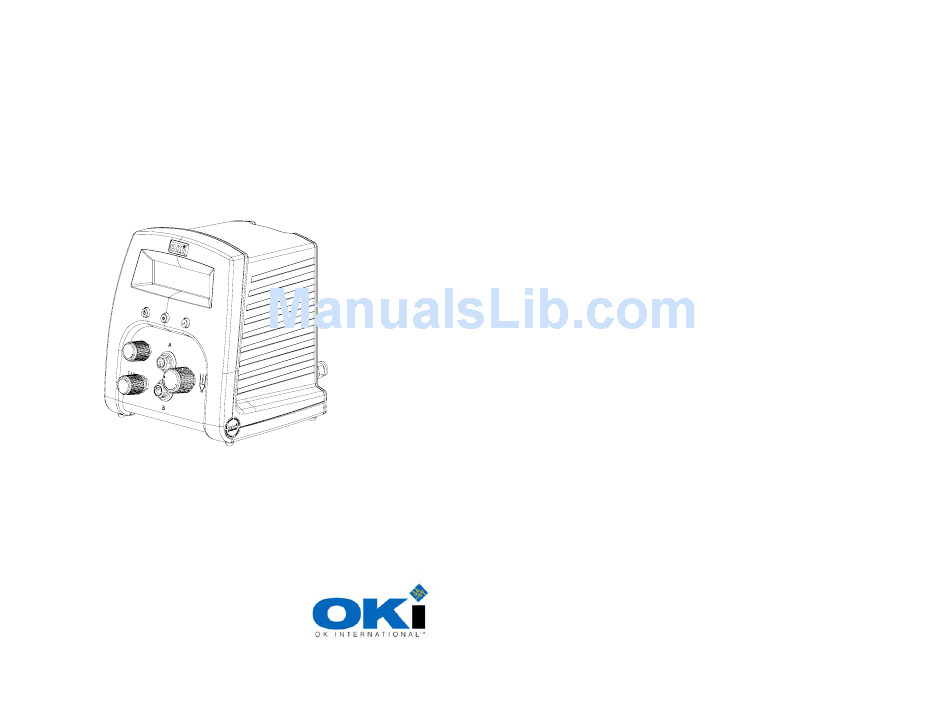

OK International DX-350 / 355 User Manual

OK International

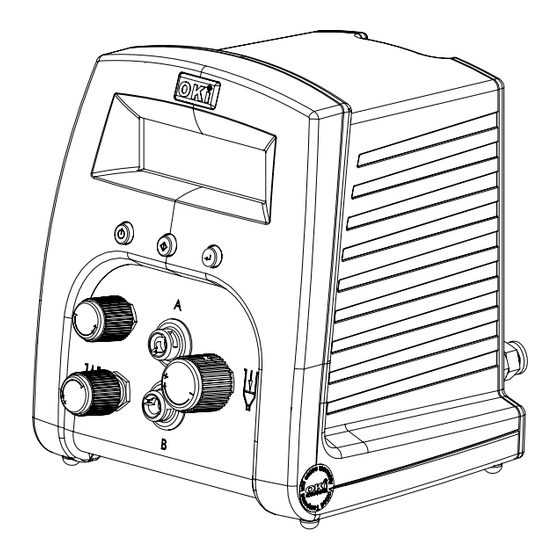

DX-350 / 355
Precision Dispensers
User Guide
English, German, French, Italian and Spanish version
DX-350 / 355 DX-350 / 355
Präzsions- Doseurs de
Dosiergeräte précision
Benutzerhandbuch Guide de
l'utilisateur
Copyright © OK International
DX-350 / 355 DX-350 / 355
Dosatore di Dosificadores de
precisione precisión
Manuale dell'utente Guía del usuario
CONTENTS
1. Safety .....................................................................2
2. Symbol Definitions .........................................................3
3. Specifications ......................................................................3
4. Features .....................................................................4
5. Connecting the Unit ..........................................................5
6. Setup Instructions .........................................................5 - 6
7. Troubleshooting .........................................................7
8. Maintenance .....................................................................8
9. Spare Parts and Accessories
10. Warranty .....................................................................8
11. I/O Configuration and End of Cycle Switch ..................................8
SAFETY
1
1.1 Intended Use:
WARNING: Use of this equipment in ways other than those described in this User
Guide may result in injury to persons or damage to property. Use this equipment
only as described in this User Guide.
OK International cannot be responsible for injuries or damages resulting from
unintended applications of its equipment. Unintended uses may result form taking
the following actions:
• Making changes to equipment that has not been recommended in the User
Guide
• Using incompatible or damaged replacement parts
• Using unapproved accessories or auxiliary equipment
1.2 Safety Precautions:
• Do not operate this unit in excess of maximum ratings/settings
• Always wear appropriate personal protective clothing or apparel
• Use only the following power adaptor models: PSA15R-240P(ZJ) or
PW118RA2403B01, PW118RA2403H01, PW118RA2403M01,
PW118RA2403G01
• Care must be taken to prevent the ingress of corrosive or flammable fluid back
into the unit. If corrosive or flammable fluids are used, an inline filter (881-
000-000) must be installed on the dispenser to help prevent the fluids from
being sucked back into the unit
• The fluid being dispensed may be toxic and/or hazardous. Refer to Material
Safety Data Sheet for proper handling and safety precautions
• If a piston is not used with the barrel, an inline filter (881-000-000) must be
installed on the receiver head to help prevent fluids from being sucked back
into the unit. Also do not overfill the barrel and to lay the barrel on its side
• Do not smoke or use open flame when flammable materials are being dispensed
Page Number
