Entering the Altimeter Mode starts a new altitude auto reading session, but it does not reset the current
ASC and DSC values or change them in any way. This means that the starting ASC and DSC values
for a new Altimeter Mode auto reading session are the values that currently are in memory. Each time
you complete an altitude auto reading session by exiting the Altimeter Mode, the total ascent value of
the current session (920 meters in the above example) is added to the session's starting ASC value.
Also, the total descent value of the current auto reading session (–820 meters in the above example) is
added to the session's starting DSC value.
Logging of trek log data continues even if you exit the Altimeter Mode.
Note
The high altitude, low altitude, total ascent, and total descent values are retained in memory when you
exit the Altimeter Mode. To clear values, perform the procedure under "To delete data in a specifi c
memory area" (page E-81).
E-72
Note that the following conditions will prevent you from obtaining accurate readings:
When air pressure changes because of changes in the weather
Extreme temperature changes
When the watch itself is subjected to strong impact
There are two standard methods of expressing altitude: absolute altitude, which expresses an absolute
height above sea level, and relative altitude, which expresses the difference between the altitudes of two
different places. This watch expresses altitudes as relative altitude.
Height of building 130 m
(relative altitude)
E-74

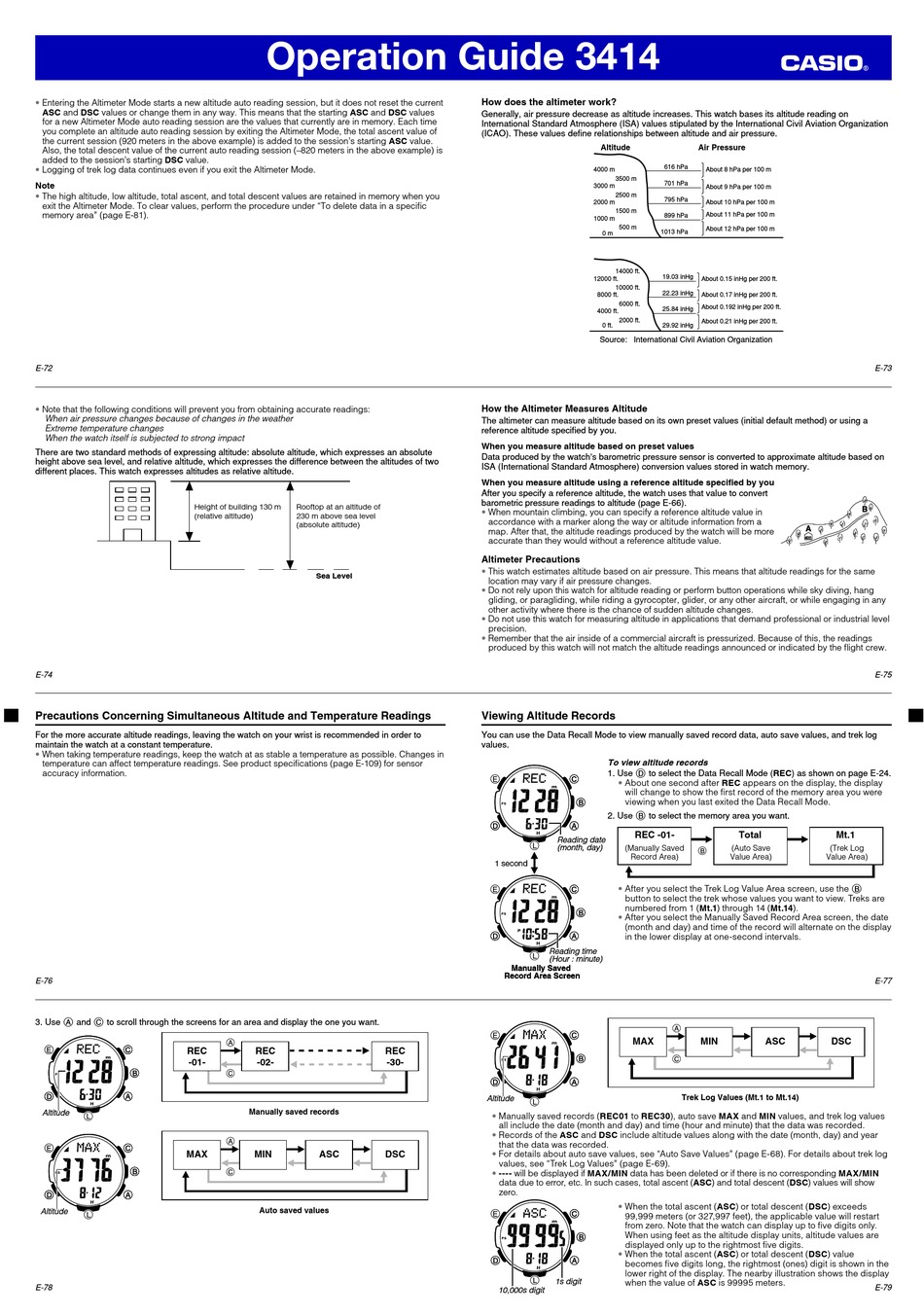

Precautions Concerning Simultaneous Altitude and Temperature Readings

For the more accurate altitude readings, leaving the watch on your wrist is recommended in order to
maintain the watch at a constant temperature.
When taking temperature readings, keep the watch at as stable a temperature as possible. Changes in
temperature can affect temperature readings. See product specifi cations (page E-109) for sensor
accuracy information.
E-76
3. Use A and C to scroll through the screens for an area and display the one you want.
REC
-01-
Altitude
Altitude
MAX
Altitude
Altitude
E-78
Operation Guide 3414
Rooftop at an altitude of
230 m above sea level
(absolute altitude)
Sea Level
REC
REC
-02-
-30-
Manually saved records
MIN
ASC
DSC
Auto saved values
How does the altimeter work?
Generally, air pressure decrease as altitude increases. This watch bases its altitude reading on
International Standard Atmosphere (ISA) values stipulated by the International Civil Aviation Organization
(ICAO). These values defi ne relationships between altitude and air pressure.
Altitude
4000 m
3500 m
3000 m
2500 m
2000 m
1500 m
1000 m
500 m
0 m
14000 ft.
12000 ft.
10000 ft.
8000 ft.
6000 ft.
4000 ft.
2000 ft.
0 ft.
Source: International Civil Aviation Organization
How the Altimeter Measures Altitude
The altimeter can measure altitude based on its own preset values (initial default method) or using a
reference altitude specifi ed by you.
When you measure altitude based on preset values
Data produced by the watch's barometric pressure sensor is converted to approximate altitude based on
ISA (International Standard Atmosphere) conversion values stored in watch memory.
When you measure altitude using a reference altitude specifi ed by you
After you specify a reference altitude, the watch uses that value to convert
barometric pressure readings to altitude (page E-66).
When mountain climbing, you can specify a reference altitude value in
accordance with a marker along the way or altitude information from a
map. After that, the altitude readings produced by the watch will be more
accurate than they would without a reference altitude value.
Altimeter Precautions
This watch estimates altitude based on air pressure. This means that altitude readings for the same
location may vary if air pressure changes.
Do not rely upon this watch for altitude reading or perform button operations while sky diving, hang
gliding, or paragliding, while riding a gyrocopter, glider, or any other aircraft, or while engaging in any
other activity where there is the chance of sudden altitude changes.
Do not use this watch for measuring altitude in applications that demand professional or industrial level
precision.
Remember that the air inside of a commercial aircraft is pressurized. Because of this, the readings
produced by this watch will not match the altitude readings announced or indicated by the fl ight crew.

Viewing Altitude Records

You can use the Data Recall Mode to view manually saved record data, auto save values, and trek log
values.

To view altitude records

1. Use D to select the Data Recall Mode (REC) as shown on page E-24.
About one second after REC appears on the display, the display
will change to show the fi rst record of the memory area you were
viewing when you last exited the Data Recall Mode.
2. Use B to select the memory area you want.
REC -01-
Reading date
Reading date
(month, day)
(month, day)
(Manually Saved
Record Area)
1 second
1 second
After you select the Trek Log Value Area screen, use the B
button to select the trek whose values you want to view. Treks are
numbered from 1 (Mt.1) through 14 (Mt.14).
After you select the Manually Saved Record Area screen, the date
(month and day) and time of the record will alternate on the display
in the lower display at one-second intervals.
Reading time
Reading time
(Hour : minute)
(Hour : minute)
Manually Saved
Manually Saved
Record Area Screen
Record Area Screen
MAX
Altitude
Altitude
Manually saved records (REC01 to REC30), auto save MAX and MIN values, and trek log values
all include the date (month and day) and time (hour and minute) that the data was recorded.
Records of the ASC and DSC include altitude values along with the date (month, day) and year
that the data was recorded.
For details about auto save values, see "Auto Save Values" (page E-68). For details about trek log
values, see "Trek Log Values" (page E-69).
---- will be displayed if MAX/MIN data has been deleted or if there is no corresponding MAX/MIN
data due to error, etc. In such cases, total ascent (ASC) and total descent (DSC) values will show
zero.
When the total ascent (ASC) or total descent (DSC) exceeds
99,999 meters (or 327,997 feet), the applicable value will restart
from zero. Note that the watch can display up to fi ve digits only.
When using feet as the altitude display units, altitude values are
displayed only up to the rightmost fi ve digits.
When the total ascent (ASC) or total descent (DSC) value
becomes fi ve digits long, the rightmost (ones) digit is shown in the
lower right of the display. The nearby illustration shows the display
1s digit
1s digit
when the value of ASC is 99995 meters.
10,000s digit
10,000s digit
Air Pressure
616 hPa
About 8 hPa per 100 m
701 hPa
About 9 hPa per 100 m
795 hPa
About 10 hPa per 100 m
About 11 hPa per 100 m
899 hPa
About 12 hPa per 100 m
1013 hPa
19.03 inHg
About 0.15 inHg per 200 ft.
22.23 inHg
About 0.17 inHg per 200 ft.
About 0.192 inHg per 200 ft.
25.84 inHg
About 0.21 inHg per 200 ft.
29.92 inHg
A
A
400
400
Total
(Auto Save
(Trek Log
Value Area)
Value Area)
MIN
ASC
DSC
Trek Log Values (Mt.1 to Mt.14)
E-73
B
B
E-75
Mt.1
E-77
E-79
