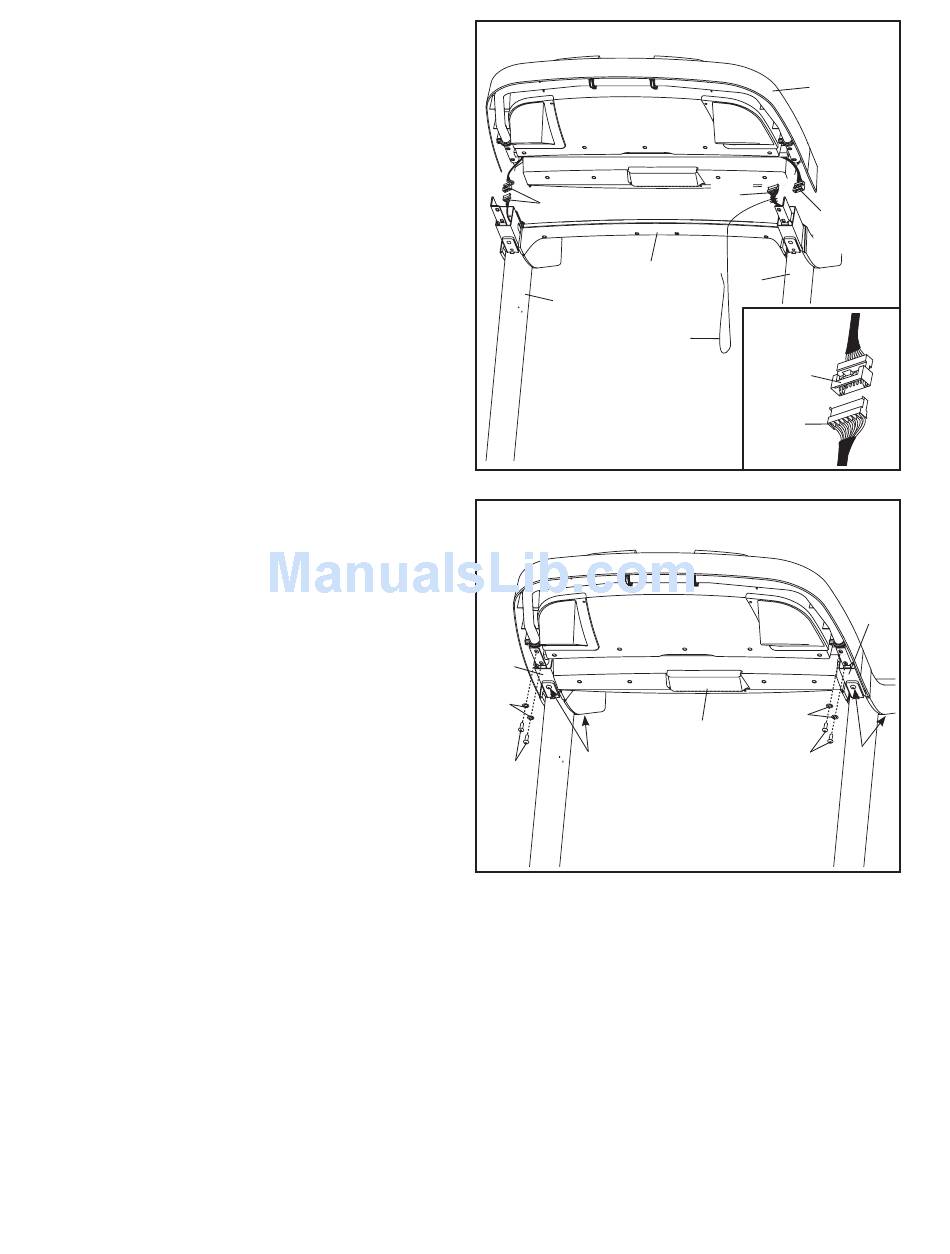

12. With the help of a second person, hold the con-
sole assembly near the Uprights (90, 99).
Connect the Upright Wire (88) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Next, connect the two pulse wires. Then,
remove the wire tie from the Upright Wire (88).
13. Insert the pulse wires and the Upright Wire (not
shown) into the Handrails (92, 93) as you set
the console assembly on the Handrails.
Attach the console assembly with the four 5/16"
x 5/8" Screws (4) and four 5/16" Star Washers
(12) that you removed in step 11. Start all four
Screws, and then tighten them.
Tighten the four 3/8" x 1" Screws (6).
