Model No. PETL12816.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 1D, The Gateway
Fryers Way, Silkwood Park
OSSETT
WF5 9TJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
www.iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIER 900 and is the answer not in the manual?

Questions and answers

Related Manuals for ProForm PREMIER 900

Summary of Contents for ProForm PREMIER 900

  • Page 1 USER’S MANUAL Model No. PETL12816.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal CUSTOMER SERVICE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd. Unit 1D, The Gateway Fryers Way, Silkwood Park OSSETT...

  • Page 2: Table Of Contents

    Bluetooth SIG, Inc. and are used under license. ® IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. PROFORM is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 21. The treadmill is capable of high speeds. 25. When folding or moving the treadmill, make Adjust the speed in small increments to sure that the storage latch is holding the avoid sudden jumps in speed. frame securely in the storage position. 22.

  • Page 5: Before You Begin

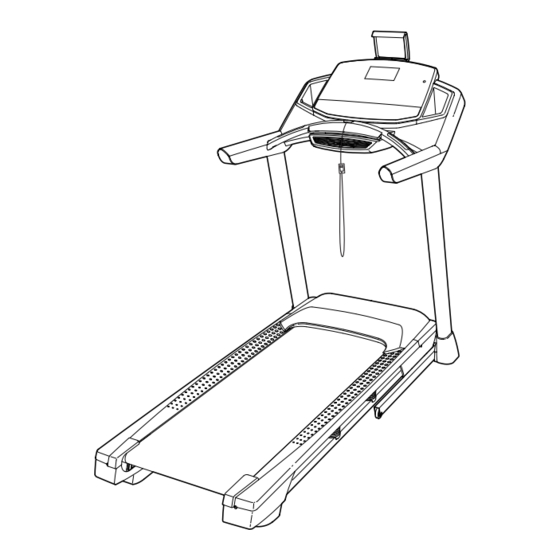

    Thank you for selecting the revolutionary reading this manual, please see the front cover of this PROFORM PREMIER 900 treadmill. The PREMIER manual. To help us assist you, please note the product ® 900 treadmill offers a selection of features designed model number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 6. • Place all parts in a cleared area and remove the • Assembly requires the following tools: packing materials. Do not dispose of the packing the included hex key materials until you finish all assembly steps.
  • Page 8 3. Lay the Right Upright (90) near the Base (94). Press the Grommet (77) into the square hole (B) in the Right Upright. Make sure not to pinch the ground wire (C). Next, remove and discard the indicated screw (D). Then, attach the ground wire to the Right Upright (90) with a #8 x 1/2"...
  • Page 9 6. Identify the Left Handrail (86). Attach the Left Handrail (86) to the Left Upright (89) with two 5/16" x 2 1/2" Screws (28) and two 5/16" Star Washers (11); firmly tighten the Screws. Insert the Upright Wire (81) through the hole in the bottom of the Right Handrail (87) as shown.
  • Page 10 8. Note: If the treadmill is assembled on a smooth surface, it may roll forward during this step. Raise the Frame (56) to the upright position. IMPORTANT: Do not raise the Frame past the vertical position. Have a second person hold the Frame until step 10 is completed.
  • Page 11 10. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4" Bolt (3) from the bracket on the Latch Crossbar (38). Align the upper end of the Storage Latch (53) with the bracket on the Latch Crossbar (38), and insert the 5/16" x 2 1/4" Bolt (3) through the bracket and the Storage Latch.
  • Page 12 12. IMPORTANT: To avoid damage, do not use power tools and do not overtighten the #10 x 3/4" Screws (9). Attach the console assembly (J) to the Left and Right Handrails (86, 87) with four #10 x 3/4" Screws (9) and four #10 Star Washers (5); start all four Screws, and then tighten them.
  • Page 13 14. Attach the Left Handrail Cover (79) and the Right Handrail Cover (92) to the Left and Right Handrails (86, 87) with six #8 x 1/2" Screws (1); do not overtighten the Screws. 15. Slide the Left Bottom Handrail Cover (85) up against the Left Handrail Cover (79), and attach the Left Bottom Handrail Cover with two #8 x 1/2"...
  • Page 14 16. Firmly tighten the four 3/8" x 2 3/8" Screws (7) and the two 3/8" x 1 1/4" Screws (63). Next, tighten the two 3/8" x 1 3/4" Screws (62); the Wheels (97) must turn freely. Next, set the Left Inner Base Cover (107) onto the lower end of the Left Upright (89).

  • Page 15: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. This product must be earthed. If it should malfunc- 1. Plug the indicated end of the power cord into the tion or break down, earthing provides a path of least socket on the treadmill.
  • Page 16 CONSOLE DIAGRAM MAKE YOUR FITNESS GOALS A REALITY WITH FEATURES OF THE CONSOLE IFIT.COM The advanced treadmill console offers a selection of With your new iFit-enabled fitness equipment, you can features designed to make your workouts more effec- use an array of features on iFit.com to make your fit- tive and enjoyable.
  • Page 17 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN IMPORTANT: If the treadmill has been exposed to The console features a tablet with a full-color touch cold temperatures, allow it to warm to room tem- screen. The following information will help you become perature before you turn on the power.
  • Page 18 HOW TO SET UP THE CONSOLE To use the equipment settings mode, see page 24. To use the sound system, see page 26. To Before using the treadmill for the first time, set up the use the internet browser, see page 26. To use the maintenance mode, see page 27.
  • Page 19 If you press one of the Quick Speed buttons, the As you walk or run on the treadmill, the screen can walking belt will gradually change speed until it show the following workout information: reaches the selected speed setting. • The incline level of the treadmill To stop the walking belt, press the Stop button.
  • Page 20 6. Measure your heart rate if desired. 8. When you are finished exercising, remove the key from the console. Note: If you use the handgrip heart rate moni- Step onto the walking platform and touch the home tor and a chest heart rate monitor at the same button or the back button on the screen or press time, the console will not display your heart the Stop button on the console.
  • Page 21 3. Start the workout. To pause the workout, touch either the back button or the home button in the lower-left corner of the Touch the Start Workout button to start the work- screen, or press the Stop button on the console. out.
  • Page 22 3. Select a set-a-goal workout. 5. Monitor your progress with the displays. To select a set- See step 5 on page 19. a-goal workout, 6. Measure your heart rate if desired. touch the Set A Goal button on the screen. See step 6 on page 20.
  • Page 23 4. Enter your maximum heart rate. 3. Log in to your iFit account. Touch the increase and decrease buttons to enter If you have not already done so, touch the Login your maximum heart rate. You can also adjust the button to log in to your iFit account.
  • Page 24 5. Start the workout. 2. Select the equipment settings mode. See step 3 on page 21. In the settings main menu, touch the Equipment Settings button. Note: Slide or flick the screen to During some workouts, an audio coach may guide scroll up or down through the options if necessary.
  • Page 25 7. Turn on or turn off the display demo mode. 11. Enable or disable a passcode. The console features a display demo mode, The console features a child-safety passcode, designed to be used if the treadmill is displayed designed to prevent unauthorized users from using in a store.
  • Page 26 HOW TO USE THE SOUND SYSTEM HOW TO USE THE INTERNET BROWSER To play music or audio books through the console Note: To use the browser, you must have access to a sound system while you exercise, plug a 3.5 mm male wireless network including an 802.11b/g/n router with to 3.5 mm male audio cable (not included) into the jack SSID broadcast enabled (hidden networks are not...
  • Page 27 HOW TO USE THE MAINTENANCE MODE 4. Calibrate the incline system of the treadmill. 1. Select the settings main menu. Touch the Calibrate Incline button. Then, touch the Begin button to calibrate the incline system. The See step 1 on page 24. treadmill will automatically rise to the maximum incline level, lower to the minimum incline level, 2.
  • Page 28 HOW TO USE THE WIRELESS NETWORK MODE An information box will ask if you want to connect to the wireless network. Touch the Connect button The console features a wireless network mode that to connect to the network or touch the Cancel but- allows you to set up a wireless network connection.

  • Page 29: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero before you fold the treadmill. Then, remove left.

  • Page 30: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE SYMPTOM: The power turns off during use Regular maintenance is important for optimal perfor- a. Check the power switch (see drawing c at the left). mance and to reduce wear. Inspect and properly tighten If the switch has tripped, wait for five minutes and all parts each time the treadmill is used.
  • Page 31 SYMPTOM: The walking belt slows when walked on Locate the Reed Switch (113) and the Magnet (112) on the left side of the Pulley (49). Turn the Pulley until the Magnet is aligned with the Reed a. If an extension cord is needed, use only a 3-conduc- Switch.
  • Page 32 SYMPTOM: The walking belt is not centered SYMPTOM: The tablet holder does not stay in place between the foot rails. IMPORTANT: If the walking belt rubs against the foot rails, the walking belt a. Rotate the tablet holder backwards. Then, tighten may become damaged.

  • Page 33: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 34: Part List

    PART LIST Model No. PETL12816.0 R0316A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw 3/8" Plastic Bushing #8 x 3/4" Screw 3/8" Washer 5/16" x 2 1/4" Bolt Storage Latch 5/16" x 1/2" Screw Drive Motor #10 Star Washer Motor Belt 5/16"...
  • Page 35 Key No. Qty. Description Key No. Qty. Description Clip 1/4" x 1 1/4" Screw Magnet 1/4" Nut Reed Switch Motor Bushing M5 Washer Filter Tablet Holder Motor Isolator #8 x 5/8" Washer Head Screw Receptacle Left Inner Base Cover 3/4" Plastic Spacer #8 x 1/2"...

  • Page 36: Exploded Drawing

    EXPLODED DRAWING A Model No. PETL12816.0 R0316A...
  • Page 37 EXPLODED DRAWING B Model No. PETL12816.0 R0316A...
  • Page 38 EXPLODED DRAWING C Model No. PETL12816.0 R0316A...
  • Page 39 EXPLODED DRAWING D Model No. PETL12816.0 R0316A...

  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
