Decorative Heat Lamps
Installation and Operating Manual
400
500
600
Do not operate this equipment unless you have
read and understood the contents of this manual!
Failure to follow the instructions contained in this
manual may result in serious injury or death. This
manual contains important safety information
concerning the maintenance, use, and operation
of this product. If you're unable to understand the
contents of this manual, please bring it to the
attention of your supervisor. Keep this manual in
a safe location for future reference.
DL Series
I&W #07.05.147.00
700
725
Register your unit online!
See IMPORTANT OWNER INFORMATION section for details.
750
760
No opere este equipo al menos que haya leído y
comprendido el contenido de este manual!
Cualquier falla en el seguimiento de las
instrucciones contenidas en este manual puede
resultar en un serio lesión o muerte. Este manual
contiene importante información sobre seguridad
concerniente al mantenimiento, uso y operación
de este producto. Si usted no puede entender el
contenido de este manual por favor pregunte a su
supervisor. Almacenar este manual en una
localización segura para la referencia futura.
775
800
© 2010 Hatco Corporation
Advertisement
Table of Contents
Related Manuals for Hatco DL-400
Summary of Contents for Hatco DL-400
- Page 1 Si usted no puede entender el attention of your supervisor. Keep this manual in contenido de este manual por favor pregunte a su a safe location for future reference. supervisor. Almacenar este manual en una localización segura para la referencia futura. © 2010 Hatco Corporation...
-
Page 2: Table Of Contents
Additional information can be found by visiting our web site at www.hatcocorp.com. INTRODUCTION Hatco Decorative Heat Lamps are designed to hold food at This manual provides the installation, safety, and operating serving temperatures as well as enhance restaurant decor. instructions for Decorative Heat Lamps. Hatco recommends all... -
Page 3: Important Safety Information
This unit has no “user-serviceable” parts. If service is as damage to unit and/or its surroundings. required on this unit, contact an Authorized Hatco Service • Turn power OFF at mounting location before Agent or contact the Hatco Service Department at 800-558- installation of unit. -
Page 4: Model Description

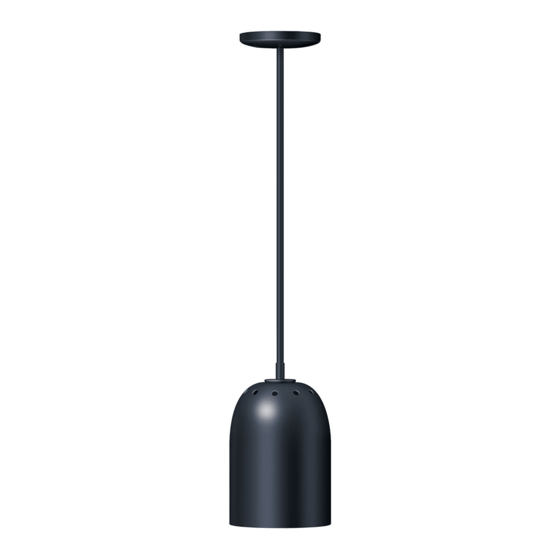

(REM) or with no switch. Decorative Heat Lamp is available with a heat bulb contained in a vented shade (Luminaire bulb not available from Hatco). CAUTION The shade is available in powdercoated Designer colors, gloss finishes, or plated finishes. -
Page 5: Model Designation
MODEL DESIGNATION D L H - 700 - S T U Decorative Lamp Switch Location: (Heat Lamp or Luminaire) U = Upper ON/OFF Switch High Wattage (not available with High Watt, Trac Mount, or R Mount) Shade Style L = Lower ON/OFF Switch (not available with High Watt or A Mount) R = Remote ON/OFF Switch... -
Page 6: Installation
NOTICE Damage to countertop material such as Corian and similar ® products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the countertop material for application information. Form No. DHLM-1010... -
Page 7: Assembly
INSTALLATION Assembly Assembling an A, P, or S Mount Unit 1. Feed the wires from the lamp through the stem. Screw the Models with Mounting Styles C, CT, R, and RT are cord hung stem into the coupling on the lamp and tighten securely. If fixtures and are shipped fully assembled and ready for the unit is equipped with a pivot mount, straighten the pivot installation. -
Page 8: Installing A, C, P, S, And R Mount Units
NOTICE 3. Slide the canopy cover or cord housing up until it rests against the ceiling and install the two ball cap nuts until Hatco DL heat lamps are built to fit HALO brand L651, ® snug to the ceiling. - Page 9 INSTALLATION The Trac system must be mounted using the appropriate IMPORTANT NOTE: fasteners in the pre-drilled mounting holes as follows: After Trac has been field cut, make sure that each 4’ (1219 mm) section or less in length has one mounting hole spaced •...
- Page 10 INSTALLATION Installing the Trac 5. Fasten the ceiling plate to the junction box with two screws. Pull the wires from the junction box through the open hole in the live end. WARNING 6. Cut and strip the wire leads (3/8” strip) and fasten to the Turn power OFF at mounting location before installation of screw terminals in the live end fitting.
-
Page 11: Operation
Read all safety messages in the Important Safety Information section before operating this equipment. Hatco Corporation is not responsible for the actual food product serving temperature. It is the responsibility of the user to ensure that the food product is held and served at a safe temperature. -
Page 12: Maintenance
This unit has no “user-serviceable” parts. If service is to operate safely in Hatco equipment. required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558- 1. To replace a bulb, move the ON/OFF switch in the OFF 0607 or 414-671-6350;... -
Page 13: Troubleshooting Guide
Corrective Action Unit is not working at all. Unit not turned on. Place ON/OFF switch, if equipped, in the ON position. ON/OFF switch is not functioning. Contact Authorized Service Agent or Hatco for assistance. Bulb has burned out. Replace bulb. -
Page 14: Options And Accessories
OPTIONS AND ACCESSORIES Heat Bulbs Track Bar Mount The following heat bulbs are available for use in Hatco Track Bar Mounts are available for track mount units (CT, ST, Decorative Heat Lamps. and RT mounting style) and can be ordered in 4' (1219 mm), 8' (2438 mm), or 12' (3658 mm) track lengths. -
Page 15: Limited Warranty
Hatco’s option, to repair or replacement Drawer Warmer Elements (metal sheathed) using new or refurbished parts or Product by Hatco or a Hatco- authorized service agency (other than where Buyer is located Drawer Warmer Drawer Rollers and Slides... -
Page 16: Authorized Parts Distributors
