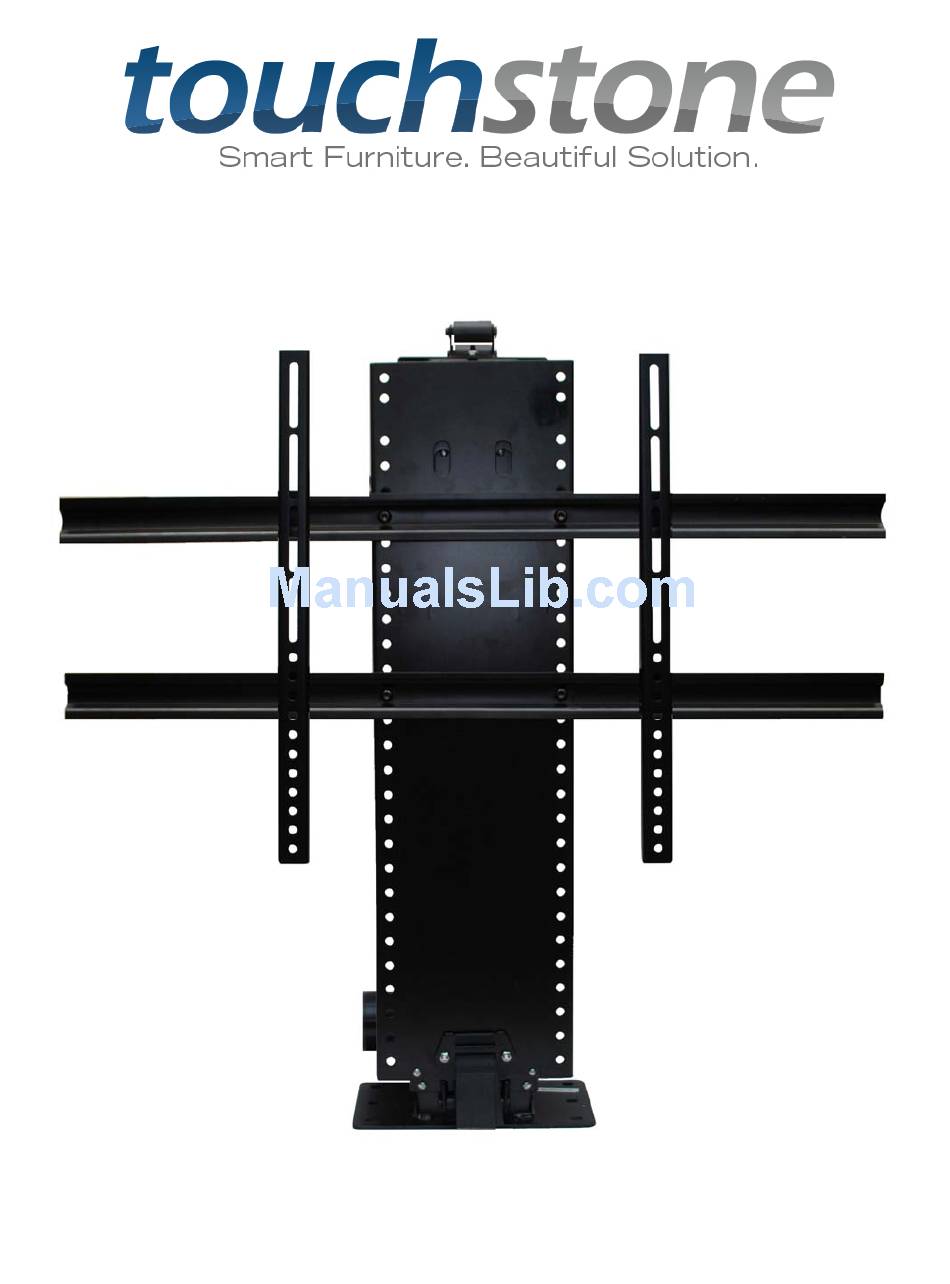

- Page 1 Whisper Lift II Owner’s Manual...
-
Page 2: Table Of Contents
Whisper Lift II Table of Contents About Your Touchstone Whisper Lift II TV Lift ....................3 Lift Features ................................3 Safety.................................... 4 IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS..............4 Lift Components & TV Installation Hardware......................5 Components ................................5 Hardware................................... 5 Tools .................................. -
Page 3: About Your Touchstone Whisper Lift Ii Tv Lift
- Lift cycle fully raises or lowers in approximately 30 seconds. - Universal quick connect installation takes just minutes. Includes hardware kit with bolts and screws. - 3-way adjustable mounting system to ensure that the Whisper Lift II is compatible with almost all flat panel TVs in the market today. -
Page 4: Safety
Safety Mounting your flat screen TV to the Touchstone Whisper Lift II TV lift is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and toeinsure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual. -
Page 5: Lift Components & Tv Installation Hardware
If that is the case, these screws can be purchased at most hardware/home improvement stores. Tools In order to assemble the Whisper Lift II, you will need the following tools: - Philips-head screwdriver - size 4 metric hex wrench... -
Page 6: Assembling Your Whisper Lift Ii
Whisper Lift II Assembling Your Whisper Lift II Assembling Lift Mounting Supports Tools Needed: - adjustable wrench Parts Needed During This Step: - TV Lift - Lift Mount Brackets - 2 large lock nuts Instructions: 1. Locate the Lift Mount Bolts on the back of the lift. - Page 7 Whisper Lift II Assembling Lift Mounting Supports- cont 2. Place the long end of the lift mounting brackets over each bolt and fasten bracket to bolt with lock nut with an adjustable wrench. When complete, the distance between the holes on the mounting bracket should be approx 9”.
-
Page 8: Mounting And Installing The Tv
Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV. - Page 9 Whisper Lift II Attaching TV Mounting Brackets to Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.
-
Page 10: Installing Crossbrackets On Tv Lift
Whisper Lift II Installing Crossbrackets on TV Lift Tools Needed: - adjustable wrench - size 5 metric hex wrench Parts Needed During This Step: - TV Lift - 2 cross brackets - 4 large hex screws- size 5 - 4 large lock nuts Instructions: 1. - Page 11 Whisper Lift II Installing Crossbrackets on TV Lift – cont 3. Mount the bottom crossbracket 7 holes down from the top crossbracket. Use the remaining 2 large hex screws and 2 lock nuts to secure the crossbracket to the lift.
-
Page 12: Fasten Lift To Cabinet
Whisper Lift II Fasten Lift To Cabinet Tools Needed: - Phillips head screwdriver Parts Needed During This Step: - 6 phillips head screws (provided) Instructions: 1. Open cabinet lid and place lift in cabinet. 2. Align lift with mounting holes on floor and back wall of cabinet (fig A) 3. -
Page 13: Hookup Lift Control Box And Power Supply
Whisper Lift II Hookup Lift Control Box and Power Supply Parts Needed During This Step: - Control box - Power supply - Wired remote Instructions: Installing Control Box 1. Remove the backing from the Velcro on the back of the control box. -
Page 14: Installing Tv On Lift
Whisper Lift II Installing TV on Lift 1. Using the internal wired control, move the lift to the up position. The UP button is the button opposite of the cable side of the wired remote. DOWN 2. Hang TV on top crossbracket. -
Page 15: Setting Adjustable Roller Height
Whisper Lift II Setting Adjustable Roller Height Each Whisper Lift II comes with an adjustable roller assembly that allows you to set the maximum height of the lift. Tools Needed: - adjustable wrench or 4mm socket wrench - size 4 metric hex wrench Instructions: 1. -
Page 16: Operating The Whisper Lift Ii
Operating the Whisper Lift II Operating the Wireless Remote The remote control for your Touchstone Whisper Lift II is controlled via radio frequency. You do not need to point the remote control directly at the cabinet to operate the lift. -
Page 17: Assembling Component Shelf (Optional)
Whisper Lift II Assembling Component Shelf (optional) For your convenience, Touchstone Home Products offers a component shelf that will attach to the Whisper Lift II for storing components such as a DVD player, cable box, etc. Tools Needed: - adjustable wrench... - Page 18 Whisper Lift II Assembling Component Shelf – cont 2. Using the 2 remaining small nuts and bolts (D), attach the shelf brackets (C) to the lift. The shorter end of the shelf bracket attaches underneath of the shelf. Shelf Brackets Shelf Brackets 3.
-
Page 19: Technical Support
Whisper Lift II Technical Support Should you have any problems with your Touchstone Home Products Whisper Lift II, our technical support staff is here to help. Our technical support reps are available for phone assistance at 1-800-215-1990Monday to Friday, from 8:00am to 5:00pm EST. We also can be reached via email at support@touchstonehomeproducts.com...
