Summary of Contents for Touchstone Whisper Lift II

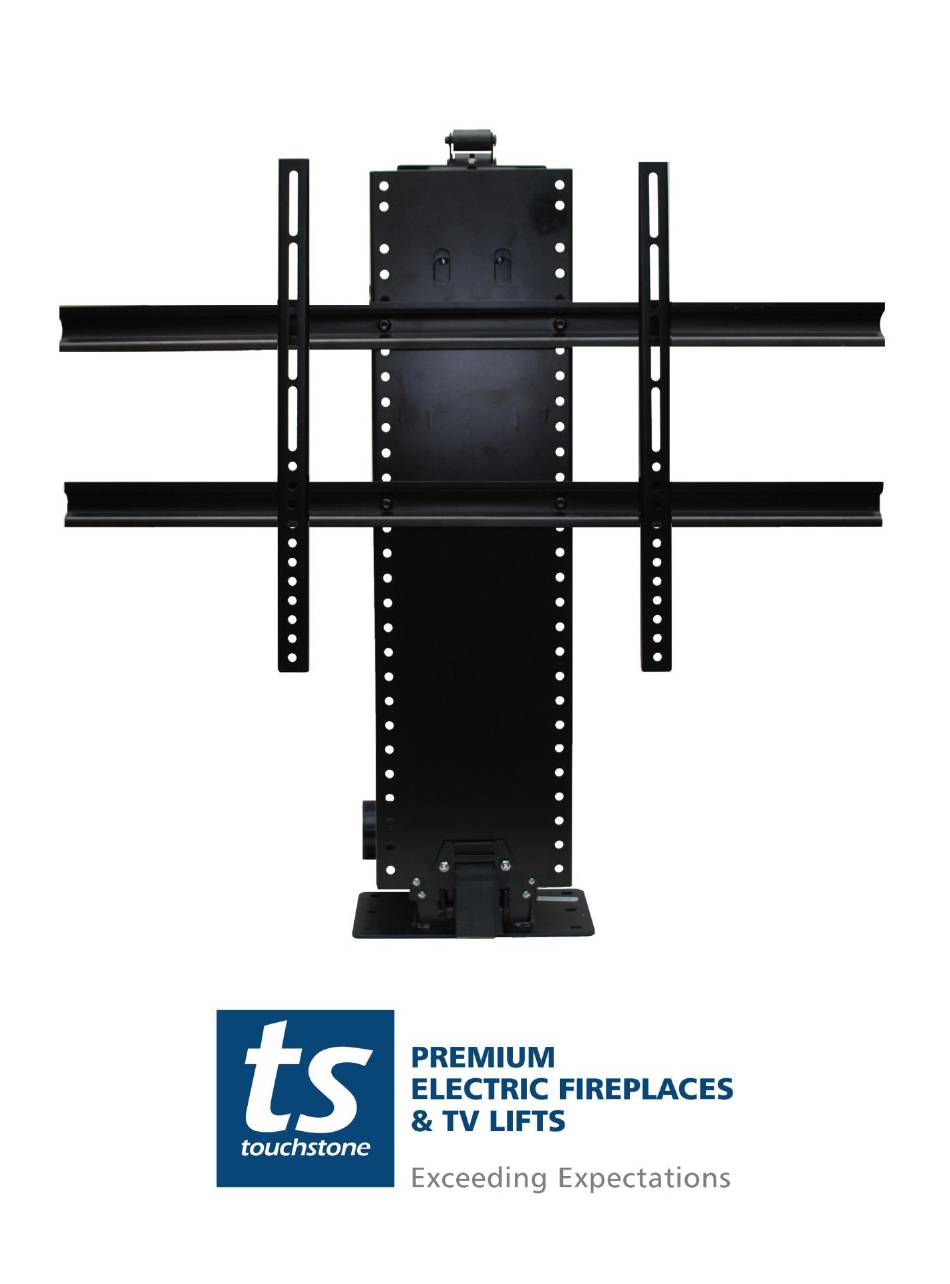

  • Page 1 Whisper Lift II Owner’s Manual...

  • Page 2: Table Of Contents

    Mounting and Installing the TV ..........................14 Attaching TV Mounting Brackets to Flat Panel TV ....................14 Installing TV on Lift ............................... 16 Installing Locking Brackets on Whisper Lift II TV Lift..................17 Optional Accessories ..............................20 Add-On Component Shelf (optional)........................20 IR Repeater Kit (optional) ............................

  • Page 3: Lift Features

    - Universal quick connect installation takes just minutes. Includes hardware kit with bolts for mounting TV. - 3-way adjustable mounting system to ensure that the Whisper Lift II is compatible with almost all flat panel TVs in the market today.

  • Page 4: Safety

    Safety Mounting your flat screen TV to the Touchstone Whisper Lift II TV lift is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to ensure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual.

  • Page 5: Lift Components & Tv Installation Hardware

    If that is the case, these screws can be purchased at most hardware/home improvement stores. Tools In order to assemble the Whisper Lift II, you will need the following tools: - Philips-head screwdriver - size 4 metric hex wrench...

  • Page 6: Assembling Your Whisper Lift Ii

    - adjustable wrench Instructions: The Whisper Lift II ships with 2 mounting brackets pre-installed on the back of the lift as shown in the picture below: Typically, these brackets do not require any adjusting by the customer. Should you need to adjust these brackets to level the lift, loosen the nuts holding the bracket to the lift and move the bracket accordingly.

  • Page 7: Installing Crossbrackets On Tv Lift

    Whisper Lift II Installing Crossbrackets on TV Lift Tools Needed: - adjustable wrench - size 5 metric hex wrench Parts Needed During This Step: - TV Lift - 2 cross brackets - 4 large hex screws- size 5 - 4 large lock nuts Instructions: 1.
  • Page 8 Whisper Lift II Installing Crossbrackets on TV Lift – cont 3. Mount the bottom crossbracket 7 holes down from the top crossbracket. Use the remaining 2 large hex screws and 2 lock nuts to secure the crossbracket to the lift.

  • Page 9: Fasten Lift To Cabinet

    Parts Needed: The Whisper Lift II TV Lift has 8 mount points (2 on the back of the lift and 6 on the floor). Use the rear 2 mount points and at least 4 of the 6 floor mount points to mount the lift in your cabinet.

  • Page 10: Setup And Operating The Whisper Lift Ii

    Whisper Lift II Setup and Operating the Whisper Lift II Connect Lift Control Box and Power Supply Once you have installed your lift in the cabinet, it is time to connect the lift control box and power supply. Parts Needed During This Step:...

  • Page 11: Installing Power Supply Cable

    Operating the Whisper Lift II The Whisper Lift II TV Lift can be controlled via the wired remote control or the wireless remote control. NOTE: Before operating the lift, the user must initialize the lift. Prior to running the initialization procedure, please be sure that the area above the lift is clear of any items that may obstruct the movement of the lift.

  • Page 12: Operating The Wireless Remote

    Setup and Operating the Whisper Lift II - cont Operating the Wireless Remote The remote control for your Touchstone Whisper Lift II is controlled via radio frequency. You do not need to point the remote control directly at the cabinet to operate the lift.

  • Page 13: Pairing Wireless Remote To Lift

    Whisper Lift II Setup and Operating the Whisper Lift II – cont Pairing Wireless Remote to Lift Tools Needed: - Paper Clip Instructions: 1. On the control box, there will be a hole to the right of the word KEY.

  • Page 14: Mounting And Installing The Tv

    Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV.
  • Page 15 Whisper Lift II Attaching TV Mounting Brackets to Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.

  • Page 16: Installing Tv On Lift

    Whisper Lift II Installing TV on Lift 1. Using the internal wired control, move the lift to the up position. The UP button is the button opposite of the cable side of the wired remote. DOWN 2. Hang TV on top crossbracket.

  • Page 17: Installing Locking Brackets On Whisper Lift Ii Tv Lift

    Whisper Lift II Installing Locking Brackets on Whisper Lift II TV Lift Tools Needed: - Philips-head screwdriver Instructions 1. Locate the bag with the Locking Bracket Kit included with your lift. In this bag, there will be 2 brackets and 2 philips-head screws.
  • Page 18 Whisper Lift II Installing Locking Brackets on Whisper Lift II TV Lift – cont. 3. Place the larger end of the locking bracket into the slots in the TV mounting bracket just below the bottom cross bracket on the lift, as shown in the diagram below.
  • Page 19 Whisper Lift II Setting Adjustable Roller Assembly Each Whisper Lift II comes with an adjustable roller assembly that allows you to set the maximum height of the lift. Tools Needed: - none Instructions: 1. Raise the lift to a height that is comfortable for you to work at.

  • Page 20: Optional Accessories

    Whisper Lift II Optional Accessories Add-On Component Shelf (optional) Tools Needed: - adjustable wrench - size 5 metric hex wrench Component Shelf Parts - component shelf - 2 shelf brackets - 4 spacers - 4 nuts and bolts 800.215.1990 www.touchstonehomeproducts.com...
  • Page 21 Whisper Lift II Assembly Instructions: 1. After unpacking the shelf, remove the 2 thumb screws from the bottom of the shelf. 800.215.1990 www.touchstonehomeproducts.com Version: 20191018...
  • Page 22 Whisper Lift II Assembling Component Shelf – cont 2. Line up shorter end of shelf bracket with hole in bottom of shelf. The hole in the bracket is elongated for adjustment of shelf depth. 3. Install both shelf brackets by attaching the 2 thumb screws removed from the shelf in step 1.
  • Page 23 Whisper Lift II Assembling Component Shelf – cont 4. Once both brackets are installed, use an adjustable wrench to tighten the screws so the brackets cannot move. 5. Once the shelf is assembled, attach the shelf to the lift. Line the vertical holes in the shelf brackets up with the vertical holes in the lift.
  • Page 24 Whisper Lift II Assembling Component Shelf – cont 6. Once the spacer is lined up, install the nut and bolt to tighten the spacer to the lift. Use a size 5 metric hex head wrench and adjustable plyers to tighten the nut and bolts.
  • Page 25 Whisper Lift II Assembling Component Shelf – cont 7. Install all 4 spacers to attach the shelf to the lift. Once installed, the shelf is ready for use. Shelf brackets installed. ***CAUTION: After attaching the component shelf to the lift, please check to ensure that the component shelf clears the front of the cabinet when lowered.

  • Page 26: Ir Repeater Kit (Optional)

    IR Repeater Kit (optional) The Touchstone Infrared Repeater allows the customer to install a small satellite TV/cable box in the bottom of the cabinet. The Touchstone Infrared Repeater allows the user to change the channel on their cable box without having direct line of sight to the component.

  • Page 27: Technical Support

    The warranty includes all parts, motorized components, electronics, and metal. If the Whisper Lift II proves to be defective in material or workmanship during the warranty period, Touchstone Home Products will replace the defective part free of charge. The replacement part will then be covered by the balance of the time remaining on the customer’s original warranty.
  • Page 28 Whisper Lift II 800.215.1990 www.touchstonehomeproducts.com Version: 20191018...
