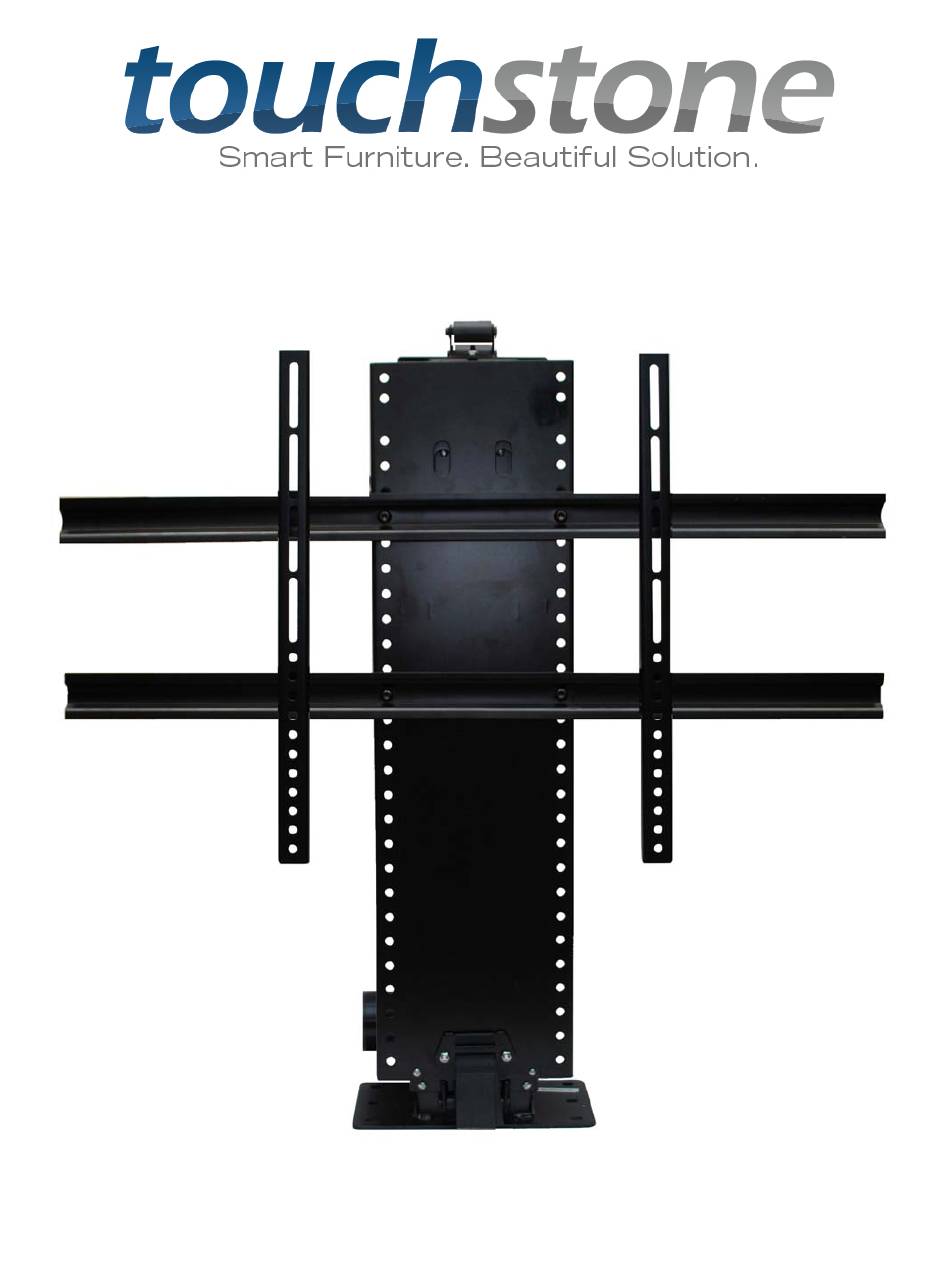

- Page 1 Whisper Lift II PLUS Upgrade Kit...
-
Page 2: Table Of Contents
Whisper Lift II PLUS Upgrade Kit Table of Contents About Your Touchstone Whisper Lift II PLUS TV Lift..................3 Lift Features ................................3 Safety.................................... 4 IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS..............4 Lift Components & TV Installation Hardware......................5 Components ................................5 Parts................................... -
Page 3: About Your Touchstone Whisper Lift Ii Plus Tv Lift
About Your Touchstone Whisper Lift II PLUS TV Lift Congratulations on the purchase of your Touchstone Whisper Lift II PLUS TV lift. Touchstone Home Products takes pride in the quality craftsmanship and smooth functionality of our TV lift mechanism. Please take a few minutes to learn about the features of your TV lift to ensure you get the optimum use and performance from your new purchase. -
Page 4: Safety
Safety Mounting your flat screen TV to the Touchstone Whisper Lift II PLUS TV lift is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to ensure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual. -
Page 5: Lift Components & Tv Installation Hardware
Whisper Lift II PLUS Upgrade Kit Lift Components & TV Installation Hardware Components Parts Include - Actuator Motor - Control Box - Wired Remote Control - Wireless Remote Control - RF-IR Conversion Kit Tools Required In order to convert the Whisper Lift II to a Whisper Lift II PLUS, you will need the following tools:... -
Page 6: Assembling Your Whisper Lift Ii Plus
Whisper Lift II PLUS Upgrade Kit Assembling Your Whisper Lift II PLUS Replacing Actuator Motor Tools Needed: - Pliers - Screwdriver - Hammer Parts Needed During This Step: - Whisper Lift TV Lift - Whisper Lift II PLUS Actuator Motor Instructions: 1. - Page 7 Whisper Lift II PLUS Upgrade Kit Replacing Actuator Motor – cont. 5. Remove the top cotter pin and locking pin that attaches to the actuator motor to the Whisper Lift II body. a. Remove top cotter pin b. Remove top locking pin 6.
- Page 8 Whisper Lift II PLUS Upgrade Kit Replacing Actuator Motor – cont. 7. Put the new actuator motor in place so that the motor portion of the actuator is facing to the right. 8. Put the bottom locking pin and cotter pin back in place.
- Page 9 Whisper Lift II PLUS Upgrade Kit Replacing Actuator Motor – cont. 9. Line up the hole in the top of the actuator motor with the mount on the back of the Whisper Lift II body and install the top locking pin and cotter pin.
- Page 10 Whisper Lift II PLUS Upgrade Kit Hookup Lift Control Box Views of the Control Box Tools Needed: none Parts Needed During This Step: - Control box - UP/DOWN Switch Handset - Power Cable Instructions: Installing Control Box 1. Place control box on floor of cabinet out of the way of the operation of the lift.
- Page 11 Whisper Lift II PLUS Upgrade Kit Hookup Lift Control Box (cont.) 3. Attach power cable to control box. 4. Remove backing from manual switch and attach Manual Switch to cabinet wall. To Control Lift UP – raise lift DOWN- lower lift www.touchstonehomeproducts.com...
-
Page 12: Operating The Whisper Lift Ii Plus
Operating the Whisper Lift II PLUS Operating the Wireless Remote The remote control for your Touchstone Whisper Lift II PLUS is controlled via radio frequency. You do not need to point the remote control directly at the cabinet to operate the lift. -
Page 13: Resetting Lift Mechanism When Lift Loses Power
Whisper Lift II PLUS Upgrade Kit Resetting Lift Mechanism When Lift Loses Power When the control box loses power, whether through a power outage or unplugging the lift from the wall outlet, the lift will need to be reset prior to operation. To reset the lift, do the following: 1. -
Page 14: Connecting Components
Whisper Lift II PLUS. Technical Support Should you have any problems with your Touchstone Home Products Whisper Lift II PLUS, our technical support staff is here to help. Our technical support reps are available for phone assistance at 1-800-215-1990Monday to Friday, from 8:00am to 5:00pm EST.
