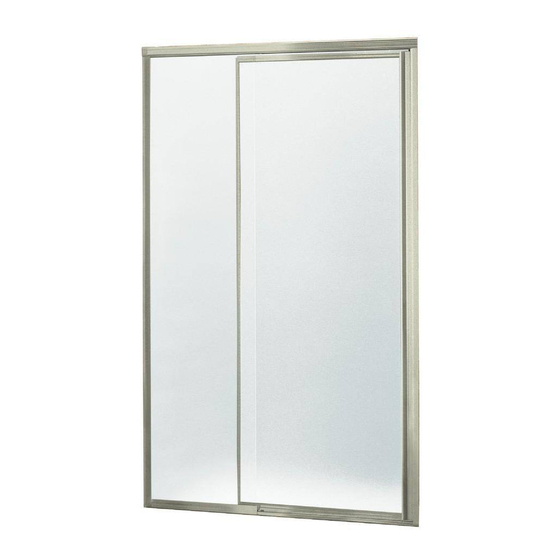

Sterling Plumbing VISTA PIVOT II 1505D-48 Specifications

Features
• Heavy-duty, anodized aluminum-framed sliding glass
doors
• Full length handle for easy operation
• Aluminum components extruded from alloy 6063-T5
• Tempered glass ensures maximum safety and
durability
• Threshold directs water back into the shower and
minimizes soap or lint build up
• Nylon pivot bushings provide silent operation
• Installs left- or right-handed
• Adjustable wall jamb allows for out-of-plumb
conditions up to 1" (2.5 cm) per side
• A width adjustment of 6" (15.2 cm) per model
reduces inventory requirements
• Full length magnet provides secure door closure
• Stainless steel hardware prevents rusting or corrosion
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ANSI Z97.1 (tempered glass)
• CPSC 16CFR 1201-1 CAT II
Specified Model
Model Application
1505D-42*-G10 Shower
1505D-42*-G26 Shower
1505D-42*-G51 Shower
1505D-42*-G64 Shower
1505D-42*-G65 Shower
1505D-42*-G66 Shower
1505D-48* Shower
1505D-48*-G06 Shower
1505D-48*-G10 Shower
1505D-48*-G26 Shower
1505D-48*-G51 Shower
1505D-48*-G52 Shower
1505D-48*-G64 Shower
1505D-48*-G65 Shower
1505D-48*-G66 Shower
SterlingPlumbing.com
Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you've chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.
Page 1 of 2
B
1060253-4-
Glass Texture Pattern
Pebbled None
Smooth Watertide
TM
Moraine None
TM
Smooth Brownstone
Smooth Wildgrass
Smooth Kaleidica
Smooth Clear
Rain None
Pebbled None
Smooth Watertide
TM
Moraine None
TM
Naturalist None
TM
Smooth Brownstone
Smooth Tangle
Smooth Kaleidica
VISTA PIVOT
DESIGNER PIVOT SHOWER DOORS
Colors/Finishes
•
S: Silver
•
PB: Vibrant Polished Brass
®
•
V: Matte Silver
•
N: Nickel
TM
1505D-42
ALSO 1505D-48
Frame Colors/Finishes*
❑ N
❑ S
❑ S ❑ N
❑ S ❑ N
❑ S ❑ N
❑ S ❑ N
❑ S ❑ PB
❑ N
❑ N
❑ S
❑ S ❑ N
❑ S
❑ S ❑ N
❑ S ❑ N
❑ S ❑ N
II
