Sterling Plumbing Proline Custom Doors N5 Dimensions

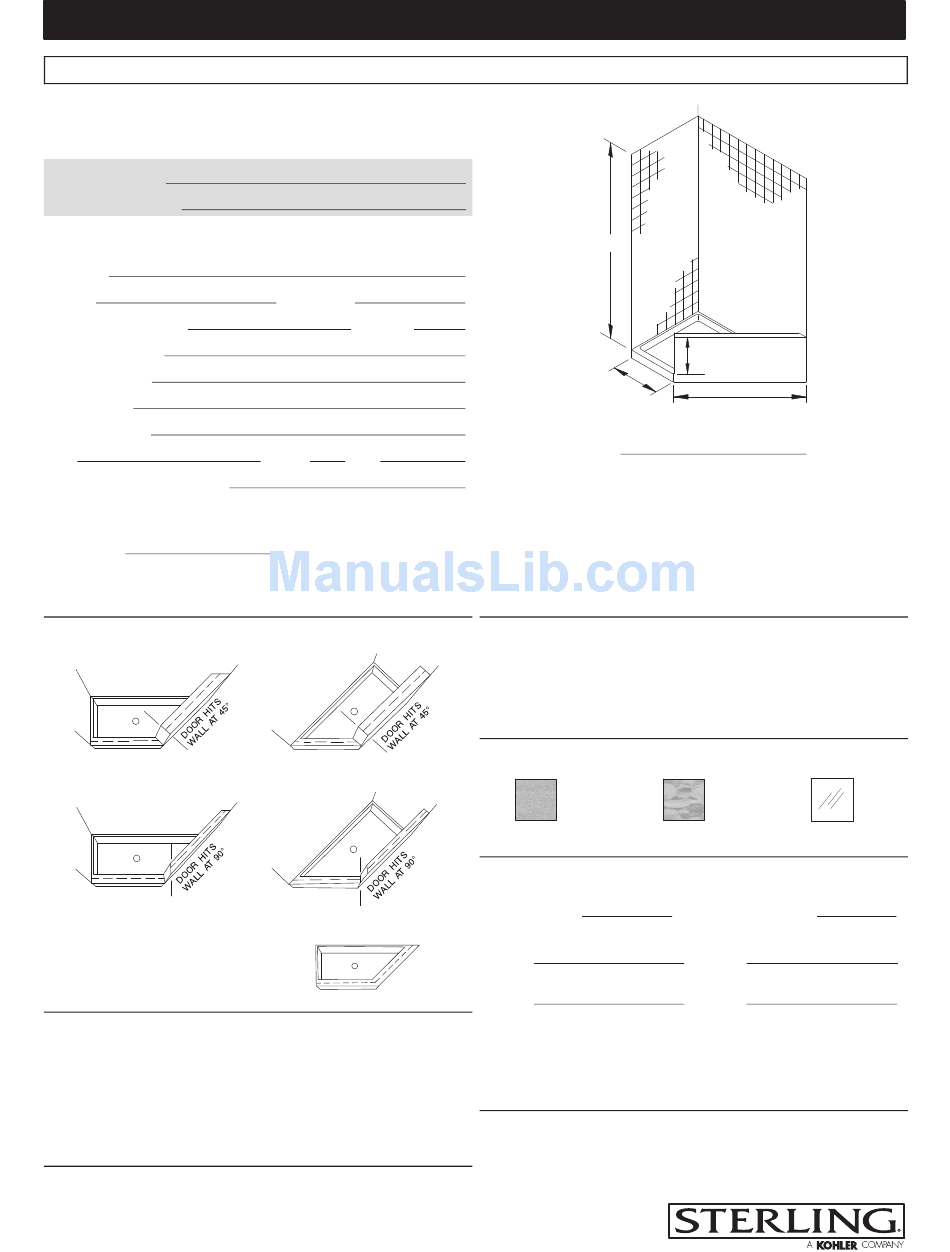

SAMPLE MEASURING SHEET
PROLINE CUSTOM DOORS – 2/3 Neo-Angle Shower Doors

Please fill in your name, phone number, and Steps #1 through #5.
Take this worksheet to your local home improvement center or
Sterling shower door supplier to process your order.
Customer Name
Customer Phone #
For Store Use:
Model #
P.O. #
Order Submitted By
Company Name
Store Phone #
Store Fax #
Store Address
City
Number of Units Required
List Price $
Note: Glass panels are not the exact size of the opening. Allow for framing.
Step #1. Check desired layout and knee wall position.
j
90_
DOOR
j
90_
DOOR
Check knee wall position.
j j
B C
Step #2. Check door style.
j
Framed
(4800 Series)
j
Check here if you
require a steam unit
(Framed models only –
$150.00 upcharge.)
For questions on service parts, how to measure or choose a door,
please contact your Customer Service Representative.
P.O. Date
Store #
State Zip
j
45_
DOOR
j
45_
DOOR
C
B
j
Frameless
(4900 Series)
For Frameless door style, only
door panel(s) is/are frameless.
H
B
Note: All dimensions taken at
centerline of ledge/threshold.
Step #3. Check frame finish.
j
Silver
j
Matte Silver
j
Nickel (Frameless only)
Step #4. Check glass type desired.
j j
Pebbled Hammered
Step #5. Measure installation area and fill in centerline dimensions.
If inline panel is required with door section, designate:
door width
(door panel = 36 max.; side panel(s) = 6 min.).
DIM B
Panel
DIM C
Panel
Door: max. 36 width
Fixed Panel: max. 48 width
Sum of door and fixed panel width = 64 or less;
Greater than 64 width, up to maximum 80 = $66.00 upcharge
Maximum 84 height
STYLE N5
R
C
j
Clear
and inline panel width
DIM R
Kneewall Height (from threshold up)
DIM H
Height (from threshold up)
