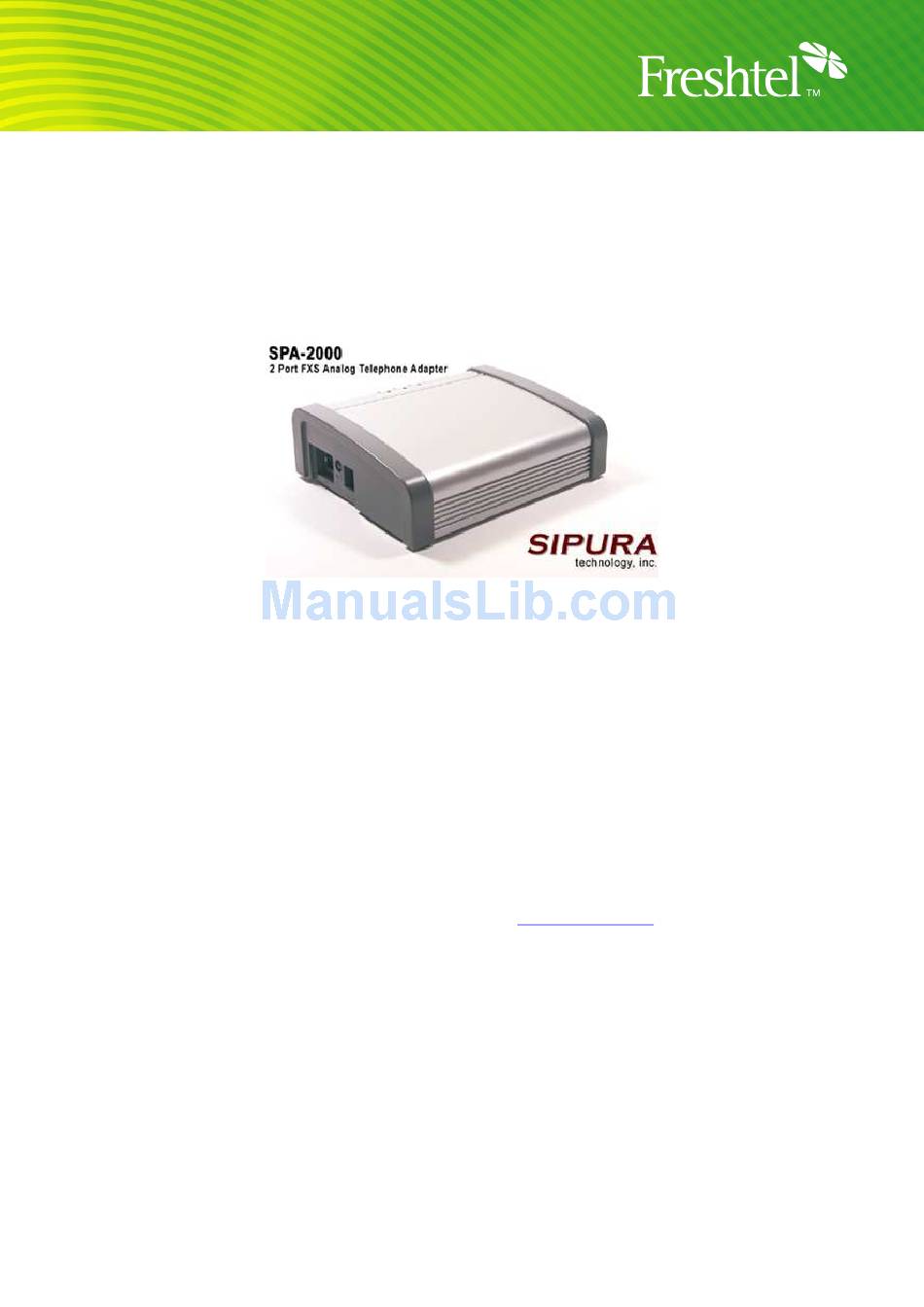

Sipura Technology Sipura SPA-2000 Manual Configuration Instructions

Sipura SPA-2000
Manual Configuration Instructions
Only settings that deviate from factory defaults are included in this document. If your ATA
was previously connected to a different service, you will need to use the screenshots to verify
that all settings are correct; alternatively, you may reset the ATA to factory defaults
(recommended), as described in section 4.

1. Plug in the ATA

Connect a telephone handset, network, and power to the ATA, and wait briefly while it
discovers its IP address via DHCP. For more information on connecting your ATA, or to set a
Static IP Address manually, please consult your User Manual.
2. Determine the ATA's IP Address
To find out the ATA's IP Address, dial "****", then "110#". Note down the IP Address spoken
out and enter it into the address bar of a Web browser.
Example: If the address is "10.34.238.6", enter this as "http://10.24.238.6/".
If the address read out is "0.0.0.0", the ATA was unsuccessful in acquiring an IP address via
DHCP -- contact your network administrator before proceeding.

3. Reset the ATA to Factory Defaults (optional).

Note: This will clear all custom settings from the ATA; if you wish to retain these for later
reference, please make a note of them (for example, by printing the configuration pages, or
saving a copy of them to disk).
To perform the reset, dial "****" on the attached telephone handset, followed by "73738#",
then "1" to confirm; then hang up. Once the phone is hung up, the ATA will restart with its
settings reset to factory defaults.
