OSD Audio P8 Owner's Manual

OSD
AUDIO
P - 8

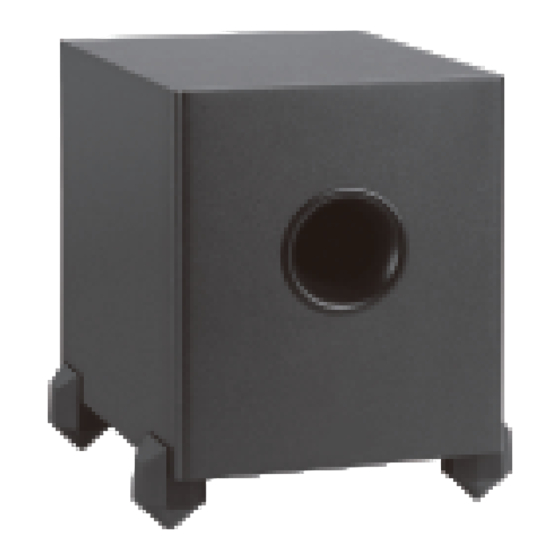

Powered Stand Alone Subwoofer
Speaker Type:
8" High Performance Powered Subwoofer
Driver:
8" Reinforced
Amplifier Power Output:
100 Watts (RMS)
Frequency Response:
50Hz - 250 Hz
Lowpass Crossover:
Adjustable from 50Hz - 250 Hz
Functions:
Power (On, Off)
Inputs:
Hi Level (Speaker), Line (RCA)
Dimensions:
13 3/4" H x 10" W x 13 3/16" D
Unit Weight:
16.5 lbs.
Warranty:
2 Years
Congratulations
on your purchase of a OSD powered subwoofer system. Your new subwoofer is one of the most exciting home entertainment electronic products available,
adding impact and realism to recorded music and the wide variety of movies. Once set-up and properly adjusted, it should give you movie theatre experience
at the comfort of your home.

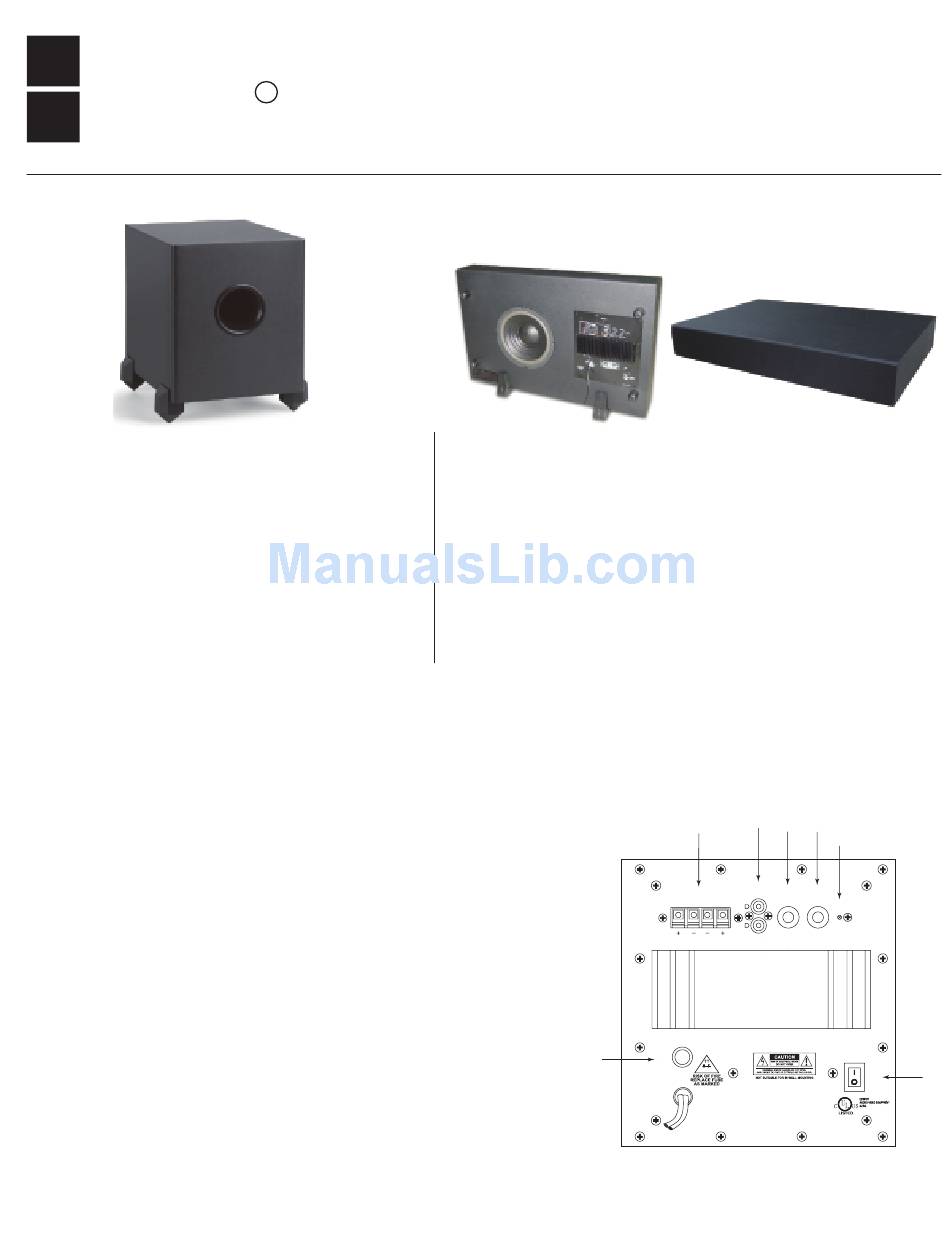

Explanation of Features and Controls
see (figure A)
1) Power Switch - This two position switch controls the power status of the subwoofer.
Off - Turns the unit off.
On - Turns the unit on regardless of whether a signal is present or not.
2) Subwoofer crossover - This rotary control adjusts a variable low pass filter to set the upper
frequency at which the output of the subwoofer begins to roll-off. Continuously variable
from 50Hz, it matches the upper frequency characteristics of the subwoofer to the low
frequency response of the main stereo speakers.
3) Line level input - These RCA phono jacks accept a line level full range signal from the
pre-amplifier output of a receiver or pre-amplifier. This full range signal processed and
amplified to power the subwoofer.
4) Speaker level input - These spring loaded terminals for speaker wire accept a stereo,
speaker level, full range signal from a receiver or power amplifier. This signal is processed
and amplified to power the subwoofer.
5) Fuse - For continued protection replace fuse with same type and size listed.
6) Level control - This rotary control adjusts the level of the subwoofer and is used to balance
its volume with that of the main stereo speakers.
7) Status LED - This light emitting diode shows the status of the subwoofer electronics. "Red"
indicates that the amplifier is plugged in and the power switch is on.
R
Owner's Manual
Vertical Placement
SS - 8
Low Profile Subwoofer
Speaker Type: 8" High Performance Low Profile Powered Subwoofer
Driver: 8" Reinforced
100 Watts (RMS)
Amplifier Power Output:
50Hz - 250 Hz
Frequency Response:
Lowpass Crossover: Adjustable from 50Hz - 250 Hz
Functions: Power (On, Off)
Optional Vertical Stand: Included
Hi Level (Speaker), Line (RCA)
Inputs:
4" H x 23 3/4" W x 12 1/4" D
Dimensions:
Unit Weight: 20 lbs.
Warranty: 2 Years
5
P8/SS8
Horizontal Placement
3
4 6
2
7
GAIN FREQ
FROM AMPLIFIER
L
R
POWER
L Or
MIN MAX
50Hz 150Hz
HI LEVEL IN LINE IN
FUSE 1A/250V
ON
1A 250V
OFF
120 VAC
100 WATTS
60 HZ
Made In China
Figure A
1
