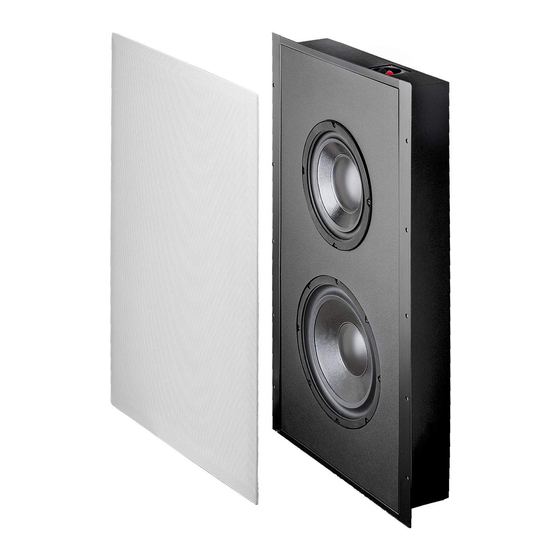

OSD Audio SL800D Install Manual

Preparation:

Tools For Installation

- Pencil - Wire Cutter
- Drill - Phillips Screwdriver
- Tape Measure - Utility Knife

Installation:

Cut Out
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.

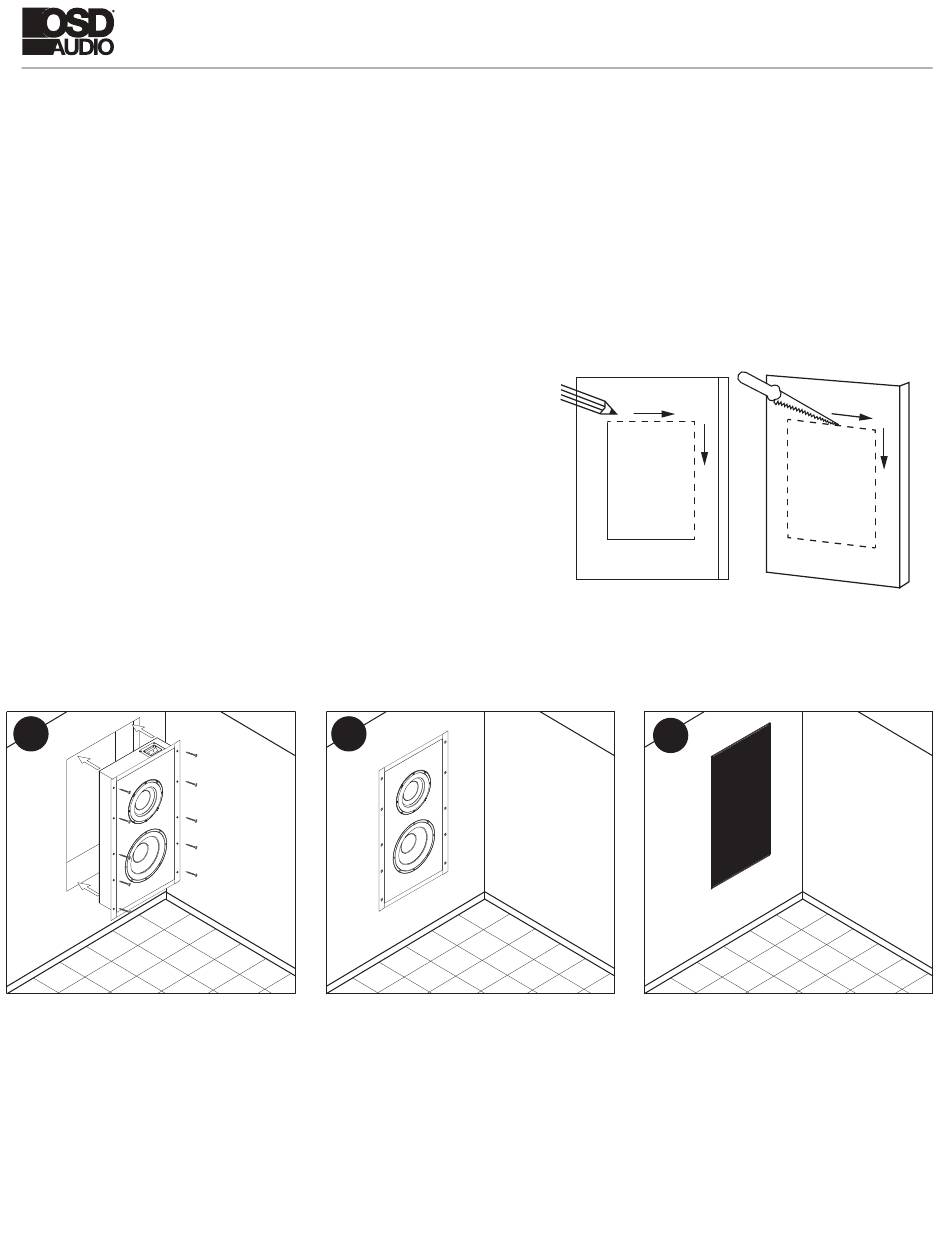

Using the Cut Out dimensions measure and trace a template on the
wall in the desired location. Cut along the traced line using a drywall
saw or rotary drill. Use a piece of sandpaper to sand down the cut out
edge for a smoother contour. (See Diagram 1.)
1
Cut and prepare a hole to install
the SL800D into a stud bay where
it can be securely mount to both
wall studs.
SL800D SUBWOOFER INSTALL GUIDE
- Safety Eye Wear
- Gloves
- Sandpaper
2
Once in place the SL800D should
be tested before securely mount-
ing and moving onto step 3.
Speaker Wire Guide
18AWG minimum - for distances up to ...................... 10 ft
16AWG - from ............................................... 10 to 50 ft
14AWG - from ............................................. 50 to 100 ft
Diagram 1
3
Final step, install the magnetic
grille system by simply laying it
into place.
