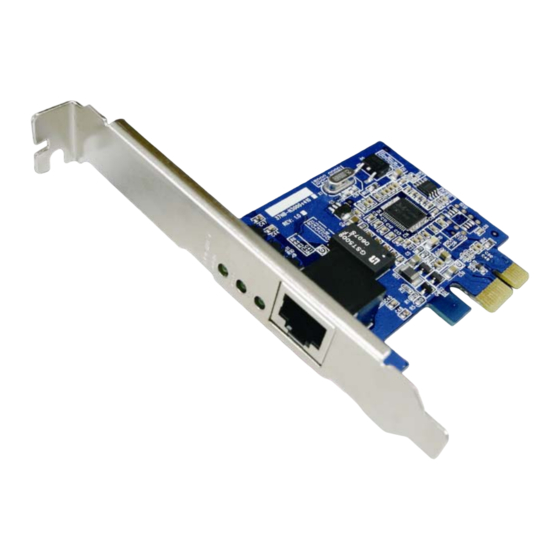

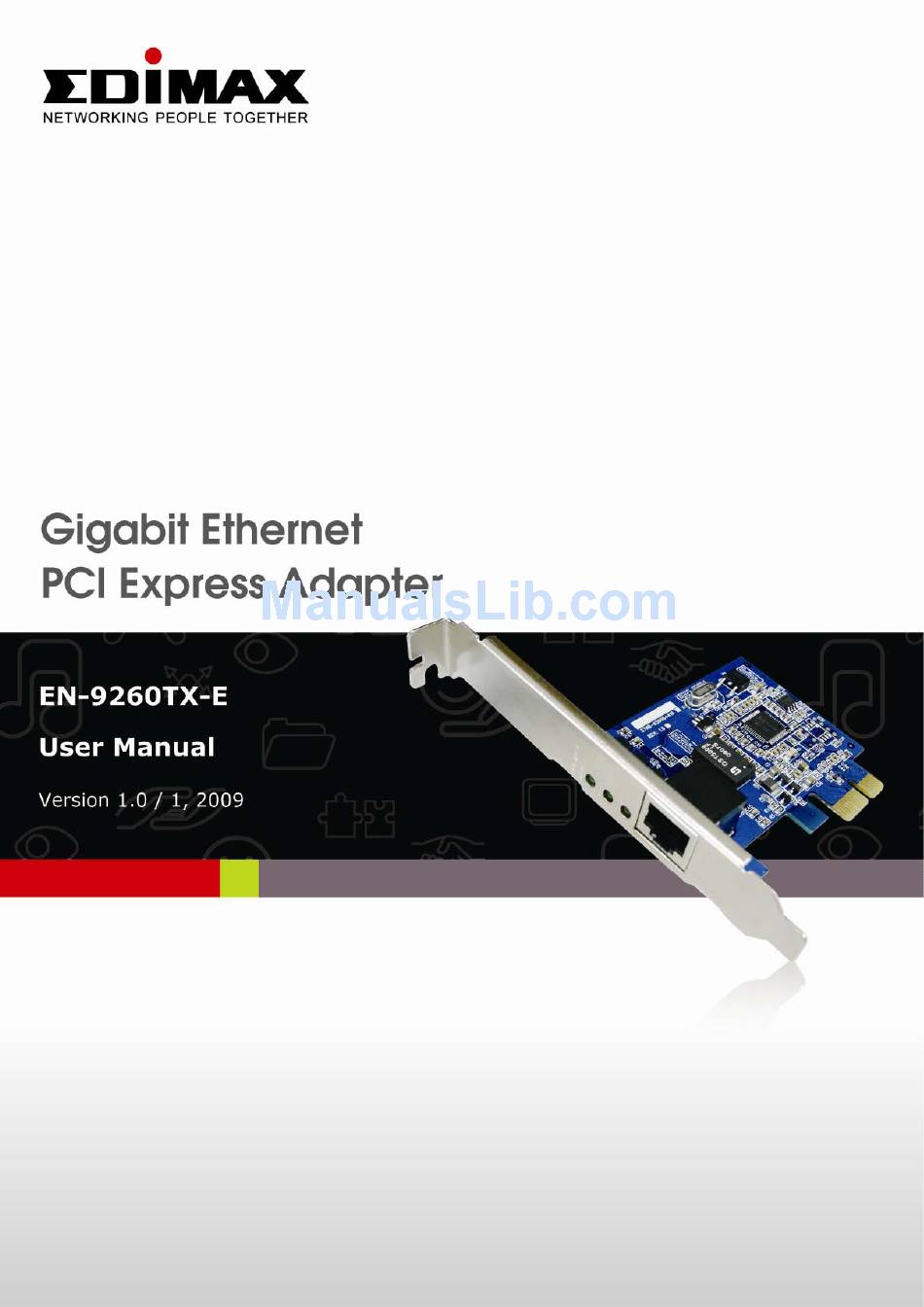

Edimax EN-9260TX-E User Manual

Gigabit ethernet pci express adapter
Hide thumbs Also See for EN-9260TX-E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN-9260TX-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EN-9260TX-E

Summary of Contents for Edimax EN-9260TX-E

  • Page 2 Member States relating to electromagnetic compatibility. Edimax has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check for the latest information at www.edimax.com. No part of this document can be copied or reproduced in any form without written consent from the company.

  • Page 3: Table Of Contents

    Table of Contents 1. UNPACKING INFORMATION ........ 3 2. OVERVIEW ............3 2.1 I ..........3 NTRODUCTION 2.2 K ..........4 EATURES 2.3 LED I ..........4 NDICATORS 3. INSTALLING THE PCI EXPRESS GIGABIT ETHERNET ADAPTER .......... 3 3.1 S ........

  • Page 4: Unpacking Information

    1. Unpacking Information Thank you for purchasing the EN-9260TX-E PCI Express Gigabit Ethernet Adapter. Before you start, please verify that your package contains the following items: 1. One EN-9260TX-E PCI Express Gigabit Ethernet Adapter. 2. One Driver/ Manual CD-ROM 2. Overview 2.1 Introduction...

  • Page 5: Key Features

    2.2 Key Features ‧ Compliant with PCI Express 1.0a - x1 PCI Express standard ‧ Compliant with CSMA/CD protocol ‧ Supports 10/100/1000 Mbps and Full/Half-Duplex auto negotiation ‧ Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab ‧ Supports Full Duplex flow control (IEEE 802.3x) ‧...

  • Page 6: System Requirements

    3. Installing the PCI Express Gigabit Ethernet Adapter 3.1 System Requirements One available PCI Express slot Microsoft Windows 98SE/2000/XP/MAC 10.4x/Linux based computer. A CD-ROM Drive 3.2 Hardware Installation Caution: Before installing this adapter, please touch the metal case of your computer to discharge any static electricity from your body.

  • Page 7: Driver Installation

    Please refer to the following for instructions. Turn your computer on after plugging the EN-9260TX-E to a PCI-E slot. When the “Found New Hardware Wizard” pops up, click the “Cancel” button to close the window.
  • Page 8 On the following screens, choose Setup Driver and select your operating system.
  • Page 9 When the Welcome window pops up. Click the “Next” button to start driver installation.
  • Page 10 On the following screen, click Install. Please wait while driver is being installed.
  • Page 11 Click the “Finish” button to complete driver installation. Note: Driver installation details for MAC OS and Linux are in their respective folders. Please use your File Manager to locate and browse the CD contents for instructions.

  • Page 12: Product Specifications

    4. Product Specifications Standards IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX IEEE802.3ab, 1000BASE-T IEEE802.3x Flow control Interface PCI Express serial link x 1 10/100/1000Mbps Gigabit Ethernet Port x 1 Cable Connections UTP Category 3,4,5,5e Network Data Rates 1000Mbps, 100Mbps, 10Mbps LED Indicators 10M (Link/ACT) x 1 100M (Link/ACT) x 1 1000M (Link/ACT) x 1 Operating...
