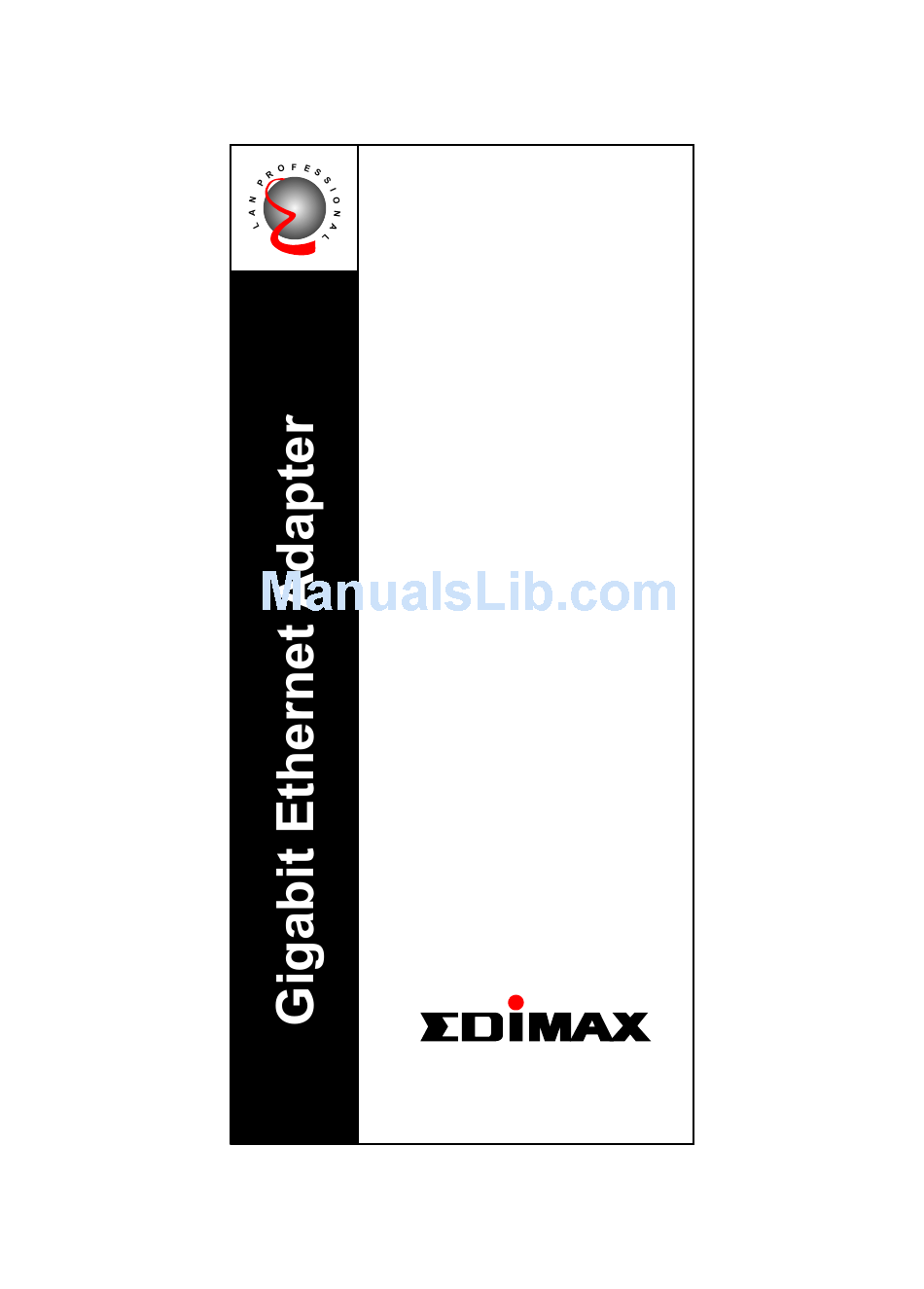

10/100/1000Mbps PCI
Gigabit Ethernet Adapter
EN-9230TX-64/32
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the EN-9230TX-64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EN-9230TX-64

Summary of Contents for Edimax EN-9230TX-64

  • Page 1 10/100/1000Mbps PCI Gigabit Ethernet Adapter EN-9230TX-64/32 User’s Manual...

  • Page 2: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits of a Class B computing devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful...
  • Page 3 Introduction Thanks you for purchasing our Gigabit Ethernet Adapter. This guide is to provide the installation and usage of this adapter for network installers and users. The Gigabit network adapter complies to 64-/32-bit (EN-9230TX-32 supports 32-bit only) PCI specification and supports half- /full- duplex feature which can double network speed.
  • Page 4 Features & Specifications (1) Features & Benefits Supports 64-/32-bit (EN-9230TX-32 supports 32-bit only), 66/33MHz PCI Local Bus Master Version 2.2/2.1. Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x. Supports IEEE 802.3x full duplex flow control. Supports IEEE 802.1Q VLAN tagging. Supports PCI 2.1 Wake On LAN function.

  • Page 5: Technical Specification

    100Mbps Link/Activity 1000Mbps Link/Activity Temperature : 32-131℉ (0-55℃) Humidity : 10% to 95% (Non-condensing) Certification : FCC Class B, CE Mark, C-tick Dimension : 163 x 64 mm (EN-9230TX-64) 144 x 63 mm (EN-9230TX-32) Weight : 81g (EN-9230TX-64) 76g (EN-9230TX-32)

  • Page 6: Driver Installation

    Installation (1) Hardware Installation To insert the network adapter into your PC, follow the steps as below : 1. Turn off the computer and remove its cover. 2. Insert the adapter into a PCI slot. 3. Secure this adapter to the rear of the computer chassis and put back the computer cover.
  • Page 7 (3) Hardware Installation for Wake On LAN Please follow the next procedure to install the WOL adapter to PCI 2.1 motherboard. 1. Unpack the 3-pin auxiliary power cable. 2. Insert the 3-pin auxiliary power cable into the connector on the adapter. 3.
  • Page 8 Trouble-shooting If you experience any problems with the adapter, please make sure the appropriate driver is loaded, the proper cable is connected to the adapter port and the hub/switch complies with the adapter specification, such as 10Mbps 10BaseT, 100Mbps 100BaseTX and 1000Mbps 1000BaseT, then check the LED.

  • Page 9: Wake On Lan

    ( Wake On LAN ) The PC can not boot up after installing the adapter. 1. Remove the 3-pin cable from the PC connector. 2. Boot up the PC, run setup program to enable ACPI or Wake On LAN. 3. Turn off the PC and reconnect the 3-pin cable to the 4.
  • Page 10 TRADEMARKS Copyright 2002/2003 by the manufacturer of this product. No part of this manual may be reproduced, transcribed, stored in a retrieval system, translated into any language or computer language without the prior written consent of the manufacturer. All brand and product names are trademarks and/or registered trademarks of their respective companies.

This manual is also suitable for:

En-9230tx-32
