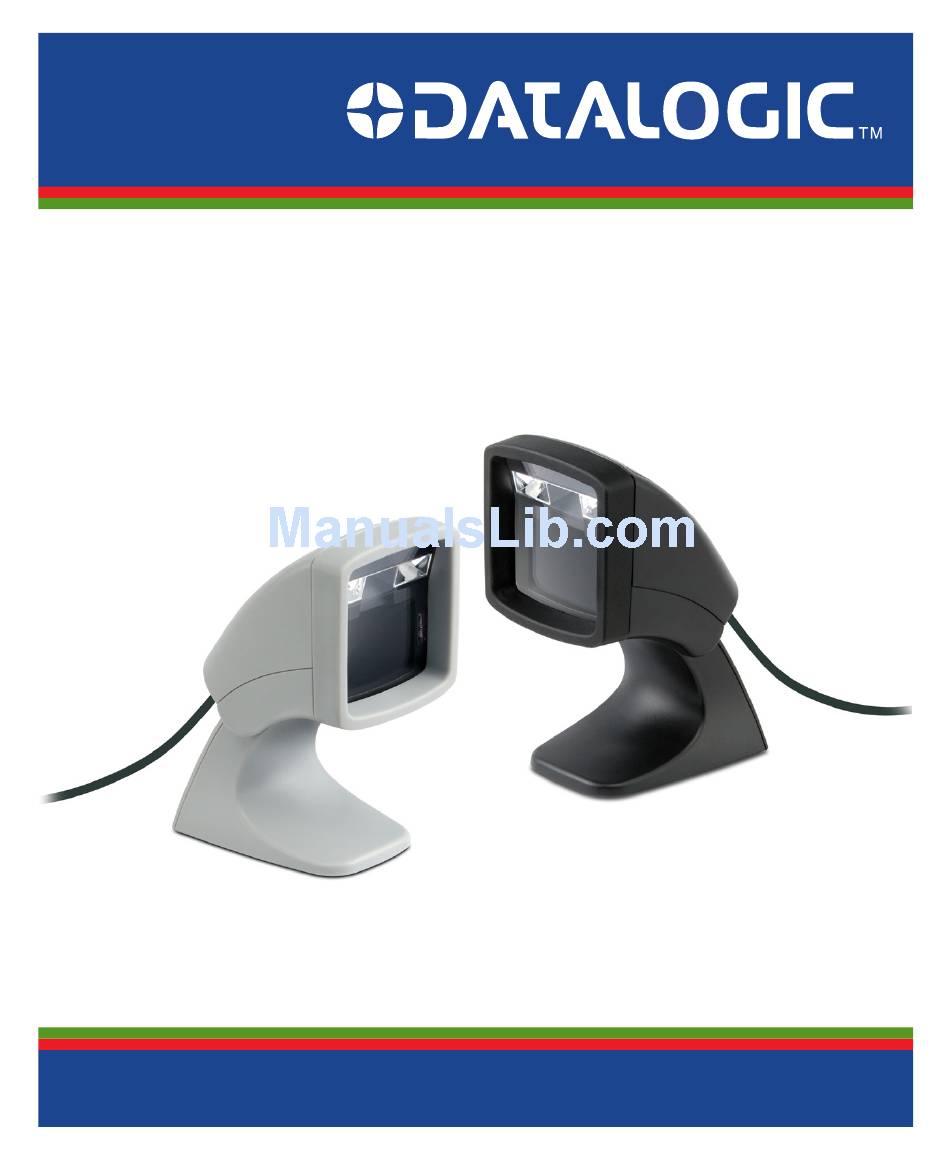

  • Page 1 Magellan 800i On Counter Presentation Omnidirectional Bar Code Reader Quick Reference Guide...
  • Page 2 Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.data- logic.com) or provided on appropriate media.
  • Page 3 Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
  • Page 4 Software is protected by intellectual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of Datalogic's or its third party licensors' copyrights, patents, trademarks, service marks, trade secrets, or other intellectual prop- erty rights and End User shall have no right to commence any legal actions to obtain such rights.
  • Page 5 Inc., Legal Department, 959 Terry Street, Eugene, OR 97402. In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify the Datalogic Product so that it...
  • Page 6 Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S.

  • Page 7: Quick Reference

    Use the Quick Reference Guide (QRG) to find easy connection, scanning and troubleshooting instructions. For more details, including program- ming information, reference the Product Reference Guide (PRG), which is available for download, viewing and printing from the Datalogic website listed on the back cover of this manual. Installation Route the interface cable from the terminal or host.

  • Page 8: Mounting The Scanner (Optional)

    The Magellan 800i utilizes illumix™ intelligent illumination technology to optimize light levels for a variety of bar code scanner functions includ- ing automatic reading of bar codes from printed surfaces, mobile devices and image capture in variable contrast environments. Mounting the Scanner (Optional)

  • Page 9: Power Supply

    Power Supply Models require an external Listed power supply marked Limited Power Source or LPS or class 2. For the safety certification to be valid, power sup- ply must meet UL 60950-1/CAN/CSA-C22.2 No. 60950-1 or UL 1310/ CAN/CSA-C22.2 No. 223 for North America and IEC/EN 60950-1 for rest of world.

  • Page 10: Cell Phone Mode

    Cell Phone Mode Cell phone mode is when the scanner is enabled to read barcodes on a cell phone display. To enable this feature, scan the START/END bar code, then scan the ENABLE AUTO CELL PHONE MODE bar code, then scan the START/END bar code a second time to exit Programming Mode.

  • Page 11: Troubleshooting

    POS system manual and/or the Product Reference Guide. If the scanner still does not function properly, contact your local supplier or Datalogic Customer Support Services. 1. Reading of the various bar code symbologies can be independently enabled or disabled in the scanner.

  • Page 12: Compliance Statement

    Compliance Statement This device complies with Part 15 rules. Operation is subject to the follow- ing conditions: This device may not cause harmful interference; and This device must accept any interference received, including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 13: Bottom Plate

    FCC Caution Statement The user is cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES -003. Cet appareil numérique de la classe B est confrome à la norme NMB-003 du Canada.
  • Page 14 Gerät declare que el Magellan 800i Bar Code Scanner e tutti i suoi modelli and all its models et tous ses modèles und seine Modelle y todos sus modelos...
  • Page 15 Figure 1. Screw Hole Template Screw head must clear this dimension Center of Screw Center of Screw...
  • Page 16 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Iberia Datalogic Scanning India Datalogic Scanning SAS Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom Datalogic Scanning SpA Datalogic Scanning LTD Telephone: [39] (0) 39/62903.1...
