Summary of Contents for Koss MS2010

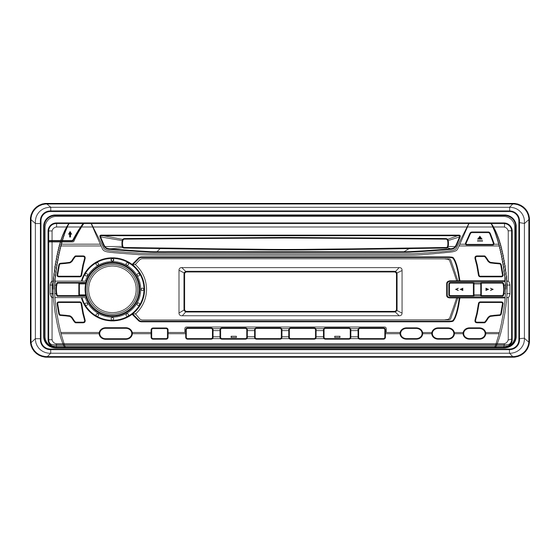

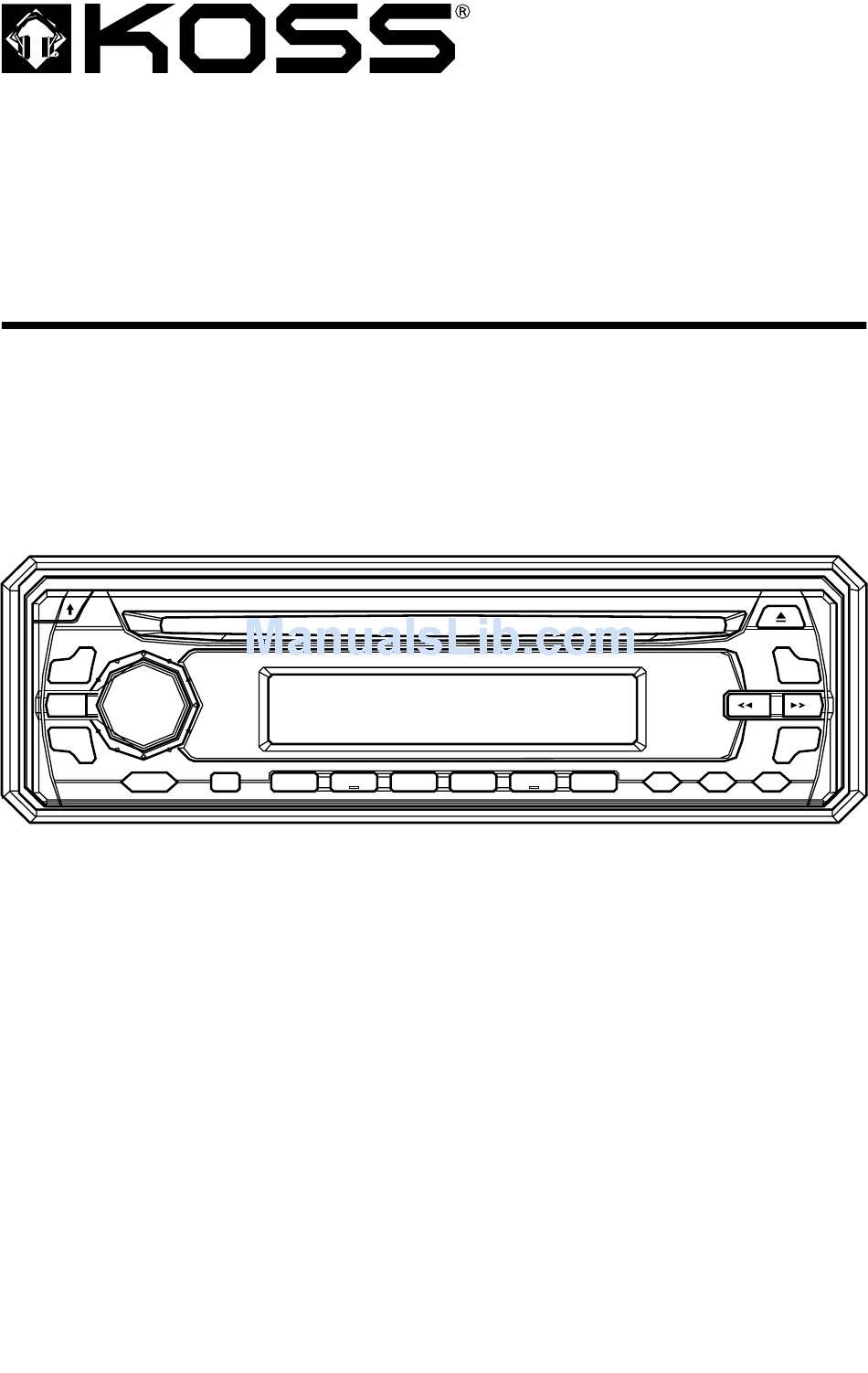

- Page 1 MS2010 OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Electronic Shockproof (ESP) Function • Remote Control...
-
Page 2: Table Of Contents
CONTENTS Installation ...........3 Playing all tracks in random....12 Take out screw before installation..3 Ejecting a disc ........12 Disc notes ...........12 DIN Rear-Mount (Method A) ....3 Remote Control Handset....13 DIN Front-Mount (Method B) ....4 Specification........14 Installing the unit ........4 Trouble shooting .......15 Removing the unit .........5 Using the detachable front panel ..6 Wiring Connection ......7... -
Page 3: Installation
INSTALLATION Notes: TAKE OUT SCREWS BEFORE INSTALLATION • Choose the mounting location where Before installing the unit, please remove the unit will not interfere with the the two screws as indicated. normal driving function of the driver. Take out screws before installation •... -
Page 4: Din Front-Mount (Method B)
INSTALLATION To fasten the unit to the factory radio Sleeve mounting brackets: L Key Outer Trim Ring 1. Use a screwdriver to loosen the hook's Front Panel screws on the front left and right sides of the unit and remove the hooks. 2. -
Page 5: Removing The Unit
INSTALLATION also helps ensure proper electrical grounding of the unit. Spring Washer Hex Nut Metal Strap Mounting Bolt Plain Washer Tapping Screw 10. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel. -
Page 6: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL To Install the Front Panel To Detach the Front Panel 1. Carefully open the front panel’s 1. Press the open button (OPEN) and the protective case. Insert the right of the front panel will release on the left side. front panel into the radio body. -
Page 7: Wiring Connection
WIRING CONNECTION MAIN UNIT ANTENNA CONNECTOR 0.5A IGNITION SWITCH (ACC+) MEMORY YELLOW (GREY) BACK-UP (B+) Rch RED RCA CABLE BLACK GROUND (B–) Lch WHITE BLUE POWER ANTENNA GREY WHITE FRONT Lch FRONT Rch SPEAKER SPEAKER GREY/BLACK WHITE/BLACK GREEN VIOLET REAR Lch REAR Rch SPEAKER SPEAKER... -
Page 8: Operation
OPERATION LOCATION OF CONTROLS FRONT VIEW MON Button 15. Display Button (DSP) LOC Button 16. TUNE/TRACK Search DOWN Button MUT Button 17. TUNE/TRACK Search UP Button Eject ( 18. Auto Memory Store/Preset Scan Disc Slot Button (AMS) MOD Button 19. EQ Button Open Button 20. - Page 9 OPERATION LOCATION OF CONTROLS BACK VIEW...
-
Page 10: Switching On/Off The Unit
OPERATION SWITCHING THE UNIT ON/OFF MUTE Switch on the unit by pressing any button Press MUT button (3) to mute the volume (except OPEN button (7) and button instantly. If any button is pressed while (4)). When system is on, press POWER in the mute mode, the mute function is button (9) to turn off the unit. -
Page 11: Selecting The Frequency Band
OPERATION • SELECTING THE FREQUENCY AUTO or MANUAL tuning mode to BAND select the station you wish to enter into In radio mode, press BND/LOU memory and then press and hold the button (13) to select the desired band. M1 memory button (14) until the unit The reception band will change in the beeps to indicate the station has been following order:... -
Page 12: Playing All Tracks In Random
OPERATION • PLAYING ALL TRACKS IN RANDOM ORDER DISC NOTES: Press SHF button (23) to play all A. Notes on discs: tracks on CD in random order. Press 1. Attempting to use nonstandard again to cancel the function. shape discs (e.g. square, start, heart) may damage the unit. -
Page 13: Remote Control Handset
REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL = Power ON/OFF Button = Display Button = Select Button (Character Shift Right) = Volume Up Button = Volume Down Button = Band Select Button = Mode Button TUNE/SEEK = Tune/Seek Down Button TUNE/SEEK = Tune/Seek Up Button 10. -
Page 14: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 160 (D) x 50 (H) Tone Controls : ± 10 dB - Bass (at 100 Hz) : ± 10 dB - Treble (at 10 KHz) Maximum Output Power : 4 x 15 Watts Current Drain... -
Page 15: Trouble Shooting
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition switch is If the power supply is not on. - Page 16 Error Code showing on display Cause Remedy ERROR 1 Mechanism problem Press “RESET” button. ERROR 2 Playback errors: Dirty disc Clean the disc and load it as instruction manual mentioned. Disc is loaded up side down Load disc with label facing up. Disc is scratched Try another disc.
