Summary of Contents for Koss MS-503

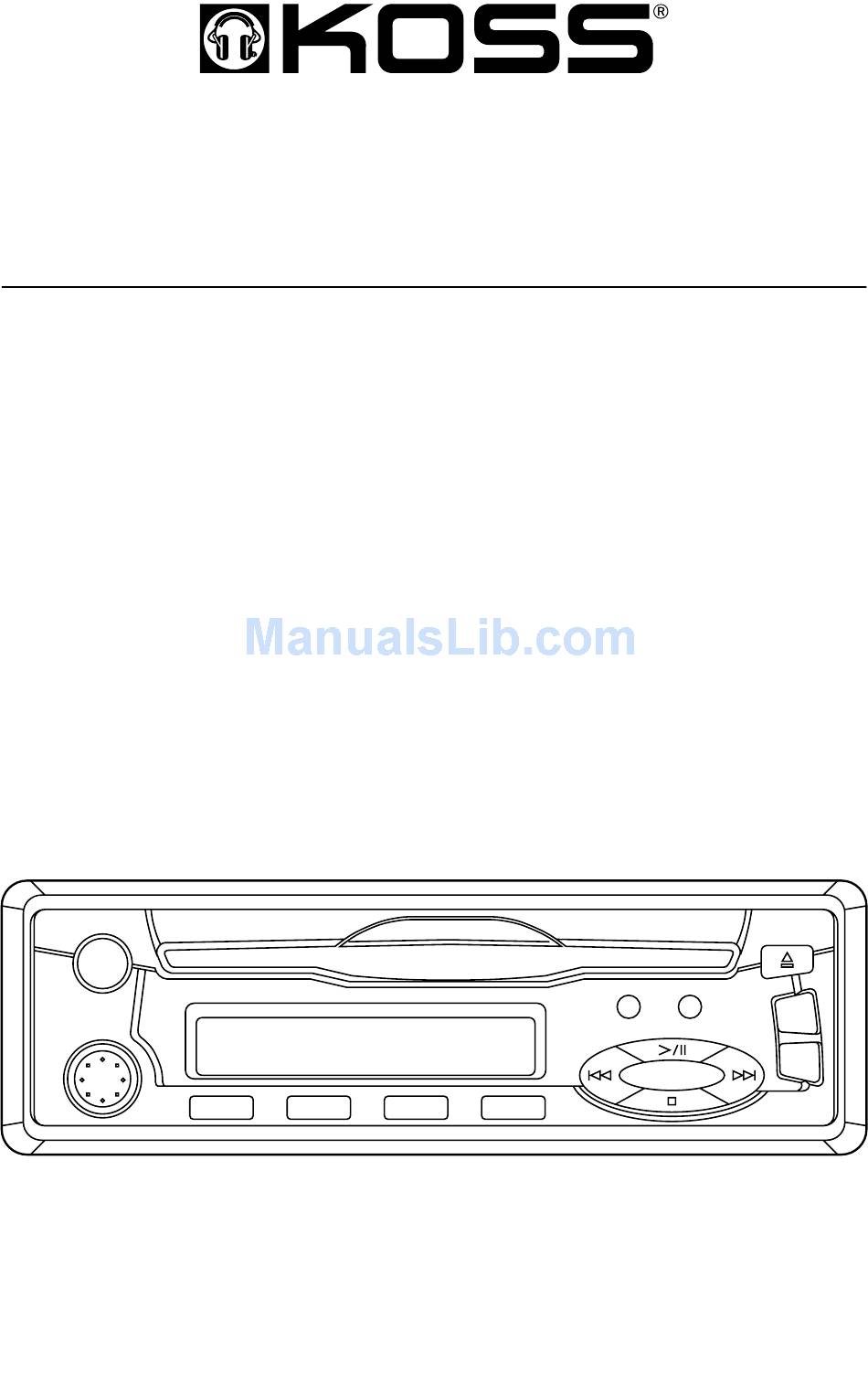

- Page 1 OWNER’S MANUAL PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL MS-503...
-
Page 2: Installation
INSTALLATION Here is the installation diagram. DASH BOARD METAL MOUNTING STRAP HEX NUT SPRING WASHER TAPPING SCREW PLAIN WASHER HEX BOLT CONSOLE MOUNTING HOUSING Precautions Fire Wall 1. Choose the mounting location where the unit will not interfere with the normal driving functions of the driver. -
Page 3: Remove The Unit From The Dash Board
REMOVE THE UNIT FROM THE DASH BOARD 1. Insert the supplied key into the slot as shown, and slide the unit out of the dash board while holding the trim plate. 2. Remove the metal strap attached to the back of the unit. 3. -
Page 4: Wiring Connection
WIRING CONNECTION 1. All connections should be soldered and insulated with electrical tape. 2. Be sure to connect the red power input lead to + 12V power terminal after all the other leads have been properly connected. 3. Run all ground wires to a common ground. ANTENNA RELAY WIRE A blue wire has been provided for relay controlled antenna. -
Page 5: General Operation
GENERAL OPERATION 18 17 • ON/OFF Rotate the inner knob (1) to turn on or off the unit and adjust the sound output level. • BALANCE Rotate the outer knob (2) to adjust sound balance between left channel and right channel. -
Page 6: Radio Operation
RADIO OPERATION • SELECT BAND Press BAND button (5) to change bands as below: • SELECT STATION Press MANU/SKIP buttons (7) or (6) to tune the frequency downward or upward by step. Hold it for fast tuning. • PRESET PROGRAMME MEMORY In radio mode, press MANU/SKIP buttons (7) or (6) to seek the desired... - Page 7 CD OPERATION • DISC PLAY Push a compact disc with the label side facing up into the disc slot (11) and you will hear a click sound. If no sound heard, the CD should be incorrectly inserted into the disc slot. (As figure shows) When there have correspondingly showing on the display, press...
-
Page 8: Specification
SPECIFICATION GENERAL Power Supply Voltage : 12 Volts DC, Negative Ground Dimensions Chassis : 50 mm (H) x 178 mm (W) x 155 mm (D) Tone Controls : ± 10 dB - Bass (at 100 Hz) : ± 10 dB - Treble (at 10 KHz) Maximum Power : 4 x 10 watts... -
Page 9: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition is not on. If the power supply is properly connected to the car accessory terminal, switch the ignition key to “ACC”.
