Summary of Contents for Hotpoint HX901X
-

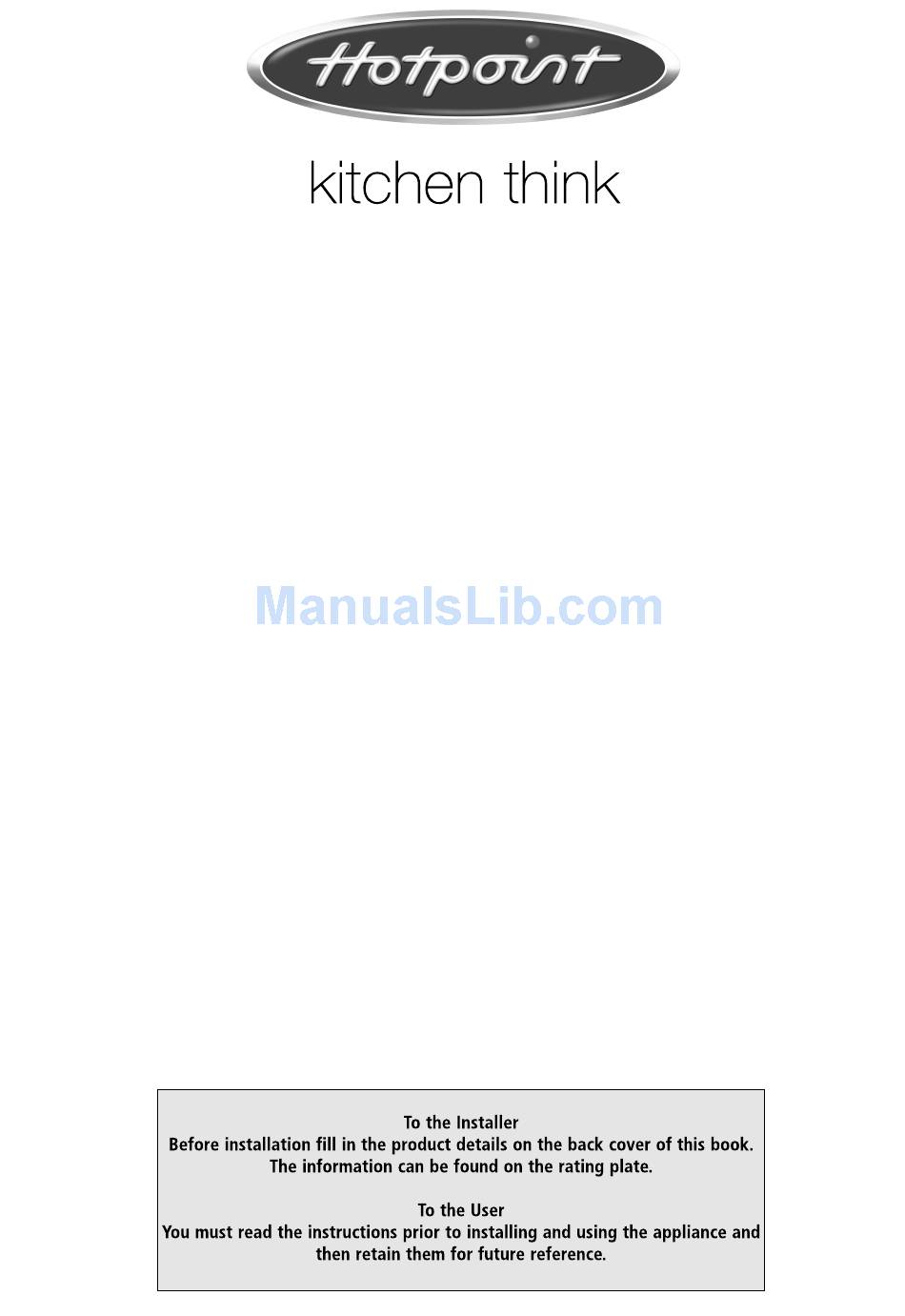

Page 1: Instructions For Installation And Use
Instructions for Installation and Use Electric Hood Model HX901X... -
Page 2: Table Of Contents
CONTENTS RECOMMENDATIONS AND SUGGESTIONS INSTALLATION GETTING TO KNOW YOUR COOKER HOOD CARE AND CLEANING AFTER SALES SERVICE GUARANTEE KEY CONTACTS CE marking certifies that this appliance conforms to the following EEC directives:- Low Voltage Equipment Electromagnetic Compatibility Retention of this Instruction Book This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the appliance. -
Page 3: Recommendations And Suggestions
• After having removed the packaging, check the condition of the appliance, if in any doubt, do not use and contact Hotpoint Service (see Key Contacts, back page). • The minimum safety distance between the hob and the extractor hood is 700 mm. -
Page 4: Installation
INSTALLATION The accessories required for the installation of the hood can be found inside the packaging. The hood is convertible and can therefore be installed for use in either the OUTDOOR VENTING mode or the AIR RECIRCULATION mode. If the hood is used in the OUTDOOR VENTING mode, connect opening ‘N’... -
Page 5: Assembly Instructions
INSTALLATION • This support (see E above) is supplied with the cooker hood (generally in two pieces) and should be fastened to the wall by means of two wall plugs. • In this case, some slots have been made on the back of the hood onto which these supports should be hooked (see above). -
Page 6: Motor Connection
INSTALLATION • There are two types of motor connections where the main difference is the diameter of the steam and odour outlet: - 120mm diameter - 150mm diameter • If the motor connection (N, Fig.1) does not come already fitted, it should be fastened to the top of the hood using screws provided. - Page 7 INSTALLATION • The hood is intended for a fixed permanent installation. For the mains voltage and frequency information, consult the rating plate situated inside the hood. The power supply cable (type H05VV-F 3x0.75mm ) connected to the hoods terminals marked ‘L’ (mains), ‘N’ (neutral) and fastened by means of the cable clamp.
-
Page 8: Getting To Know Your Cooker Hood
GETTING TO KNOW YOUR COOKER HOOD The Controls WARNING: Children should not be allowed to play with the appliance or tamper with the controls. Key 1 Switches the extractor motor on/off. Key 2 Reduces the operating speed. Key 3 Increases the operating speed. Key 4 Will turn the motor off automatically after 12 minutes - When this function is enabled a... -
Page 9: Care And Cleaning
CARE AND CLEANING Before cleaning your cooker hood or carry out any maintenance, switch the omnipolar switch OFF to disconnect the hood from the electricity supply. The filters must be cleaned every 2 months of operation, or more frequently with heavy usage, and can be washed in a dishwasher. - Page 10 CARE AND CLEANING REPLACING THE ACTIVATED CARBON FILTER (RECIRCULATION VERSION) The filter is not washable and must be replaced (see NOTE below). • Remove the metal grease filters. • Remove the saturated activated carbon filters ‘O’ Fig. 15, by turning them clockwise and then removing them from the guide pegs on the outdoor venting assembly.
-
Page 11: Care And Cleaning
CARE AND CLEANING The hood can be provided with different types of lamps: incandescent, halogen and neon lamps. • Incandescent lamps (Fig.6): lamps with E14 cap, 40W power and 230V voltage, generally olive shaped. To replace them, remove the grease filters, unscrew the faulty lamp and screw in the new one, replace the grease filters. - Page 12 NOTES...
- Page 13 NOTES...
-
Page 14: After Sales Service
Hotpoint appliance than us - the manufacturer" As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 15: Guarantee
All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer. -
Page 16: Key Contacts
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in both the appliances and services we offer. Repair Service and Information Desk (Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays) Note: Our operators will require the following information: (Open 8-30 to 5-30 Mon - Fri &...
