Rane AC 23B Datasheet

DATA SHEET
CH 1 LOW
MASTER 2W: INACTIVE
4 6 4 6 4
2 8 2 8 2
0 10 0 10 MIN
LEVEL LEVEL MUTE DELAY
MONO MASTER SUBWOOFER
General Description

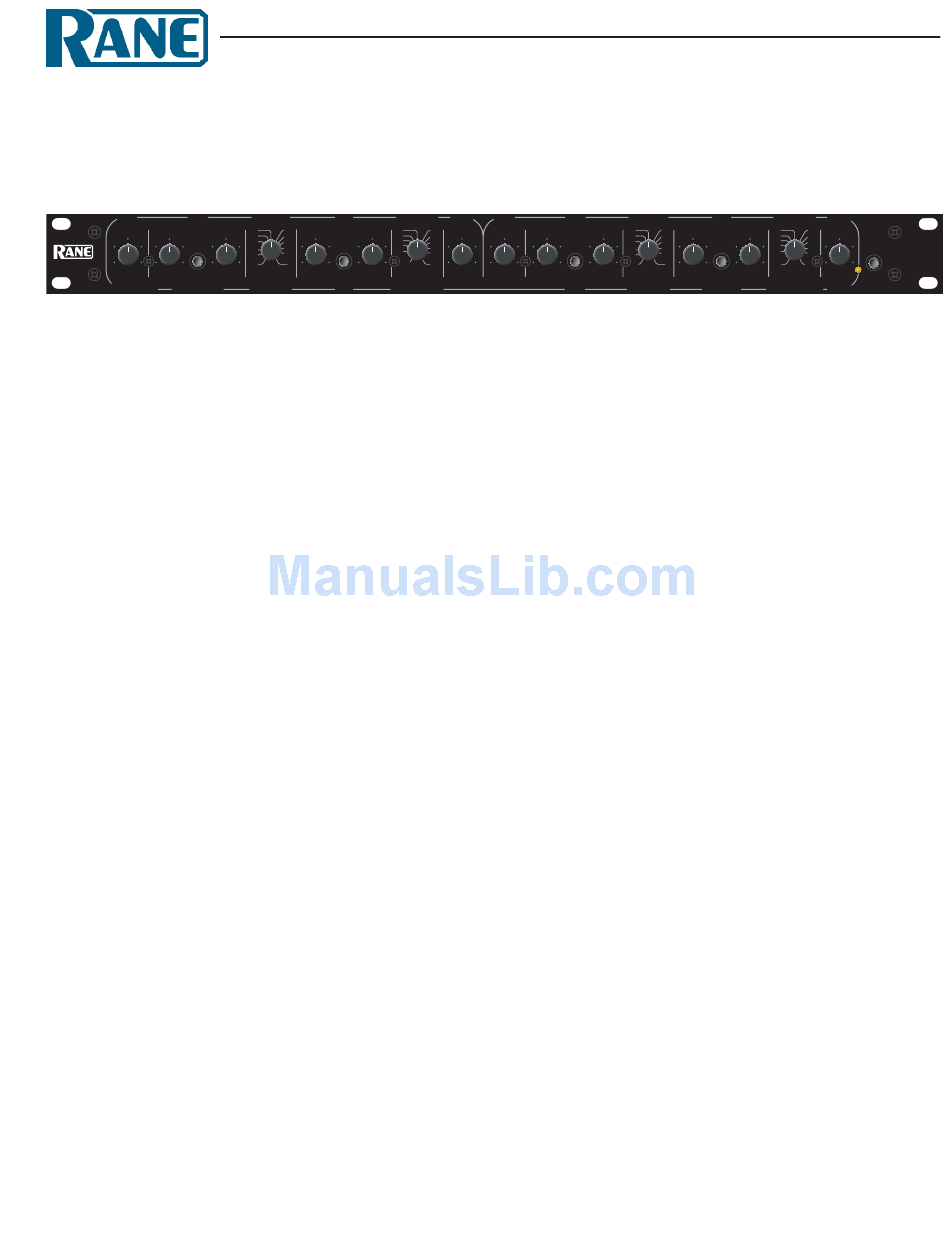

The Rane AC 23B Active Crossover can be configured as
a stereo 2- or 3-way, or a mono 4- or 5-way. It employs 4th-
order Linkwitz-Riley filter alignments to minimize phase
difficulties in the critical crossover region. The AC 23B uses
XLR connectors with active balanced Inputs and Outputs.
Simply put, a Linkwitz-Riley alignment is two cascaded
2nd-order Butterworth filters exhibiting identical phase
characteristics on their low-pass and high-pass outputs. This
characteristic guarantees in-phase outputs at all frequencies.
In-phase outputs are mandatory for proper acoustic summing
of common signals from adjacent drivers in the crossover
region. An added benefit of this topology is steep 24 dB per
octave rolloff slopes. A slope of this magnitude guarantees
drivers designed to produce a specific range of frequencies,
Features
• Stereo 2- or 3-Way, Mono 4- or 5-Way
• Linkwitz-Riley Alignment with 24 dB per Octave Slopes
• Adjustable Delays
• Infrasonic, Ultrasonic and RFI Filters
MID
3W: LOW / MID 3W: MID / HIGH
2W: INACTIVE 2W: LOW / HIGH
2W: LOW
240 400 700
200 600 550
6 4 6 4 6
150 750 475
100 850 350
80 900 250
8 2 8 2 8
70 1k 190
MAX 0 10 MIN MAX
FREQUENCY LEVEL MUTE DELAY FREQUENCY
4W: MID / HIGH
SUB / LOW MID
5W: MID / HIGH-MID
HIGH CH 2 LOW
MASTER 2W: INACTIVE
1.0k
2.0k
4 6 4 6 4 6 4 6
2.8k
4.5k
5.8k
2 8 2 8 2 8 2
7.0k
0 10 0 10 0 10 MIN MAX
LEVEL LEVEL LEVEL MUTE DELAY
MONO 4W OR 5W: INACTIVE
LOW
and no more, will not be driven past their limits, thereby
minimizing distortion and driver fatigue.
To further guarantee the transparent operation of the
AC 23B, adjustable Delay circuits appear on the Low & Mid
Outputs of each Channel to compensate for any physical
misalignment of the drivers. Time correction ensures the
mechanical phase alignment of adjacent drivers will be
acoustically correct, thus maintaining the integrity of the
electrical phase alignment of the crossover's filters.
In 2- or 3-way stereo mode, the low outputs may be
mono'ed by moving an internal jumper. Constant directivity
(CD) horn equalization is possible with an internal modifica-
tion. See the manual for details.
See the RaneNote Linkwitz-Riley Crossovers for more
information.
• Low & Mid Output Muting (3-Way)
• Input & Output Level Controls
• Fully Active Balanced XLR Inputs & Outputs
• UL/CSA/CE and 100/120/230 VAC Remote Power Supplies
ACTIVE CROSSOVER
MID
3W: LOW / MID 3W: MID / HIGH
2W: INACTIVE 2W: LOW / HIGH
2W: LOW
240 400 700
200 600 550
4 6 4 6
150 750 475
100 850 350
80 900 250
8 2 8 2 8
70 1k 190
0 10 MIN MAX
FREQUENCY FREQUENCY LEVEL MUTE DELAY FREQUENCY
4W: INACTIVE 4W: INACTIVE
LOW / MID
5W: HIGH-MID 5W: HIGH-MID / HIGH
AC 23B
HIGH
1.0k
2.0k
4 6
2.8k
4.5k
AC 23B
5.8k
2 8
ACTIVE
CROSSOVER
7k
0 10
LEVEL POWER
HIGH
Data Sheet-1
