Wiring System - Infinity CC-3 Owner's Manual

T O A P
URN FF LL
I
MPORTANT
I
MPORTANT

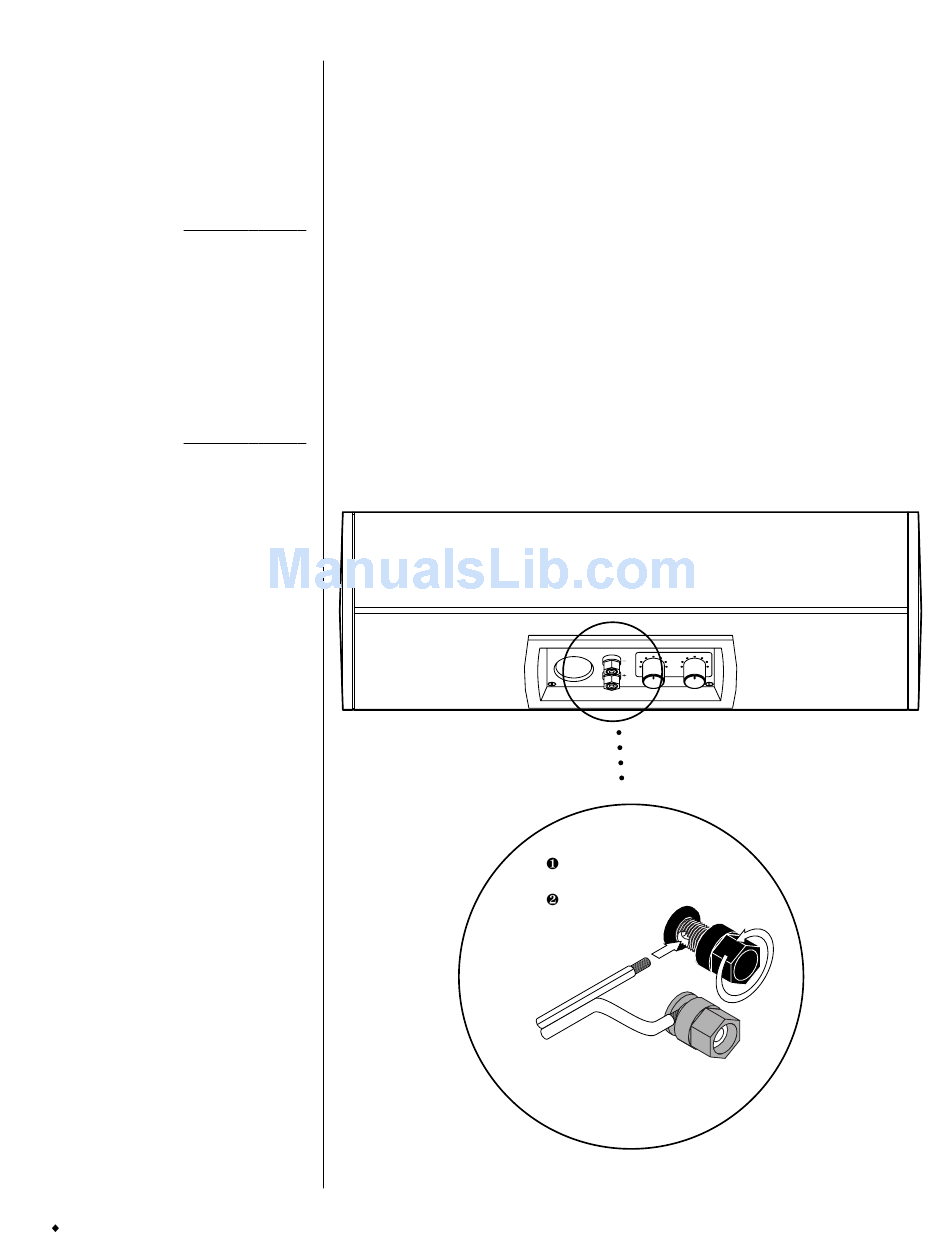

Figure 4. The CC-3 center-channel
speaker features gold-plated
terminals that can be connected in
several different ways; e.g., banana
plugs, spade terminals, and direct
wiring (as shown here).
4 Infinity CC-3 Center-Channel Speaker Owner's Manual
W
IRING
...
OWER
After placing the speaker, you are ready to connect it to your system.
First turn off all audio system power. Use high-quality speaker wire to
make the connections. Consult the owner's manuals (included with your
amplifier, receiver, or television) for connection and operation procedures.
!
When using the CC-3 for center-channel reproduction, set the center-
channel mode (on a Dolby Pro Logic preamplifier or A/V receiver) to
NORMAL. This will route the low frequencies (below 100 Hz) away
from the center-channel speaker to the front left and right speakers.
Observe polarities when making speaker connections, as shown in
Figures 4 (below) and 5 (on the next page). Connect the appropriate
+ terminal on the back of the amplifier, receiver, or television to the
respective + (red) terminal on the CC-3 speaker. Similarly, connect the
– (black) terminals in the same way.
!
Do not reverse polarities (i.e., + to - or - to +) when making connections.
T S
HE YSTEM
CC-3
(rear view)
Loosen Terminal
Insert Bare End
End; Tighten
Terminal
Stripe = –
Speaker
Wire
No Stripe = +
CONNECTING SPEAKERS DIRECTLY TO WIRES
Black = –
Red = +
