Summary of Contents for Infinity CC-3

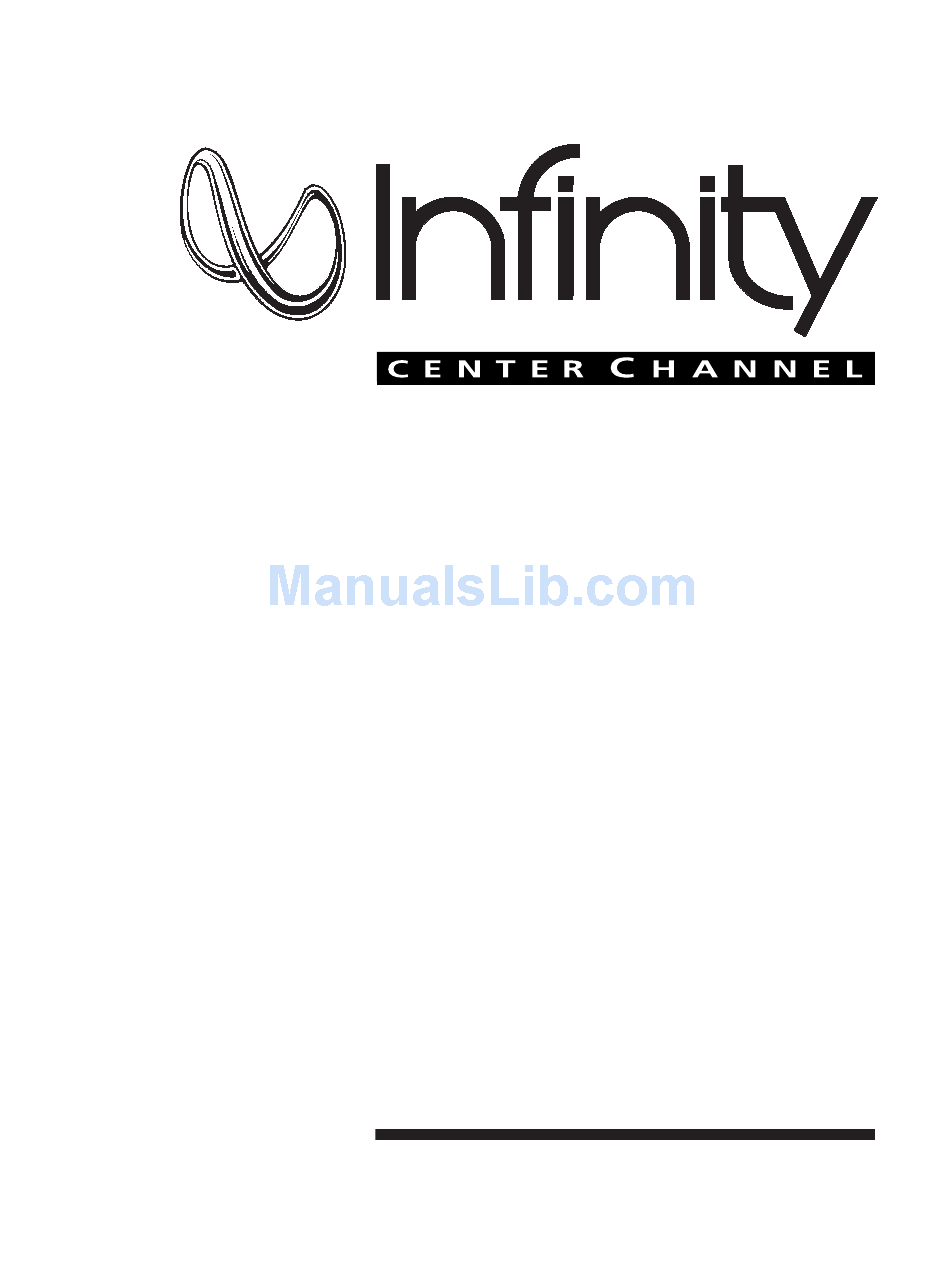

- Page 1 ® Model CC-3 2-Way Center-Channel Speaker Owner’s Manual...
-
Page 2: Unpacking The Speaker

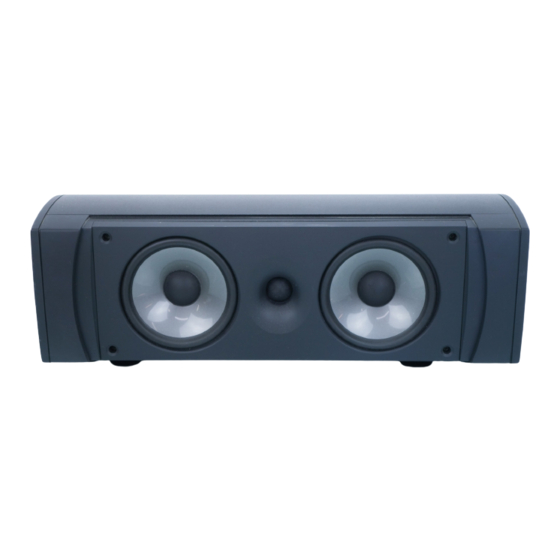

The Infinity CC-3 is a low-profile 2-way speaker system created specifically for center-channel use. It features extended high-frequency response and fine-adjustment voice-matching controls, all designed to help seamlessly integrate the sound of the CC-3 with other speakers in your home theater system. LEXIBLE... -
Page 3: Planning System
For best results, the CC-3 center-channel speaker should be placed horizontally in its stand on top of the television or on a shelf directly above the set (see Placement on the next page). Or, if space is at a premium, an alternate location is below the television on a shelf. -
Page 4: Placement
Figure 2. If the top of the television is not deep enough, place the CC-3 on a shelf directly above it. Or place the speaker on a shelf below the set and tilt the CC-3 up in its stand towards listeners (refer to Figure 3). -
Page 5: Wiring System
Figures 4 (below) and 5 (on the next page). Connect the appropriate + terminal on the back of the amplifier, receiver, or television to the respective + (red) terminal on the CC-3 speaker. Similarly, connect the – (black) terminals in the same way. -
Page 6: Testing Speaker
ATCHING selections and listen to the sound quality of the dialogue reproduced by the CC-3. If you feel the CC-3 is too bright, you can reduce it by adjusting the HIGH control (see Figure 6) from the normal “ ” center °... -
Page 7: Troubleshooting
PEAKER YSTEM The CC-3 cabinet does not require any routine care. Its durable finish is easy to clean with a standard cleaning product should you need to remove fingerprints or dust. DO NOT USE POLISHES. Clean the grille by gentle vacuuming. -
Page 8: Specifications
HIGH: 6 dB, 3 ~ 20 kHz MID: 6 dB, 400 Hz ~ 3 kHz IMENSIONS Width: ⁄ " (470 mm) Height: ⁄ " (165 mm) Depth: ⁄ " (197 mm) Weight: 16 lb (7.3 kg) Infinity CC-3 Center-Channel Speaker Owner’s Manual 7... -
Page 9: Limited Five Year Warranty
(818) 407-0228 (FAX: 818-709-9486) We may direct you to an authorized service center for Infinity product or ask you to send them to us for repair. In either case you will have to present your original dated bill of sale to establish warranty coverage. Do not send your speaker(s) to us without prior authorization from our Customer Service department. - Page 10 ® Infinity Systems, Inc. 20630 Nordhoff Street Chatsworth, CA 91311, USA (818) 407-0228 FAX (818) 709-9486 • www.infinitysystems.com P/N .332154-001...
